| Brand Name: | Gezhi or OEM |
| Model Number: | OM5-patch cord |
| MOQ: | 1 pieces |
| Price: | Nigotiate |
| Delivery Time: | 7 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

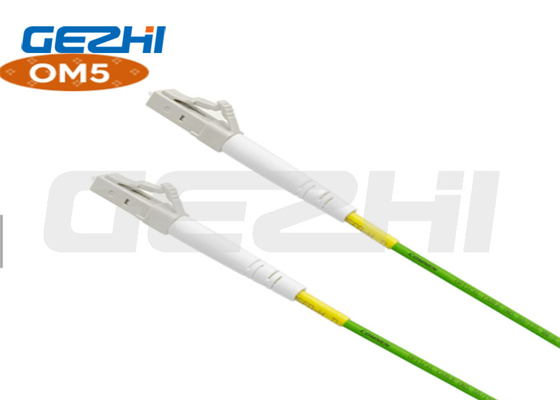

OM5 Multimode Wideband LC/SC/FC/ST patch cord
OM5 Multimode Wideband LC/SC/FC/ST Duplex Customized Fiber Optic Patch Cord Cable
1. OM5 is designed to support at least four low-cost wavelengths in the 850-953 nm range, enabling optimal support of emerging Shortwave Wavelength Division Multiplexing (SWDM) applications that reduce parallel fiber count by at least a factor of four to allow continued use of just two fibers (rather than eight) for transmitting 40 Gb/s and 100 Gb/s and reduced fiber counts for higher speeds.
2. OM5 cabling supports all legacy applications at least as well as OM4, and is fully compatible with OM3 and OM4 cabling. OM5 is the new approved designation for WB MMF.It is compliant with OM4 specifications at 850 nm, but includes additional bandwidth characterization at 953 nm to support extended distances when using SWDM.
3. The expected operation distances are given in the table below. To date, 40/100GbE SWDM has focused
on providing an upgrade path over legacy brownfield OM3/OM4 installations. OM5 may be used when the
expected distance range is > 100 m when using 100G SWDM (4 x 25G optical lanes).
| Fiber Type | OM5 50/125μm | Fiber Count | Duplex (2-fiber) |
| Connector Type | LC/SC/ST/FC | Polish | UPC/PC/APC |
| Cable Lengths | 0.5m,1m,2m,3m … 50m or Custom | Cable Diameter | 2.0 mm |
| Wavelength | 850/953nm | Fiber Grade | G.651 |
| Insertion Loss | ≤0.3dB | Return Loss | ≥20dB |
| Attenuation at 850nm | 2.4 dB/km | Attenuation at 953nm | 1.7 dB/km |
| Jacket Material | PVC or LSZH or OFNP | Jacket Color | Lime Green |
| Environment Operating: | -20°C to 70°C Storage: -40°C to 85°C |
Compliance | RoHS compliant |
| Application |
40/100/400 Gigabit Ethernet, Data Storage, Legacy LANs
|
|
|
| Brand Name: | Gezhi or OEM |
| Model Number: | OM5-patch cord |
| MOQ: | 1 pieces |
| Price: | Nigotiate |
| Packaging Details: | inner box,Carton |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

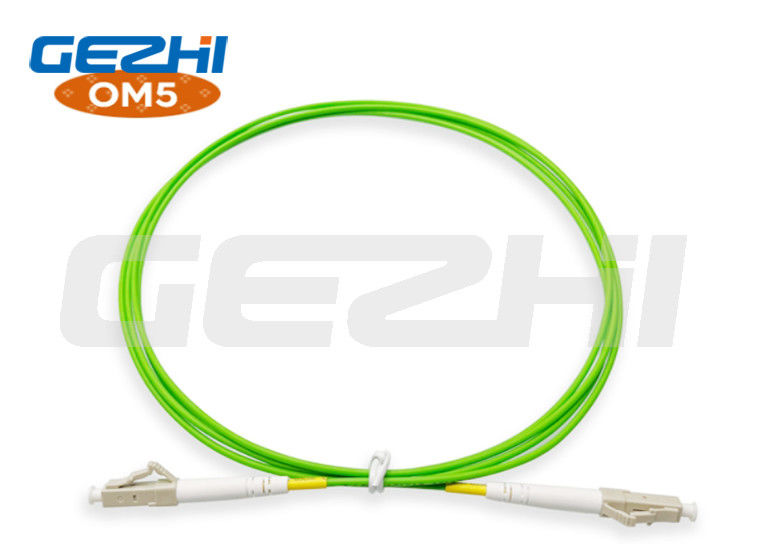

OM5 Multimode Wideband LC/SC/FC/ST patch cord
OM5 Multimode Wideband LC/SC/FC/ST Duplex Customized Fiber Optic Patch Cord Cable
1. OM5 is designed to support at least four low-cost wavelengths in the 850-953 nm range, enabling optimal support of emerging Shortwave Wavelength Division Multiplexing (SWDM) applications that reduce parallel fiber count by at least a factor of four to allow continued use of just two fibers (rather than eight) for transmitting 40 Gb/s and 100 Gb/s and reduced fiber counts for higher speeds.
2. OM5 cabling supports all legacy applications at least as well as OM4, and is fully compatible with OM3 and OM4 cabling. OM5 is the new approved designation for WB MMF.It is compliant with OM4 specifications at 850 nm, but includes additional bandwidth characterization at 953 nm to support extended distances when using SWDM.
3. The expected operation distances are given in the table below. To date, 40/100GbE SWDM has focused
on providing an upgrade path over legacy brownfield OM3/OM4 installations. OM5 may be used when the
expected distance range is > 100 m when using 100G SWDM (4 x 25G optical lanes).
| Fiber Type | OM5 50/125μm | Fiber Count | Duplex (2-fiber) |
| Connector Type | LC/SC/ST/FC | Polish | UPC/PC/APC |
| Cable Lengths | 0.5m,1m,2m,3m … 50m or Custom | Cable Diameter | 2.0 mm |
| Wavelength | 850/953nm | Fiber Grade | G.651 |
| Insertion Loss | ≤0.3dB | Return Loss | ≥20dB |
| Attenuation at 850nm | 2.4 dB/km | Attenuation at 953nm | 1.7 dB/km |
| Jacket Material | PVC or LSZH or OFNP | Jacket Color | Lime Green |
| Environment Operating: | -20°C to 70°C Storage: -40°C to 85°C |
Compliance | RoHS compliant |
| Application |
40/100/400 Gigabit Ethernet, Data Storage, Legacy LANs
|
