| Brand Name: | Gezhi or OEM |
| Model Number: | SX/DX MM patch cord |
| MOQ: | 1 pieces |
| Price: | Nigotiate |
| Delivery Time: | 7 Days |

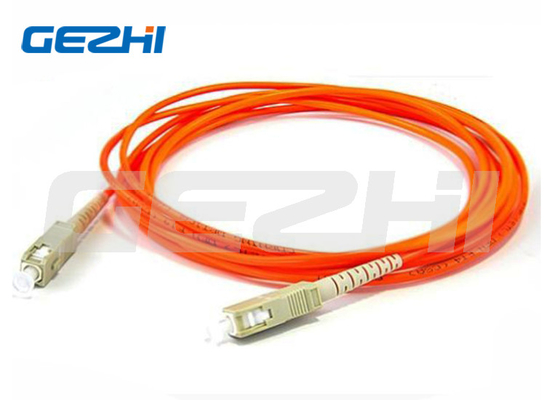

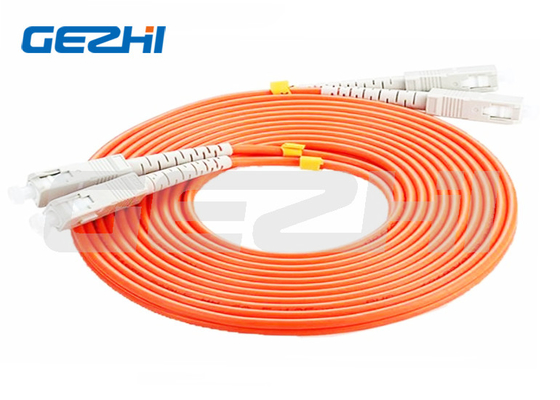

SX/DX MM Orange Patch Cord Cable product description
SX/DX MM Orange Patch Cord Cable optical patch cord orange fiber optic cable
The fiber optic connector (also known as the jumper) means that the connector plug is installed at both ends of the light to realize the optical path active connection; the plug is called the pigtail at one end. Single-mode fiber connector connectors are available in FC, SC, and ST. The end contact methods are PC, UPC, and APC. Jumpers with different connector types or contact faces at both ends are called single-mode transfer jumpers. Guangzhou Tongmai Communication Technology Co., Ltd uses advanced technology and equipment to carry out large-scale production, with excellent product performance and stable and reliable quality.
Multimode fiber patch cords are used to make patch cords from the device to the fiber optic cabling link. There is a thicker protective layer, which is generally used for the connection between the optical transceiver and the terminal box.
SX/DX MM Orange Patch Cord Cable Feature
1. Low insertion loss
2. Good repeatability
3. Large return loss
4. Good inter-plug performance
5. Good temperature stability
SX/DX MM Orange Patch Cord Cable Application
1. Optical fiber communication system
2. Optical fiber access network
3. Optical fiber data transmission
4. Optical fiber catv
5. Local area network (lan)
6. Test equipment
7. Optical fiber sensor use
SX/DX MM Orange Patch Cord Cable parameter ;
| Type | Standard,Master |
| Style | SC |
| Fiber | Multimode |
| 50/125, 62.5/125 (Multimode) OM2&OM1 | |
| 50/125, 10G (Multimode) OM3 | |
| Cable | Simplex, Duplex |
| Φ3.0mm, Φ2.0mm, Φ0.9mm | |
| PVC or LSZH | |
| Polishing Manner | UPC,SPC,APC (8°& 6°) |
| Insertion Loss | ≤ 0.1dB (For Singlemode Master) |
| ≤ 0.25dB (For Singlemode Standard) | |
| ≤ 0.3dB (For Multimode) | |
| Return Loss | UPC ≥ 35dB |
| SPC ≥ 55dB | |
| APC ≥ 60dB (typ.65dB) | |
| Repeatability | ±0.1dB |
| Operating Temperature | -40°C to 85°C |
| Color | Orange |
| Length | 1-100m |
FAQ
Q1:Can I have a sample order? What is your MOQ?
|
|
