| Brand Name: | Gezhi or OEM |
| Model Number: | 9/125 SC/APC |
| MOQ: | 1 pieces |
| Price: | Nigotiate |
| Delivery Time: | 7 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

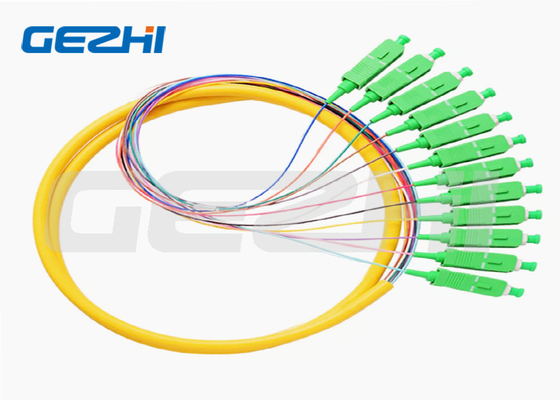

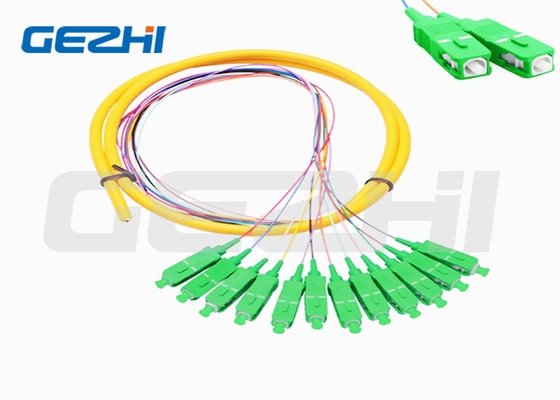

SC/APC Single Mode 12 fiber pigtail fiber Cable description
9/125 Fiber Optic Pigtail 1.2m SC/APC Single Mode 12 fiber pigtail 12 strand fiber optic cable
Fiber pigtails are a great solution for fusion splicing inside of a fiber optic enclosure. The ribbon fan-out fiber pigtails come with a partial outer jacket to help protect the tight buffer fibers from being damaged. If space is a premium, the outer jacket can easily be removed, allowing the pigtails to have a tighter bend radius and take up less space.
These Single mode 12 fiber pigtails with 900 micron buffer are ready for splicing.
Each fiber strand in the kit has a color-coded buffer for easy identification and the colors are industry standard.
In this 12-pack, twelve strands of fiber are terminated on one end with SC connectors.
Connectors are ceramic with physical contact (APC) finish. Each cable comes with test results and a lifetime guarantee.
SC/APC Single Mode 12 fiber pigtail fiber Cable Feature
SC/APC Single Mode 12 fiber pigtail fiber Cable Application:
SC/APC Single Mode 12 fiber pigtail fiber Cable Specifications:
| Parameter: | Single mode | Multi mode(optional) |
| Insertion Loss | ≤0.3dB | ≤0.20dB |
| Return Loss |
≥45 dB (PC) ≥50 dB (UPC) ≥60 dB (APC) |
≥35 dB (PC) ≥45 dB (UPC) |
| Wavelength | 1310nm,1550nm | 850nm,1310nm |
| Repeatability | ≤0.1 | |
| Durability | ≤0.2 dB typical change, 1000 matings | |
| Interchangeability | ≤0.2dB | |
| Cord diameter | 3.0mm | |
| Connector Available | SC,FC,ST,LC,MU,MTRJ | |
| Fiber core available |
4,6,8,12,24 fiber… |
|
|
|
| Brand Name: | Gezhi or OEM |
| Model Number: | 9/125 SC/APC |
| MOQ: | 1 pieces |
| Price: | Nigotiate |
| Packaging Details: | inner box,Carton |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
SC/APC Single Mode 12 fiber pigtail fiber Cable description
9/125 Fiber Optic Pigtail 1.2m SC/APC Single Mode 12 fiber pigtail 12 strand fiber optic cable
Fiber pigtails are a great solution for fusion splicing inside of a fiber optic enclosure. The ribbon fan-out fiber pigtails come with a partial outer jacket to help protect the tight buffer fibers from being damaged. If space is a premium, the outer jacket can easily be removed, allowing the pigtails to have a tighter bend radius and take up less space.
These Single mode 12 fiber pigtails with 900 micron buffer are ready for splicing.
Each fiber strand in the kit has a color-coded buffer for easy identification and the colors are industry standard.
In this 12-pack, twelve strands of fiber are terminated on one end with SC connectors.
Connectors are ceramic with physical contact (APC) finish. Each cable comes with test results and a lifetime guarantee.
SC/APC Single Mode 12 fiber pigtail fiber Cable Feature
SC/APC Single Mode 12 fiber pigtail fiber Cable Application:
SC/APC Single Mode 12 fiber pigtail fiber Cable Specifications:
| Parameter: | Single mode | Multi mode(optional) |
| Insertion Loss | ≤0.3dB | ≤0.20dB |
| Return Loss |
≥45 dB (PC) ≥50 dB (UPC) ≥60 dB (APC) |
≥35 dB (PC) ≥45 dB (UPC) |
| Wavelength | 1310nm,1550nm | 850nm,1310nm |
| Repeatability | ≤0.1 | |
| Durability | ≤0.2 dB typical change, 1000 matings | |
| Interchangeability | ≤0.2dB | |
| Cord diameter | 3.0mm | |
| Connector Available | SC,FC,ST,LC,MU,MTRJ | |
| Fiber core available |
4,6,8,12,24 fiber… |
|
