| Brand Name: | Gezhi or OEM |
| Model Number: | SC UPC-OM2 |
| MOQ: | 1 pieces |
| Price: | Nigotiate |
| Delivery Time: | 7 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

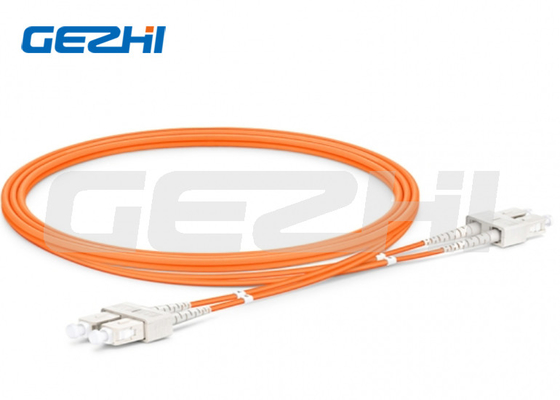

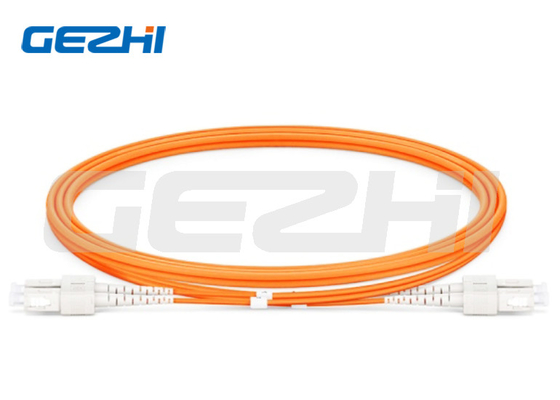

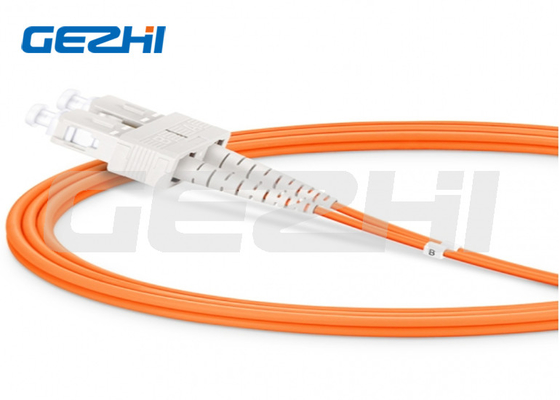

SC UPC Duplex OM2 Multimode duplex fiber patch cord Description
SC UPC Duplex OM2 Multimode duplex fiber patch cord
The 50/125um OM2 multimode bend insensitive fiber optic cable is less attenuation whenbent or twisted compared with traditional optical fiber cables and this will make theinstallation and maintenance of the fiber optic cables more efficient. lt can also save morespace for your high density cabling in data centers, enterprise networks, telecom room,server farms, cloud storage networks, and any places fiber patch cables are needed.
This 50/125 0M2 multimode fiber optic cable is ideal for connecting 1000BASE-SX, SFPtransceivers etc. for gigabit Ethernet and fiber channel applications.
SC UPC Duplex OM2 Multimode duplex fiber patch cord Feature
Bend Insensitive Fiber & 7.5mm Min. Bend Radius
Grade A Precision Zirconia Ferrules Ensure Consistent Low Loss
Flexible and Abrasion-resistant PVC (Riser) Jacket, Durable for Indoor Use
Backward Compatible with 62.5/125 Fiber Cables
Designed for 1000BASE-SX Networks Applications
Compliant to IEC-61754 and TIA-604 (FOCIS)
| Connector Type | SC UPC to SC UPC | Fiber Grade | Bend Insensitive |
| Fiber Count | Duplex | Fiber Mode | OM2 50/125μm |
| Wavelength | 850/1300nm | 1G Ethernet Distance | 550m at 850nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥30dB |
| Min. Bend Radius (Fiber Core) | 7.5mm | Min. Bend Radius (Fiber Cable) | 20D/10D (Dynamic/Static) |
| Attenuation at 850nm | 3.0 dB/km | Attenuation at 1300nm | 1.0 dB/km |
| Cable Jacket | PVC | Cable Diameter | 2.0mm |
| Polarity | A(Tx) to B(Rx) | Operating Temperature | -20~70°C |
FAQ
Q1:Can I have a sample order? What is your MOQ?
|
|
| Brand Name: | Gezhi or OEM |
| Model Number: | SC UPC-OM2 |
| MOQ: | 1 pieces |
| Price: | Nigotiate |
| Packaging Details: | inner box,Carton |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
SC UPC Duplex OM2 Multimode duplex fiber patch cord Description
SC UPC Duplex OM2 Multimode duplex fiber patch cord
The 50/125um OM2 multimode bend insensitive fiber optic cable is less attenuation whenbent or twisted compared with traditional optical fiber cables and this will make theinstallation and maintenance of the fiber optic cables more efficient. lt can also save morespace for your high density cabling in data centers, enterprise networks, telecom room,server farms, cloud storage networks, and any places fiber patch cables are needed.
This 50/125 0M2 multimode fiber optic cable is ideal for connecting 1000BASE-SX, SFPtransceivers etc. for gigabit Ethernet and fiber channel applications.
SC UPC Duplex OM2 Multimode duplex fiber patch cord Feature
Bend Insensitive Fiber & 7.5mm Min. Bend Radius
Grade A Precision Zirconia Ferrules Ensure Consistent Low Loss
Flexible and Abrasion-resistant PVC (Riser) Jacket, Durable for Indoor Use
Backward Compatible with 62.5/125 Fiber Cables
Designed for 1000BASE-SX Networks Applications
Compliant to IEC-61754 and TIA-604 (FOCIS)
| Connector Type | SC UPC to SC UPC | Fiber Grade | Bend Insensitive |
| Fiber Count | Duplex | Fiber Mode | OM2 50/125μm |
| Wavelength | 850/1300nm | 1G Ethernet Distance | 550m at 850nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥30dB |
| Min. Bend Radius (Fiber Core) | 7.5mm | Min. Bend Radius (Fiber Cable) | 20D/10D (Dynamic/Static) |
| Attenuation at 850nm | 3.0 dB/km | Attenuation at 1300nm | 1.0 dB/km |
| Cable Jacket | PVC | Cable Diameter | 2.0mm |
| Polarity | A(Tx) to B(Rx) | Operating Temperature | -20~70°C |
FAQ
Q1:Can I have a sample order? What is your MOQ?
