| Brand Name: | Gezhi or OEM |
| Model Number: | 48-2X4-SMF |
| MOQ: | 1 pieces |
| Price: | Negotiable |
| Delivery Time: | 7 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

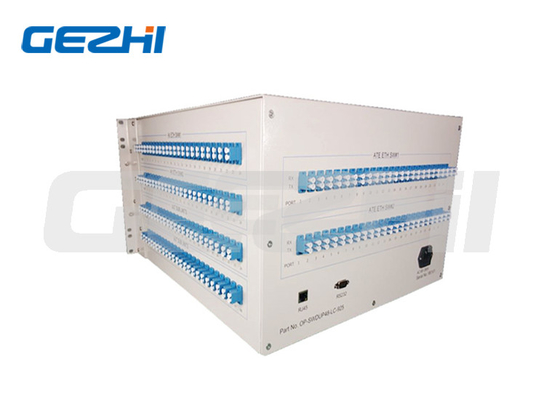

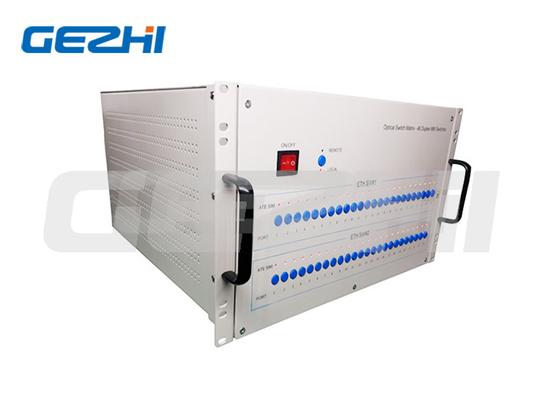

48*2x4 Optical Switch Matrix Fiber Optical Switches
In the rapidly evolving realm of optical networking, the demand for flexible and reliable devices is constantly escalating. Taking center stage in this sector is the 48*2x4 Optical Switch Matrix presented by GEZHI Photonics, a leading factory known for its expertise in optical switch matrix equipment.
48*2x4 Optical Switch Matrix Features
LED display panel. Visual display, Convenient operation
SerialNet, High Reliability, High Stability
RS232 Control and RJ45 Ethernet Remote Management
Channel and time interval of automatic scanning can be set up
Transparent transmission signal. High stability and re
liability
Applications
Automatic Measurement
FITL
Cable Monitoring and Maintaining system
Optical Network Remote Monitoring
Optical Matrix Switch Technical Index
| Parameter | Unit | 48*2x4 |
| Wavelength Range | nm | 1260~1650 or customized |
| Testing Wavelength | nm | 1310/1550 or customized |
| Insertion Loss (Max) | dB | ≤1.5 |
| Return Loss | dB | SM ≥ 50 |
| Crosstalk | dB | ≤-55 |
| PDL | dB | ≤0.05 |
| WDL | dB | ≤0.25 |
| TDL | dB | ≤0.20 |
| Repeatability | dB | ≤0.02 |
| Switching Time | ms | ≤10 (Adjacent Channel) |
| Optical Power | mW | ≤500 |
| Fiber Type | um | 9/125 |
| Connector | / | FC, SC, LC, ST, SMA or customized |
| Monitor Port | / | RJ45 & RS232 or customized |
| Working Power Supply (Plug Tyep) | V | AC:220V (50/60Hz) or DC:36V~72V |
| Operating Temperature | ℃ | -10~+60 |
| Storage Temperature | ℃ | -40~+85 |
| Rack mount Dimensions | mm | 6U: 483x500x267mm |
Video
|
|
