| Brand Name: | GEZHI or OEM |
| Model Number: | FSW-1x8T |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union |

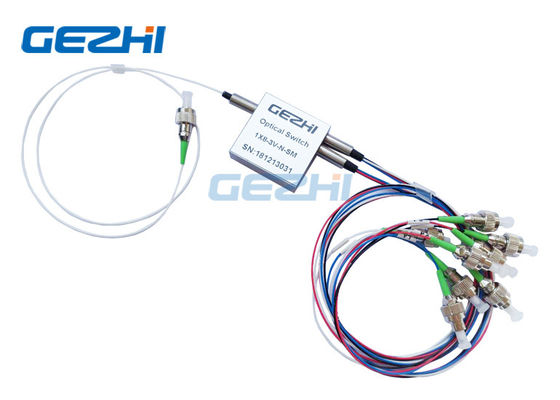

Passive 1×8 fiber optic switch 1742nm wavelength Optical Switch
GEZHI ’ Passive 1×8 fiber optic switch 1742nm wavelength Optical Switch support wavelength at 1742nm wavelength, Its mini type with size 35x35x9mm and with FC/APC pigtailed. it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance. The Passive 1×8 fiber optic switch 1742nm wavelength Optical Switch are widely used for Transmitter and Receiver Protection,Protection, Optical Network,Network Test System and Instrumentations.
|
Features |
Applications |
|
|
Specification
| 1×8 T Type Optical Switch | Unit | Typical |
| Operation Wavelength | nm | 1742nm |
| Insertion Loss | dB | <1.5 |
| Polarization Dependent Loss | dB | <0.1 |
| Switching Time | ms | 15 |
| Repeatability | dB | <±0.02 |
| Durability | Cycles | >10 Million |
| Switching Type | Latching / Non-Latching | |
| Optical Power Handling | mW | <500mW |
| Operating Voltage | VDC | 3V or 5V |
| Operating Temperature | ℃ | -20~+70 |
| Storage Temperature | ℃ | -40~+85 |
| Package Dimension | mm | 35L x 35W x 9H |
Note: 1. Customization is available.
2. Specified without connector, and add an additional 0.2dB loss per connector.
Ordering Information
GZ-FSW-1x8T-x-xx-x-x-xx-xx-x
| X | XX | X | X | XX | XX | X |
| Mode | Wavelength | Voltage Type | Control Model | Fiber Diameter | Fiber Length | Connector |
|
S=SM 9/125 M5=MM 50/125 M6=MM 62.5/125 |
85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm 1742=1742nm X=Others |
3=3V 5=5V |
L=Latching N=Non- Latching |
25=250um 90=900um |
05=0.5m 10=1.0m X=Others |
0=None 1=FC/PC 2=FC/APC 3=SC/PC 4=SC/APC 5=ST/PC 6=ST/APC 7=LC/PC 8=LC/APC X=Others |
Pins
Dimension
Video
|
|
