| Brand Name: | GEZHI or OEM |
| Model Number: | 1x2 Opto-Mechanical Optical Switches |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union |

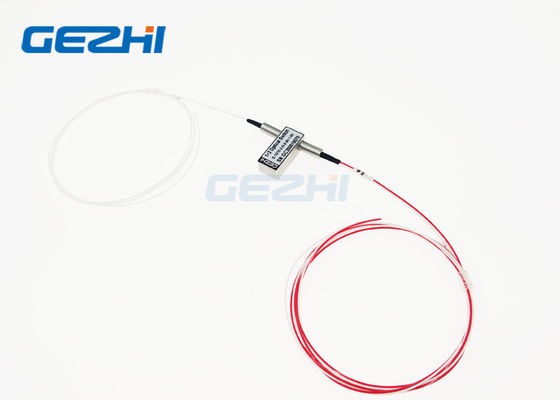

1x2 Opto-Mechanical Fiber Optical Switches Broad Wavelength Optical Switch
GEZHI 1x2 Opto-Mechanical Fiber Optical Switches with broad wavelength 1260~1650nm. It with SC/APC green connector .The single Latching 1x2 optical switch is a standard 1x2 configuration with 3 fibers and 2 states. GEZHI 1x2 Opto-Mechanical Fiber Optical Switches connects optical channels by redirecting an incoming optical signal into a selected output fiber. This is achieved using mechanical configurations and activated via an electrical control signal.
GEZHI also can supply MEMS optical switch or other customized optical switch. Welcome to inquiry.
Features
Epoxy-free on optical path
Applications
Wavelength router
Research and development
Reconfigurable add/drop multiplexers
Transmission equipment protection
Optical network monitoring
Optical network protection and restoration
Specification
|
Parameters |
GZ-FSW-1×2 | ||
| Wavelength Range | nm | 850±40 / 1300±40 | 1260~1650 |
| Operating Wavelength | nm | 850/1300 | 1310/1490/1550/1625/1650 |
| Insertion Loss | dB | Typ:0.8 Max:1.2 | Typ:0.5 Max:1.0 |
| Return Loss | dB | MM≥30 SM≥50 | |
| Crosstalk | dB | MM≥35 SM≥55 | |
| PDL | dB | ≤0.05 | |
| WDL | dB | ≤0.25 | |
| TDL | dB | ≤0.25 | |
| Repeatability | dB | ≤±0.02 | |
|
Power Supply |
V | 3.0 or 5.0 | |
| Lifetime | Time | ≥107 | |
| Switch Time | ms | ≤8 | |
| Transmission Power | mW | ≤500 | |
| Operating Temperature | ℃ | -20~+80 | |
| Storage Temperature | ℃ | -40~+85 | |
| Weight | g | 16 | |
| Dimension | mm | (L)27×(W)12.0×(H)8.2 | |
Note: 1. Customization is available.
2. Specified without connector, and add an additional 0.2dB loss per connector.
Optical Route
| Status One | Status Two |
|
|
|
Pins
| Type | Pin | Electric Drive | Status sensor | ||||||
| 1×2 | channel | 1 | 5 | 6 | 10 | 2-3 | 3-4 | 7-8 | 8-9 |
| Latching | P1-P2 | -- | -- | GND | V+ | Close | Open | Open | Close |
| P1-P3 | V+ | GND | -- | -- | Open | Close | Close | Open | |
| Non-latching | P1-P2 | -- | -- | -- | -- | Close | Open | Open | Close |
| P1-P3 | V+ | -- | -- | GND | Open | Close | Close | Open | |
Dimension
1x2 Optical Switch Order Information
GZ-FSW-1x2-x-xx-x-x-x-xx-x-xx
| Mode | Wavelength | Voltage Type | Control Model | Fiber Type | Fiber Diameter | Fiber Length | Connector |
|
S=SM M=MM |
85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm X=Others |
3=3V 5=5V |
L=Latching N=Non- Latching |
5=50/125 6=62.5/125 9=9/125 X=Others |
25=250um 90=900um 20=2.0mm 30=3.0mm X=Others |
1=1m 2=1.5m X=Others |
00=None FP=FC/PC FA=FC/APC SP=SC/PC SA=SC/APC STP=ST/PC STA=ST/APC LP=LC/PC LA=LP/APC X=Others |
Video
|
|
