| Brand Name: | GEZHI or OEM |
| Model Number: | CWDM2D51A |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

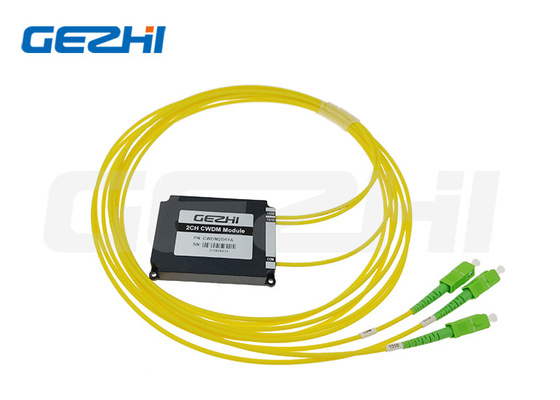

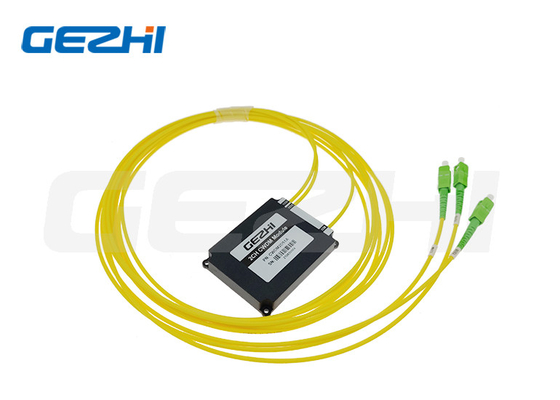

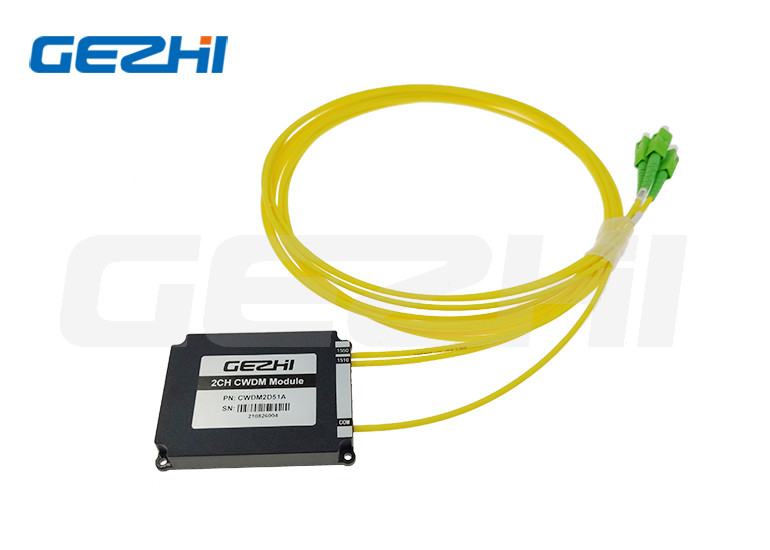

1510nm 1550nm 2CH CWDM Multiplexer Module ABS box 100X80X10mm
Factory Show
Gezhi Photonics Co., Ltd, established in 2014, located in Shenzhen China, is a professional manufacturer engaged in the research, development, production, sale and service of Fiber optic products and network products. Our main products: FTTH products and Network products.
Quality and standards are the foundation of Angnet, we have passed many quality system verifications, like ISO9001 and RoHS. Dedicated to strict quality control and thoughtful customer service, Our products are selling well in all cities and provinces around China, and overseas.
The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service. Gezhi Photonics Co., Ltd is looking forward to cooperate with you.
Features&Applications
| Features | Applications |
| Low Insertion Loss | Line Monitoring |
| High Stability and reliability | WDM Network |
| Wide pass band | Telecommunication |
| Epoxy-free on Optical Path | Cellular Application |
| High Channel Isolation | Fiber Optical amplifier |
| Acess Network | |
|
|
Performance
| Parameter | Specification | |
| Channel Wavelength (nm) | 1270~1610 or 1271~1611 | |
| Channel Spacing(nm) | 20 | |
| Channel Passband (@-0.5dB bandwidth (nm) | >13 | |
| Pass Channel Insertion Loss (dB) | ≤0.6 | |
| Reflection Channel Insertion Loss (dB) | ≤0.4 | |
| Channel Ripple (dB) | <0.3 | |
| Pass Isolation (dB) | Adjacent | ≥30 |
| Non-adjacent | ≥40 | |
| Reflection channel isolation(dB) | >15 | |
| Inertion Loss Temperature Sensitivity (dB/℃) | <0.005 | |
| Wavelength Temperature Shifting (nm/℃) | <0.002 | |
| Polarization Dependent Loss (dB) | <0.1 | |
FAQ
Q1: Are your trading company or manufacture ?
A: We are factory verified by SGS
Q2: Do you provide OEM service ?
A: Yes, we can print your logo or label on the products or on the box.
Q3: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.
Q4: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q5: What is your delivery time ?
A: Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q6: What's your payment terms ?
A: We accept T/T, Western Union, Money Gram, Paypal.
For samples: 100% payment. Formal order: 30% as deposit, 70% balance payment before shipment.
|
|
