| Brand Name: | GEZHI or OEM |
| Model Number: | 1x18-CWDM-S |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |

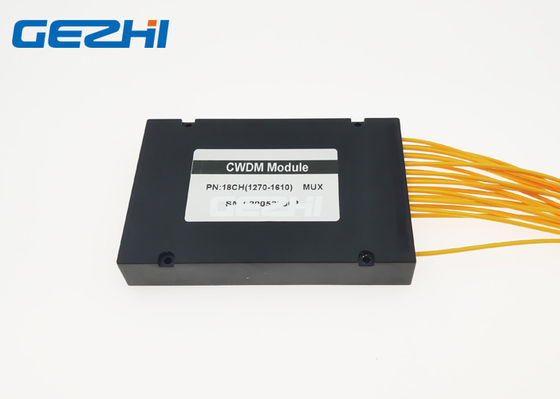

18CH CWDM Mux Demux Module 1270~1610nm low loss BIDI CWDM
GEZHI 18CH low loss BIDI CWDM based on dielectric thin-film filter technology which designed for integration in low cost access and metro networks. GEZHI 18CH CWDM is an optical multiplexer that can multiplex up to 18 CWDM sources on a single optical fiber with only 3.5dB link insertion loss. Its package by 120*80*18mm ABS box with 900um loose tube, 1meter, COM-SC/UPC connector, other output with LC/UPC connector. The 18CH CWDM filter has high channel isolation and can therefore be used in a bi-directional system. The module can be used as a multiplexer or de-multiplexer and uses a single slot in a frame or can be used, standalone, in an N-box.
Features
3.5dB link insertion loss
18 channels per fiber
Bi-directional
Can be used as multiplexer or de-multiplexer
Can be used standalone in an N-box
Applications
Dark fiber networks
Broadcast contribution networks
Optical video networks
Event production
CWDM networks
Specification
|
Parameter |
Unit |
18CH CWDM | ||
| Mux | Demux | |||
| Channel Wavelength | nm |
1270~1610nm |
||
|
Center wavelength |
nm | ±0.5 | ||
| Channel Spacing | nm | 20 | ||
|
Channel Passband |
nm | >14 | ||
| Max Insertion Loss | dB | <5.5 or <3.5 with Skip | <5.5 or <3.5 with Skip | |
| Channel Ripple | dB | 0.3 | ||
|
Isolation |
Adjacent | dB | >30 | |
| Non-adjacent | dB | >40 | ||
|
Inertion Loss Temperature |
dB/℃ |
<0.005 |
||
|
Wavelength Temperature |
nm/ ℃ |
<0.002 | ||
|
Polarization Dependent |
dB | <0.1 | ||
|
Polarization Mode |
dB | <0.1 | ||
| Directivity | dB | >50 | ||
| Return Loss | dB | >45 | ||
| Maximum Power Handling | mW | 300 | ||
| Opterating Temperature | ℃ | -5~+75 | ||
| Storage Temperature | ℃ | -40~85 | ||
| Package dimension | mm | L120x80x18 | ||
Note: 1. Customization is available.
2. Specified with connector
Ordering Information
| CWDM | - | XXX | - | XX | - | XX | - | XX | - | XX | - | XX |
| Number of Channels | Module type | Cable type | Fiber length | Input connector |
Output connector |
|||||||
| CWDM | 01=1Channel 02=2 Channel 03=3 Channel 04=4 Channel ...... 16=16Channel 17=17Channel 18=18Channel |
0=100x80x10 mm 1=142x102x14.5 mm 2=LGX Box 3=19″1U Rack X=Others |
00=none 09=900um Loose tube 20=2.0mm 30=3.0mm |
05=0.5m 10=1.0m 15=1.5m 30=3.0m 40=4.0m 50=5.0m ...... |
0=none LP=LC/UPC LA=LC/APC SP=SC/UPC SA=SC/APC FP=FC/UPC FA=FC/APC X=Customized |
0=none |
Filter Cascading

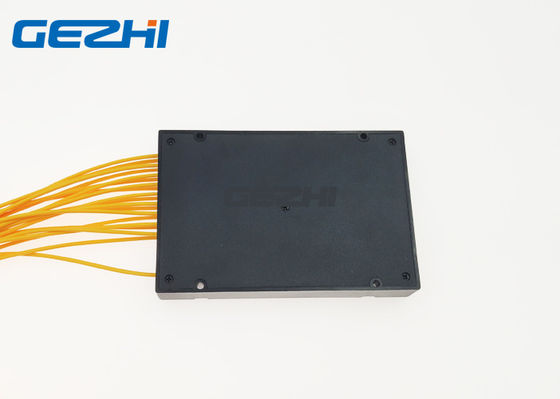

18CH BIDI CWDM package

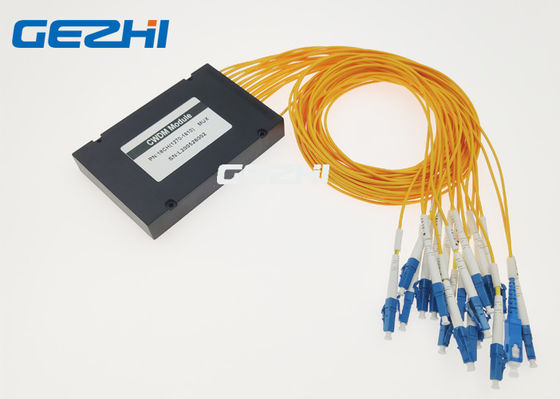

18CH BIDI CWDM module
|
|
