| Brand Name: | GEZHI or OEM |
| Model Number: | 8CH-1471 |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |
1471~1611nm 1x8 CWDM Mux Demux splitter module LC/PC pigtailed
GEZHI 1x8 CWDM Mux Demux splitter module is ABS box package with LC/PC pigtailed type. The wavelenght of 1x8 CWDM Mux Demux Splitter Module is 1471~1611nm also with a Upgrade port for for Future Bandwidth Increasing. The CWDM Mux Demux Express port makes it possible to increase the network capacity by connecting it to the line port of another DWDM MUX/DEMUX supporting different wavelengths, without the need of installing or leasing additional fibers.
Features
high channel isolation
Low insertion loss
Completely passive, no power& no cooling required
Protocal and rate transparent for applications up to 10Gbps
Applications
WDM network
Fiber optical amplifier
Access Network
Line monitoring
Telecommunication
Specification
| Parameter | 8+1CH Mux or Demux | |
| Center Wavelength (nm) | ITU, ITU+1 | |
| Passband (nm) | ITU±7.5 | |
| Operating Wavelength (nm) | 1471~1611nm | |
| Channel Space (nm) | 20 | |
| Fiber Type | SMF-28e or customer specified | |
| IL (dB) | <2.5dB | |
| Isolation(dB) | Adjacent Channel | 30 |
| Non-Adjacent Channel | 45 | |
| PDL (dB) | 0.2 | |
| PMD (ps) | 0.1 | |
| Return Loss (dB) | 45 | |
| Directivity (dB) | 50 | |
| Maximum Optical Power (mw) | 500 | |
| Operating Temperature (℃) | -10~+70 | |
| Storage Temperature (℃) | -40～85 | |
| Connector | LC/UPC connetor | |
| BOX Package (mm) | ABS Box | |
1x8 CWDM Filter cascading
1x8 CWDM, 1471~1611nm, ABS box:100x80x10mm, 2mm cable, 1meter, LC/UPC

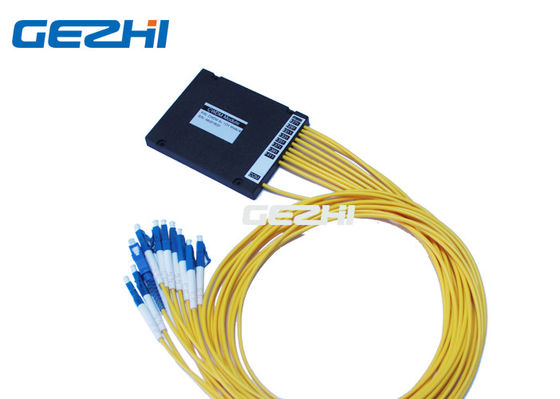

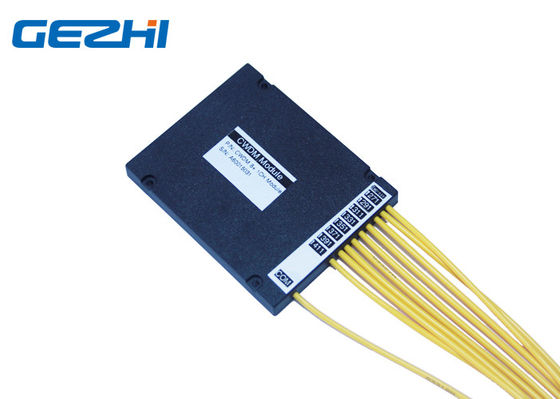

8+1CH CWDM Mux Demux splitter in ABS box
|
|
