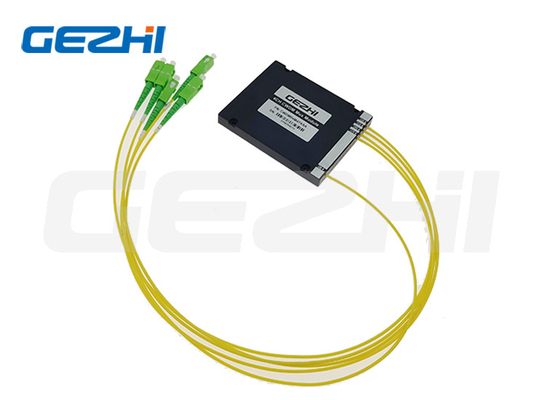

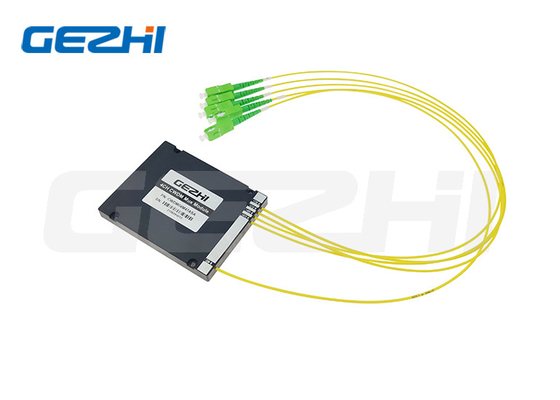

High Stability and Reliability 4CH CWDM MUX Module,1470/1490/1510/1530nm CWDM ABS box
Product Description
The 4CH CWDM Module of GEZHI Photonics is based on TFF (thin film filter),which has a variety of package sized and wavlength options; It is suitable for long-distance, large-capacity trunk network, or ultra-large capacity MAN core nodes, Its is widely used in 5G telecommunications, MAN, backbone networks and data centers etc.
GEZHI Photoncis a full range of WDM multiplexers. Its compliant with RoHs, Telcordia GR-1209 and GR-1221.
Features
1.Low Insertion Loss
2.High Channel Isolation
3.High Stability and Reliability
Application
1.WDM System
2.5G Telecommunications
3.Data Center
Specification
|
Parameter
|
Unit
|
CWDM Mux or Demux
|
|
Channel Number
|
-
|
4CH
|
|
Channel Spacin
|
nm
|
20 |
|
Channel Central Wavelength
|
nm
|
1470/1490/1510/1530 |
|
Channel Passband
|
nm
|
λ@ITU ±7.5nm |
|
Insertion Loss @PB
|
dB | <1.5 |
|
Isolation @Adjacent Channel
|
dB | >30 |
|
Isolation @Non-adjacent Channel
|
dB | >40 |
|
Passband Ripple
|
dB
|
<0.3 |
|
Polarization Dependent Loss
|
dB
|
<0.10 |
|
Polarization Mode Dispersion
|
ps
|
<0.15 |
|
Directivity & Return Loss
|
dB
|
>50 |
|
Power Handling
|
mW
|
<500 |
|
Fiber Type
|
- | SMF-28e or Customized |
|
Connector
|
- | SC/APC |
|
Operating Temperature
|
°C | -10~+70 |
|
Storage Temperature
|
°C | -40~+85 |
|
Package Dimension
|
mm
|
ABS: 100*80*10
|
Drawing
Ordering Information
|
CWDM
|
Number of Channels
|
Configuration
|
Module type
|
type
|
Fiber length
|
connector
|
|
CWDM
|
01=1CH
02=2CH
03=3CH
04=4CH
......
16=16CH
18=18CH
|
M=Mux
D=Demux
A=Mux+ Demux
|
A1=ABS box 100x80x10mm
A2=ABS box 120x80x18mm
A3=ABS box 140x115x15mm
L1=LGX 129*29*130mm
L2=LGX insert in 2slot Rack
L4=LGX insert in 4slot Rack
R1=19" 1 U Rack
R2=2slot 19″1U Rack
R4=4slot 19″1U Rack
X=Customized
|
09=900um
loose tube
20=2.0mm
30=3.0mm
|
05=0.5 m
10=1.0 m
15=1.5 m
S=Specify
|
00=none
LP=LC/UPC
LA=LC/APC
SP=SC/UPC
SA=SC/APC
FP=FC/UPC
FA=FC/APC
S=Specify
|
FAQ
