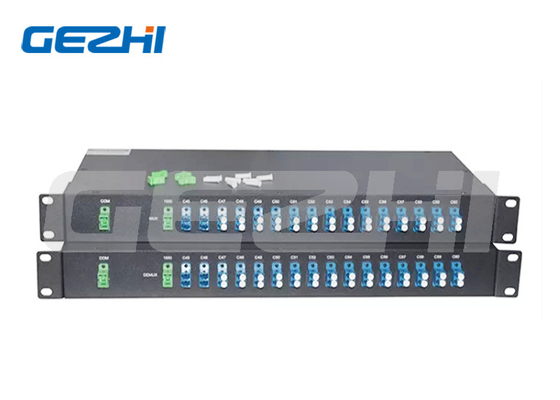

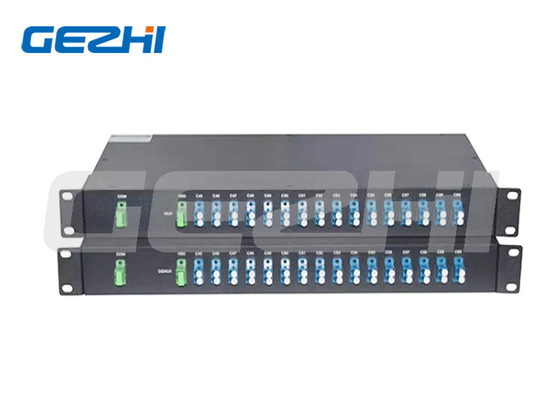

16 Channels C21-C36 Dual Fiber FMU 1U Rack Mount, LC/UPC Expansion Port DWDM Mux Demux

Name: 16 Channels C21-C36 Dual Fiber FMU 1U Rack Mount, LC/UPC Expansion Port DWDM Mux Demux
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: GEZHI-DWDM
Price: Negotiable USD
Availability: InStock

Brand Name:	Gezhi or OEM
Model Number:	GEZHI-DWDM
MOQ:	1 pieces
Price:	USD >= 1 pieces $280
Delivery Time:	7 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Wavelength:

C21-C58

Fiber Type:

Dual Fiber,Single Mode

Warranty:

3 Year

Channel:

Connector:

SC FC LC APC UPC PC

Name:

16ch DWDM Module

Network:

Wireless Lan, Wired LAN, Ip, POE, GPRS, Wifi, 4g

Packaging Details:

inner box,Carton

Supply Ability:

1000 Piece/Pieces per Day

Highlight:

1U Rack Mount DWDM Mux Demux

16 Channels DWDM Mux Demux

Product Description

Product description

16 Channels C21-C36 Dual Fiber FMU 1U Rack Mount, LC/UPC Expansion Port DWDM Mux Demux

GEZHI DWDM Mux Demux in Optical Transport Networking System utilizes thin film coating technology. it does not require temperature controller and there is no electrical power consumption.

GEZHI Photonics provide full range of DWDM Mux Demux with customized Channel, Wavelength, Power, Fiber type and connector type. Also Low insertion type is available.

Feature

DWDM MUX is based on the use of the wavelength ITU grid High Channel Isolation

Low Insertion Loss Optical Path Epoxy Free Telcordia 1221 Compliant Ultra Low TDL

PRODUCT SPECIFICATIONS

Parameter			Unit	Value
Central Wavelength			nm	ITU-T Grid
Channel Spacing			nm	0.8 (100GHz)			1.6 (200GHz)
Number of Channels			----	8	16		8
Channel Passband		Min	nm	0.11	0.11		0.25
Insertion Loss		Ty	dB	3	4		3
		Max	dB	2.5	3.5		3.5
Ripple		Max	dB	0.5	0.5		0.5
Channel Uniformity		Max	dB	1	1.5		1
Isolation	Adjacent Channels	Min	dB	25
	Non-adjacent Channels	Min	dB	40
Directivity		Min	dB	50
Optical Return Loss		Min	dB	45
PDL		Max	dB	0.15
Thermal Stability		Max	dB/°C	0.007
Thermal Wavelength DriftMax		Max	nm/°C	0.001		0.002
Operating Temperature			°C	0 to 70
Storage Temperature			°C	- 40 to 85
Package Dimension			mm	140 100 13
Maximum Power Handling			mW	300

High Quality & Stability Material

Use Import Filter with High Reliable & Stable quality

Test Enviroment

NO-dust workshop

High Temp. Ageing & High-Low Temperature cycling

100% Testing Before Shipment

Optical Spectrum Analysis

Use Original EMI OPTOCAST 3410-VM Glue

Use High Quality G-Lens and Collimator
