| Brand Name: | Gezhi or OEM |
| Model Number: | CCWDM4+1-90-05-SA |
| MOQ: | 1 pieces |
| Price: | USD >= 1 pieces $35 |
| Delivery Time: | 7 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Product description

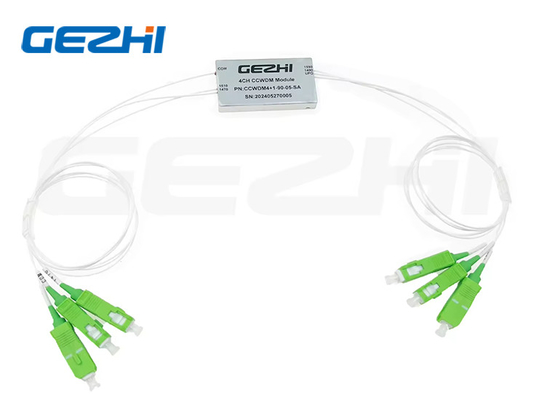

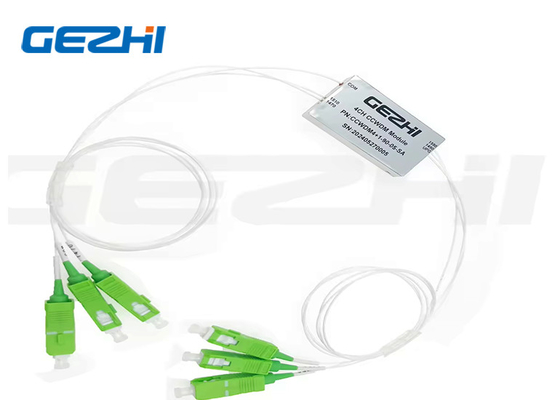

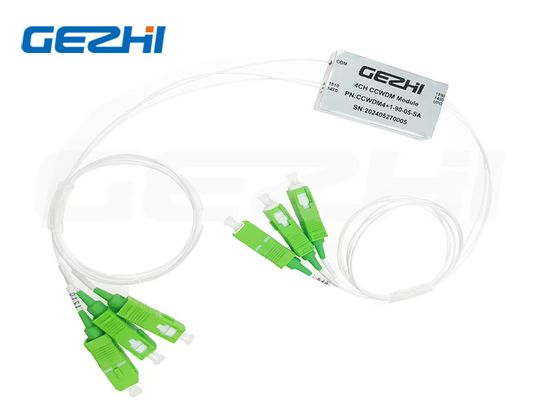

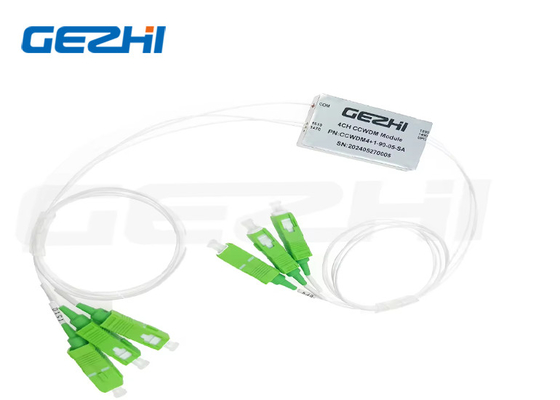

Optical WDM CCWDM 4+1CH SMF-28e with 0.9 loose tube SC/APC CCWDM Module
Gezhi offers a Mini CWDM (compact CWDM) module that provides bandwidth capacity expansion for future network growth in one of the industry’s smallest packages. The compact CWDM modules are based on free space optics technology. It is available in 4-or up to18- channel configurations. It have lower overall insertion loss and better uniformity across the channels. Its compact size and unique carrier tray set it apart, making it easier to deploy in a variety of field situations.
Product Specifications
| Parameter | |||||||
| Operating Wavelength (nm) | UPG | 1470 | 1490 | 1510 | 1590 | ||
| Insertion Loss (dB) | <1.0 | 0.56 | 0.73 | 0.79 | 0.63 | 0.77 | |
| Channel Ripple (dB) | <0.3 | ||||||
| Polarization Dependent Loss (dB) | <0.1 | ||||||
| PMD(ps) | <0.1 | ||||||
| lsolation | Adjacent (dB) | >30 | |||||
| Non-adjacent (dB) | >45 | ||||||
| Directivity (dB) | >50 | ||||||
| Return Loss (dB) | >45 | ||||||
| Fiber Length (m) | 0.5 | ||||||
| Fiber Type | SMF-28e with 0.9 Loose Tube | ||||||
| Connector | SC/APC | ||||||
| Operating Temperature | -20~+70℃ | ||||||
| Storage Temperature | -40~+85℃ | ||||||
| Package Dimension(mm) | 50*28*7 | ||||||
Our Products
FAQ
Q1: Are your trading company or manufacture ?
A: We are manufacture.
Q2: Do you provide OEM service ?
A: Yes, we can print your logo or label on the products or on the box.
Q3: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.
Q4: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q5: What is your delivery time ?
A: Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q6: What's your payment terms ?
A: We accept T/T, Western Union, Money Gram, Paypal.
For samples: 100% payment. Formal order: 30% as deposit, 70% balance payment before shipment.
|
|
