| Brand Name: | GEZHI or OEM |
| Model Number: | 8F MPO OM3 Cable |
| MOQ: | 1pc |
| Payment Terms: | T/T, Western Union |

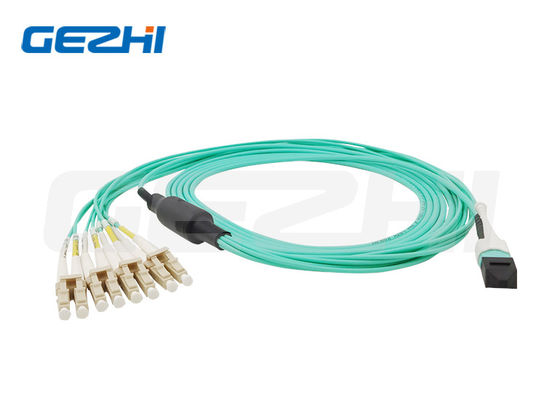

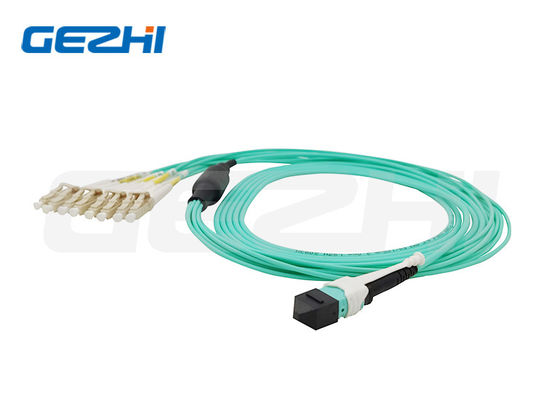

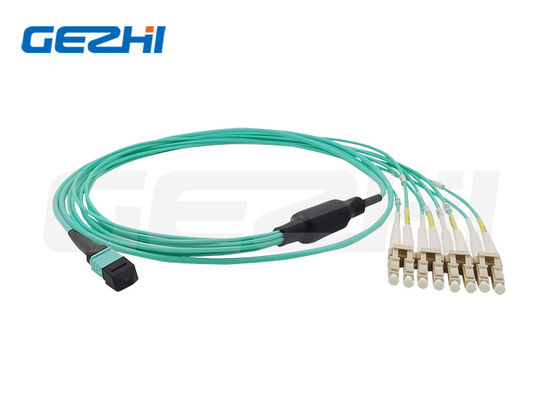

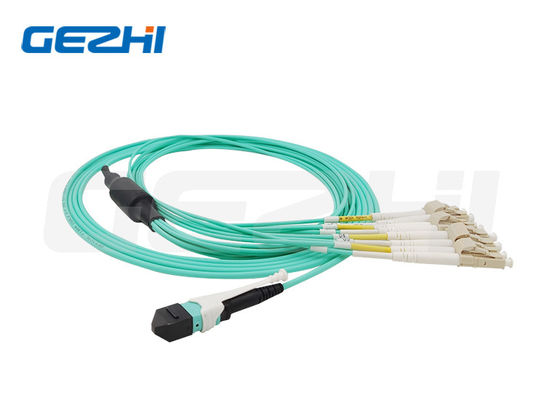

MPO to LC 8 Fibers OM3 50/125 Multimode MPO-8 LC Fiber Optic Patch Cord Breakout Cable
Product Description
MPO MM Breakout Cables
MPO trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.0.35dB IL, MPO Female to MPO Female connector and 3.0mm bunch cable is designed for 40G/100G direct connection and high-density data center applications. Theoretically, trunk cables are available with 12, 24, 48 and 72 fibers. Their ends are terminated with the customer’s choice of 12-fiber or 24-fiber MPO connectors.
Standards Compliance
1.The connectors are comply with IEC, Telcordia-GR-326-Core standards.
2.Different size & color boot option.
3.Low insertion loss; High return loss.
4.100% interferometer measurement available.
Features
1.OS2, OM3, OM4, OM5 available.
2.0.35dB elite low loss connector.
3.Factory terminated and tested.
4.Allow easy migration from 10GbE to 40GbE or 100GbE.
5.Pulling eyes are provided as an option to protect the fiber ends during installation.
Parameter
| Model | SM | MM | |
| Connector A:MPO | |||
| Connector Fiber Count | 8,12,24,48 Core | ||
| Polish | PC,APC | PC | |
| Insertion Loss | Standard | ≤0.70dB | ≤0.50dB |
| Elite Low Loss | ≤0.35dB | ≤0.30dB | |
| Return Loss | PC≥50dB,APC≥60dB | ≥30dB | |
| Durability(500 Matings) | ≤0.2dB | ||
| Test Wavelength | 1310/1550nm | 850/1300nm | |
| Connector B:LC,LC Uniboot,SC,FC,ST | |||
| Polish | PC,APC | PC | |
| Insertion Loss | ≤0.2dB | ≤0.2dB | |
| Return Loss | PC≥50dB,APC≥60dB | ≥35dB | |
| Durability(500 Matings) | ≤0.2dB | ||
Product Details
Ordering Information
| Type | Mode | Fiber Count | Polarity | Grad | Connector A | Connector B | Polishing | Length |
| PCMPO | 2=OS2 3=OM3 4=OM4 5=OM5 |
08=8 Fibers 12=12 Fibers 24=24 Fibers 36=3x12 Fibers 48=4x12 Fibers 96=8x12 Fibers 144=12x12 Fibers |
A=Type A B=Type B |
S=Standard E=Elite |
M=Male F=Female |
LC=LC SC=SC FC=FC ST=ST S=Specify |
P=UPC A=APC |
01=1M 02=2M 05=5M 10=10M S=Specify |
|
|
