Patch Cable Series
Created with Pixso. 1310/1550nm LC APC To SC APC Duplex OS2 Single Mode PVC 2.0mm Fiber Optic Patch Cable

1310/1550nm LC APC To SC APC Duplex OS2 Single Mode PVC 2.0mm Fiber Optic Patch Cable

Brand Name: Gezhi or OEM
Model Number: Fiber Optic Patch Cable
MOQ: 1 pieces
Price: USD >= 1 pieces $0.89
Delivery Time: 7 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Package:
Plastic Bag
Application:
Data Center...
Diameter:
2.0mm
Length:
1M2M3M......
Color:
Yellow
Fiber Type:
OS2
Connector Type 2:
SC/APC
Connector Type 1:
LC/APC
Packaging Details:
inner box,Carton
Supply Ability:
1000 Piece/Pieces per Day
Highlight:

1550nm Fiber Optic Patch Cable

,

Duplex Fiber Optic Patch Cable

,

SC APC Fiber Optic Patch Cable

Product Description

Product description

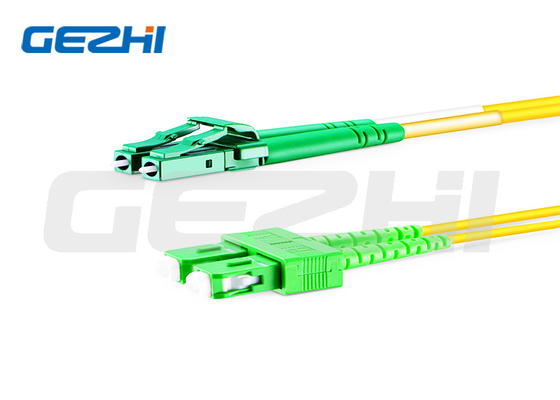

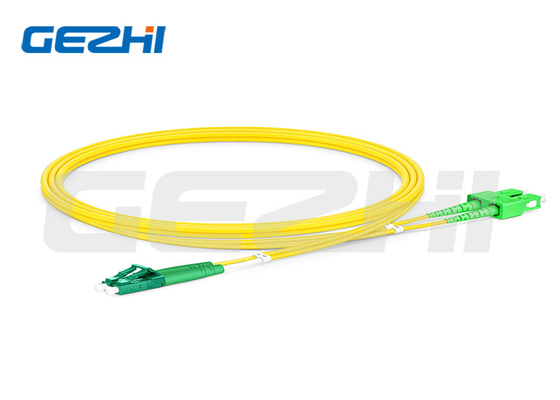

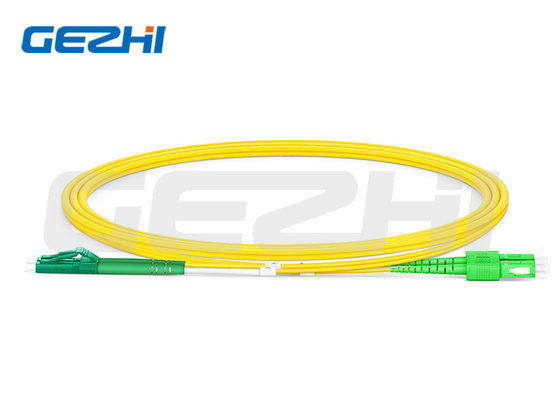

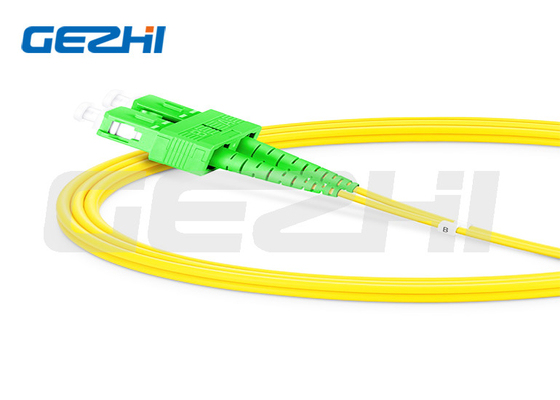

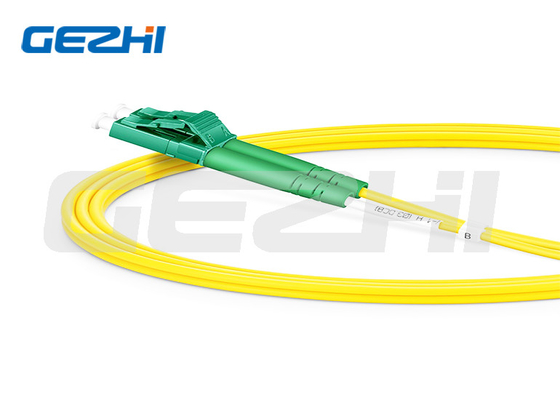

                           1310/1550nm LC APC to SC APC Duplex OS2 Single Mode PVC 2.0mm Fiber Optic Patch Cable

The 9/125μm OS2 single mode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high-density cabling in data centers, enterprise networks, telecom rooms, server farms, cloud storage networks, and any place fiber patch cables are needed. This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1/10/25/40/100/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.



1310/1550nm LC APC To SC APC Duplex OS2 Single Mode PVC 2.0mm Fiber Optic Patch Cable 01310/1550nm LC APC To SC APC Duplex OS2 Single Mode PVC 2.0mm Fiber Optic Patch Cable 1

1310/1550nm LC APC To SC APC Duplex OS2 Single Mode PVC 2.0mm Fiber Optic Patch Cable 2

1310/1550nm LC APC To SC APC Duplex OS2 Single Mode PVC 2.0mm Fiber Optic Patch Cable 3

1310/1550nm LC APC To SC APC Duplex OS2 Single Mode PVC 2.0mm Fiber Optic Patch Cable 4

Feature



1.Carrier-grade Cable Ensures Transmission Quality

Superior cable assemblies reduce light loss and easily meet your diverse cabling requirements.

Carrier-grade Cable Ensures Transmission Quality

Superior cable assemblies reduce light loss and easily meet your diverse cabling requirements.

1310/1550nm LC APC To SC APC Duplex OS2 Single Mode PVC 2.0mm Fiber Optic Patch Cable 5


1310/1550nm LC APC To SC APC Duplex OS2 Single Mode PVC 2.0mm Fiber Optic Patch Cable 6

1310/1550nm LC APC To SC APC Duplex OS2 Single Mode PVC 2.0mm Fiber Optic Patch Cable 7

Specification



Connector Type
LC APC to SC APC
Fiber Grade
G.657.A1 (Compatible with G.652.D)
Fiber Mode
OS2 9/125μm
Wavelength
1310/1550nm
Insertion Loss
≤0.3dB
Return Loss
≥60dB
Min. Bend Radius
(Fiber Core)
10mm
Min. Bend Radius
(Fiber Cable)
10/5D (Dynamic/Static)
Attenuation at 1310 nm
0.36 dB/km
Attenuation at 1550 nm
0.22 dB/km
Fiber Count
Duplex
Cable Diameter
2.0mm
Cable Jacket
PVC
Polarity
A (Tx) to B (Rx)
Operating Temperature
-20~70°C
Storage Temperature
-40~80°C



Product line

1310/1550nm LC APC To SC APC Duplex OS2 Single Mode PVC 2.0mm Fiber Optic Patch Cable 81310/1550nm LC APC To SC APC Duplex OS2 Single Mode PVC 2.0mm Fiber Optic Patch Cable 91310/1550nm LC APC To SC APC Duplex OS2 Single Mode PVC 2.0mm Fiber Optic Patch Cable 10





Recommend Products
1310/1550nm LC APC To SC APC Duplex OS2 Single Mode PVC 2.0mm Fiber Optic Patch Cable 11

1310/1550nm LC APC To SC APC Duplex OS2 Single Mode PVC 2.0mm Fiber Optic Patch Cable 12

1310/1550nm LC APC To SC APC Duplex OS2 Single Mode PVC 2.0mm Fiber Optic Patch Cable 13
