Product description

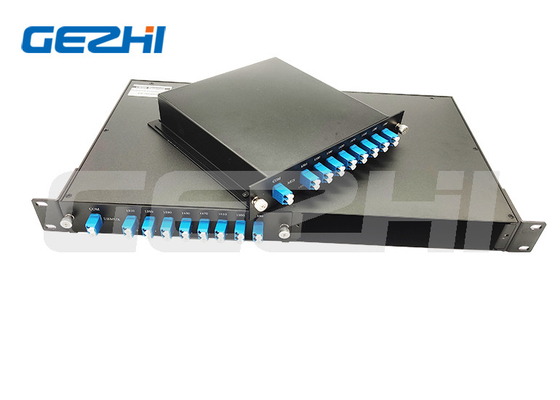

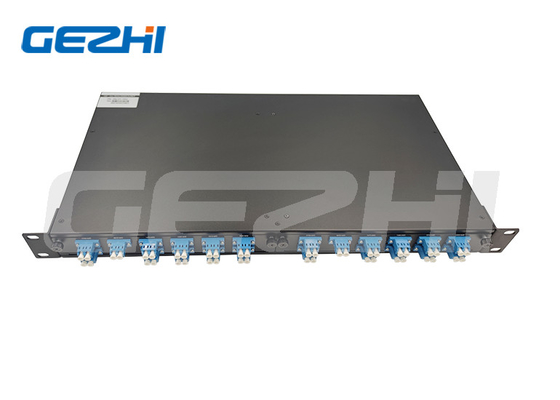

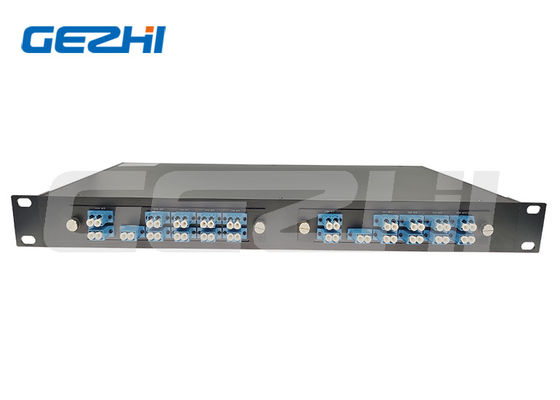

a low loss, high density passive The Double Fiber DWDM mux Passive filters 1x8 Channels networks
The Double Fiber DWDM mux Passive filters 1x8 Channels networks offers an high channel isolation WDM solution for data centers and Metro access applications.
Features
High channel
Wide pass band
Low Insertion Loss
High stability and reliability
Epoxy-Free Optical Path
Applications
Access / Enterprise Networks
Long Haul Networks
Wavlength Routing
Channel Add/Drop
Dense WDM Systems
Specification
| Parameter | Unit | Passive Filters DWDM | |
| Channel Number | -- | 1x8 Channels | |
| Operation Wavelength | nm | C27~C34 | |
| Channel Central Wavelength | nm | ITU-T Grid @DWDM | |
| Channel Passband | nm | 0.8 (100Ghz) | |
| Insertion Loss @PB | dB | <2.8 | |
| Isolation @Adjacent Channel | dB | >30 | |
| Isolation @Non-adjacent Channel | dB | >40 | |
| Isolation @Reflect Channel | dB | >15 | |
| Passband Ripple | dB | <0.5 | |
| Polarization Dependent Loss | dB | <0.15 | |
| Polarization Mode Dispersion | ps | <0.1 | |
| Directivity & Return Loss | dB | Directivity: >50 Return Loss:>45 | |
| Power Handling | mW | <500 | |
| Connector | -- | LC/UPC | |
| Fiber Type | -- | SMF-28e or Customized | |
| Operating Temperature | ℃ | -20 ~ +70 | |
| Storage Temperature | ℃ | -40 ~ +85 | |
| Package Dimension | mm | 2Slots 19" 1U Rackkmount | |
GEZHI's Double Fiber DWDM mux Passive filters 1x8 Channels networks offers high-capacity terminal DWDM solutions for network expansion. This Double Fiber DWDM mux Passive filters 1x8 Channels networks is used for long-haul transmission where wavelengths are packed tightly together over the C-band in 100GHz grid (0.8nm). The Double Fiber DWDM mux Passive filters 1x8 Channels networks is protocol transparent and suited for applications including SDH/SONET, 10/1G Ethernet, 16/8/4/2/1G Fibre Channel, CATV, FTTx, etc.
8 Channels Fiber Optic Multiplexer Optical Passive DWDM Mux Modules
Dual Fiber DWDM
Double Fiber DWDM mux Passive filters 1x8 Channels networks
Ordering Information
| DWDM | Number of Channels | Configuration | First Channel | Last Channel | Module type | Cable type | Fiber length | Connector |
|
DWDM 100G=100Ghz 200G=200Ghz |
01=1 CH ...... |
M=Mux D=Demux A=Mux+Demux |
C21=C21 C22=C22 C21=C23 ......
C59=C53 C60=C60 C61=C61 S=Specify |
C21=C21 C22=C22 C21=C23 ......
C59=C53 C60=C60 C61=C61 S=Specify |
A1=ABS box 100x80x10mm A2=ABS box 120x80x18mm A3=ABS box 140x115x18mm L1=LGX 129*29*130mm L2=LGX insert in 2slot Rack L4=LGX insert in 4slot Rack R1=19" 1 U Rack R2=2slot 19″1U Rack R4=4slot 19″1U Rack S=Specify
|
09=900um loose tube 20=2.0mm 30=3.0mm |
05=0.5m 10=1.0m |
00=none LP=LC/UPC LA=LC/APC SP=SC/UPC SA=SC/APC FP=FC/UPC FA=FC/APC S=Specify |
|
|
