Product description

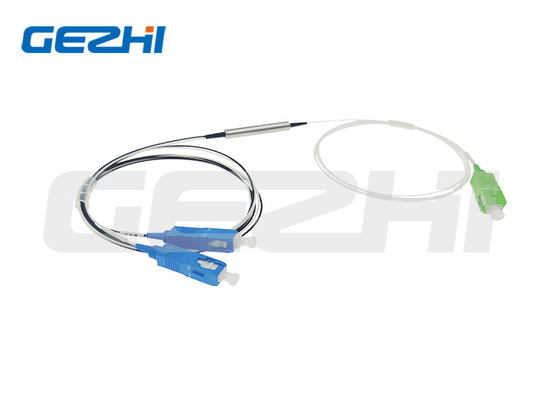

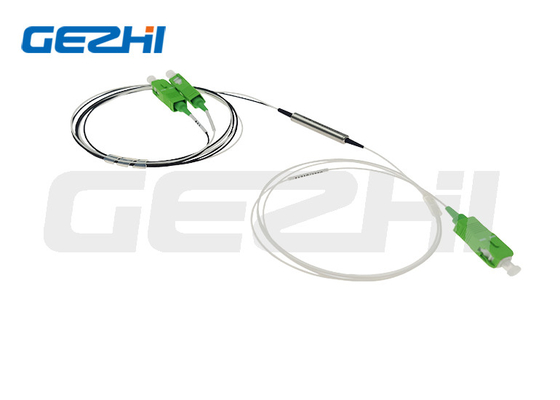

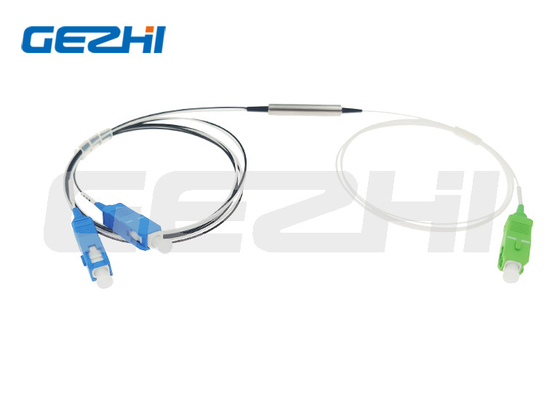

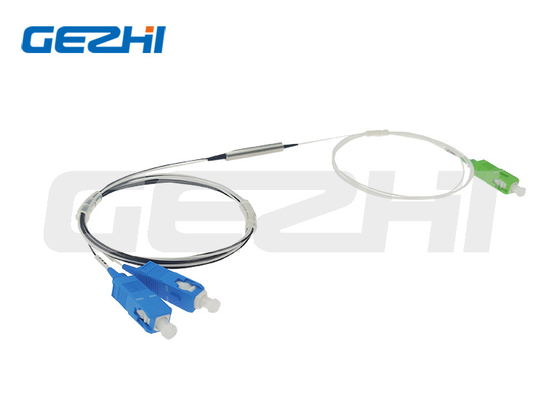

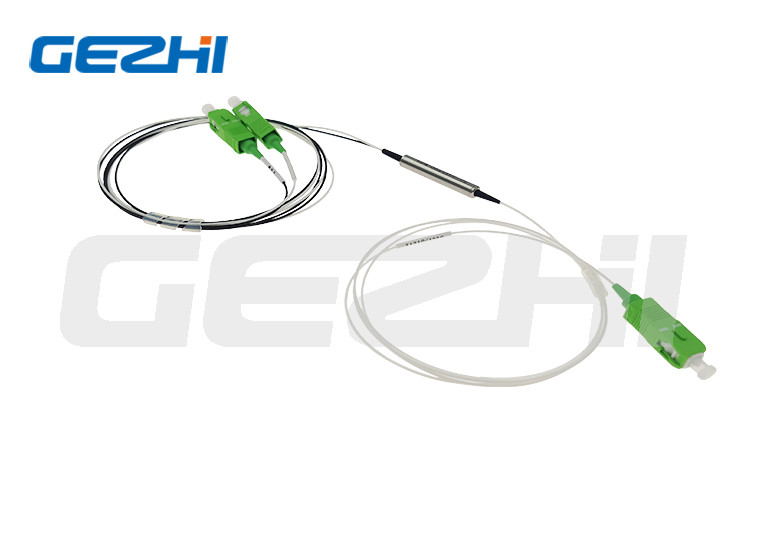

1x2 FWDM Device T1550R1310/1490nm Steel tube 1meter without connector gpon fwdm
FTTX Filter WDM module extensively used in EDFA, Raman amplifiers, WDM networks and fiber optics instrumentation is based on Thin Film Filter (TFF) technology. The device combines or separates light at different wavelengths in a wide wavelength range. It can expand the capacity of a single fiber to achieve bidirectional communication, so that widely used in optical network upgrade and expansion, or introduce new comprehensive business etc.
GEZHI Photonics provides filter-based wavelength division multiplexing (WDM) filter devices that are customized to the particular wavelength bands for your special applications. As you might know, GEPON system itself works on 1310/1490, so CATV signal here is delivered over same fiber using 1550nm, and FWDM is a place where all this get's "mixed".
Specification
| Type | FWDM | |
| Operating Wavelength T: transmission wavelength R: reflection wavelength 1310±50,1490±10, 1550±10 1610±10, 1625±25, 1650±20 |
nm | T1550 R1310/1490 |
| T1490 R1310/1550 | ||
| T1310 R1490/1550 | ||
| T1550/1610 R1310/1490 | ||
| T1550/1625 R1310/1490 | ||
| T1625 R1310/1490/1550 | ||
| T1650 R1310/1490/1550 | ||
| Transmission insertion loss | dB | ≤0.80 |
| Reflection insertion loss | dB | ≤0.60 |
| Transmission channel isolation | dB | ≥30 |
| Reflection channel isolation | dB | ≥17 |
| PDL | dB | ≤0.1 |
| Wavelength thermal stability | nm/℃ | ≤0.003 |
| Insertion loss thermal stability | dB/℃ | ≤0.005 |
| Directivity | dB | ≥55 |
| Return loss | dB | ≥45 |
| Operating temperature | ℃ | -20~+70 |
| Storage temperature | ℃ | -40~+85 |
Note: 1. Customization is available.
2. pecified without connector, and add an additional 0.2dB loss per connector.
Item Details
Pass(Transmission)Channel: 1550nm
Reflection Channel: 1310nm and 1490nm
High Isolation, Reliability and channel isolation
Low Insertion loss and excellent environmental reliability
RoHS Compliant
Package Type
Glass Tube Package for 250um bare fiber
Steel Tube package for 250um bare fiber and 900um fiber
ABS box for 900um, 2.0mm and 3.0mm fiber
Note: 250um bare fiber is too finne to be equiped with connector
Mechanical Drawing
Picture A is for T13/R15, T14/R1315, T1415/R13 FTTX Filter WDM
Picture B is for T15/R13, T13/R1415, T15/R1314, T1314/R15 FTTX Filter WDM
|
|
