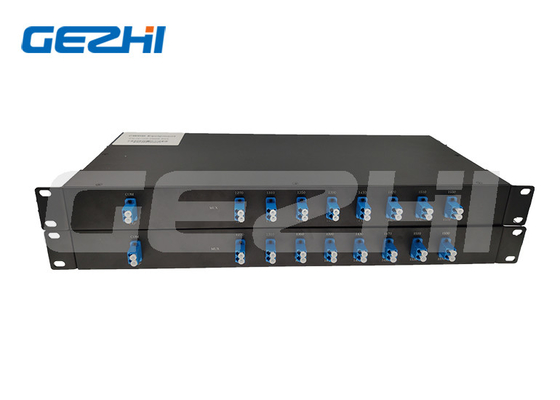

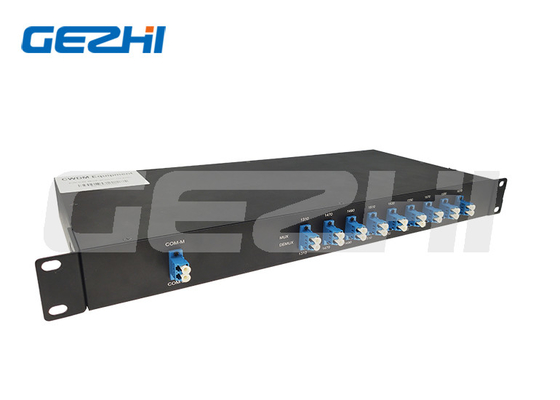

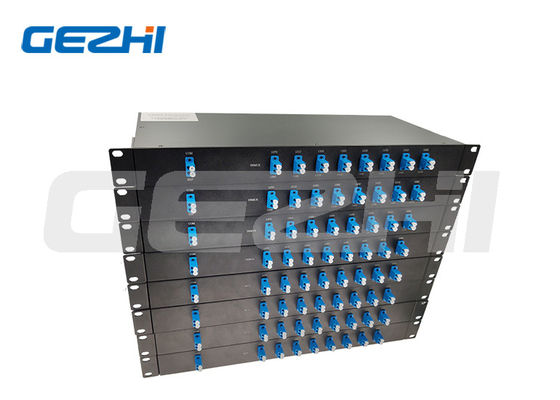

High Quality 8 Channel Cwdm Mux Demux Optic Cwdm Odam For Access Network

Brand Name: GEZHI or OEM
Model Number: 8 CH CWDM
MOQ: 1 pieces
Price: USD >= 1 pieces $96
Delivery Time: 7 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Channel Number:
8ch Mux Demux
Warranty Time:
3 Years
Package:

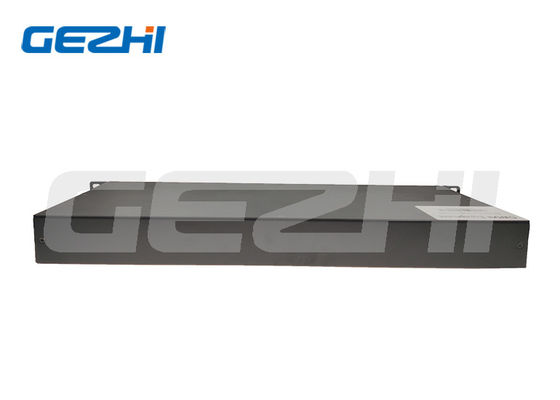

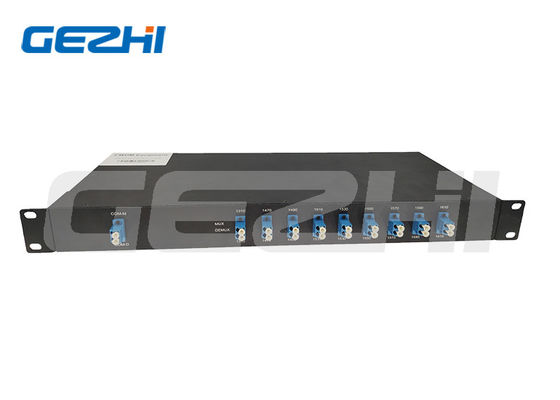

1U Rack Mounted
Application:
FTTH FTTB FTTX Network
Fiber Connector:
LC/UPC, FC/APC, SC/APC Etc.
Center Wavelength:
1270~1610nm
Network:
Wireless Lan, Wired LAN, 4g
Packaging Details:
inner box,Carton
Supply Ability:
1000 Piece/Pieces per Day
Highlight:

8 Channel cwdm Mux Demux

,

Access Network cwdm Mux Demux

,

8 Channel Optic Cwdm Odam

Product Description

Product description

                                  High Quality 8 Channel cwdm Mux Demux Optic Cwdm Odam For Access Network

CWDM Mux/Demux (optical multiplexer/demultiplexer) Module are considered as a cheaper and simpler alternative to DWDM systems for metro access network applications. Since CWDM Mux/Demux systems have wide channel spacing (20 nm), they do not require precise wavelength control for transmitter lasers. Thus, cost-effective non-cooled lasers as well as lower-cost passive components may be used for CWDM Mux or Demux systems. GEZHI Photonics supplies a variety of WDM devices and are promoting higher speed and more reliable optical network.



High Quality 8 Channel Cwdm Mux Demux Optic Cwdm Odam For Access Network 0High Quality 8 Channel Cwdm Mux Demux Optic Cwdm Odam For Access Network 1High Quality 8 Channel Cwdm Mux Demux Optic Cwdm Odam For Access Network 2High Quality 8 Channel Cwdm Mux Demux Optic Cwdm Odam For Access Network 3High Quality 8 Channel Cwdm Mux Demux Optic Cwdm Odam For Access Network 4


Feature
Low Insertion Loss
High Isolation
Low PDL
Compact Design
Good Channel-to-channel UniformityWide Operating Wavelength:1260nm~1620nm or 1460nm~1620nm
Wide Operating Temperature:-5℃~75℃
High Reliability and Stability

PRODUCT SPECIFICATIONS
Parameter
Unit
CWDM Mux Demux
Channel Spacing
nm
20nm
Center Wavelength
nm
1270~1610 or 1271~1611
Channel Passband
nm
±6.5
Channel Number
/
4CH
8CH
16CH
Insertion Loss
dB
<1.5
<2.5
<5.5 or <3.5(with skip)
Isolation @Adjacent Channel
dB
>30
Isolation @Non-adjacent Channel
dB
>40
Isolation @Express Port
dB
>15
Polarization Dependent Loss
dB
<0.2
Polarization Mode Dispersion
dB
<0.1
Directivity
dB
>50
Return Loss
dB
UPC >45 APC>50
Power Handling
mW
<500 (High Power type available)
Fiber Type
/
SMF-28e (Polarization Maintaining Type available)
Operating Temperature
-20~+75 (-40~+85 available)
Storage Temperature
-40~+85
Package Type
mm
ABS Box, ABS Plug-in Module, LGX Chassis, Rackmount





Test Enviroment
High Quality 8 Channel Cwdm Mux Demux Optic Cwdm Odam For Access Network 5
High Quality 8 Channel Cwdm Mux Demux Optic Cwdm Odam For Access Network 6
High Quality 8 Channel Cwdm Mux Demux Optic Cwdm Odam For Access Network 7
High Quality 8 Channel Cwdm Mux Demux Optic Cwdm Odam For Access Network 8
NO-dust workshop
High Temp. Ageing & High-Low Temperature cycling
100% Testing Before Shipment
Optical Spectrum Analysis



FAQ
Q1:Can I have a sample order? What is your MOQ?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
