2x2 Full Optical Switches For Channel Blocking Through And Cross 2x2F Optical Switch

Brand Name: Gezhi or OEM
Model Number: 2x2F-SM-13/15-5N
MOQ: 1 pieces
Price: USD >= 1 pieces $36
Delivery Time: 7 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Application:
Configurable OADM
Fiber Connector:
LC/UPC, LC/APC, SC/UPC Etc.
Control Type:
Latching Or Non-Latching
Voltage:
3V Or 5V
Port:
2x2Full
Wavelength:
1260-1650nm
Warranty Time:
3 Years
Packaging Details:
inner box,Carton
Supply Ability:
1000 Piece/Pieces per Day
Highlight:

2x2F optical switch

,

2x2 Full Optical Switches

Product Description

Product description



                             2x2 Full Optical Switches for Channel Blocking Through and Cross 2x2F optical switch

The 2x2 Full Optical switches of GEZHI Photonics Co.,Ltd connects optical channels by redirecting incoming optical signal into selected output fiber., its with Through and Cross optical state. Its used in Configuration add/drop solution, Channel Blocking, wth high reliability and low optical distortions.

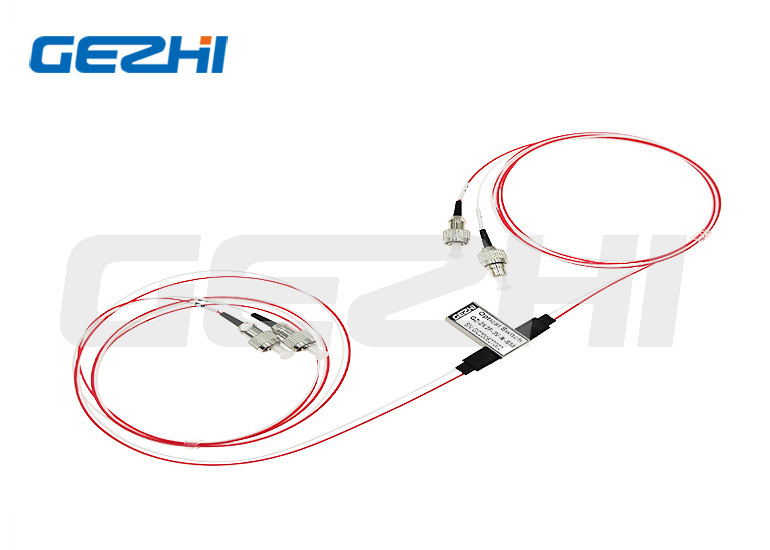

2x2 Full Optical Switches For Channel Blocking Through And Cross 2x2F Optical Switch 0

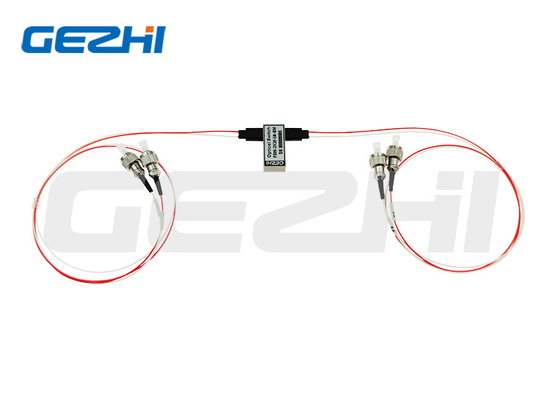

2x2 Full Optical Switches For Channel Blocking Through And Cross 2x2F Optical Switch 1

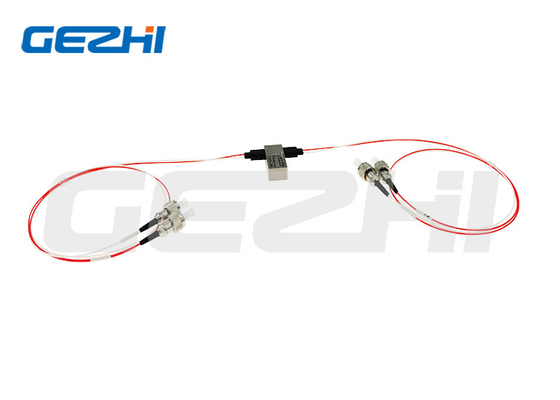

2x2 Full Optical Switches For Channel Blocking Through And Cross 2x2F Optical Switch 2

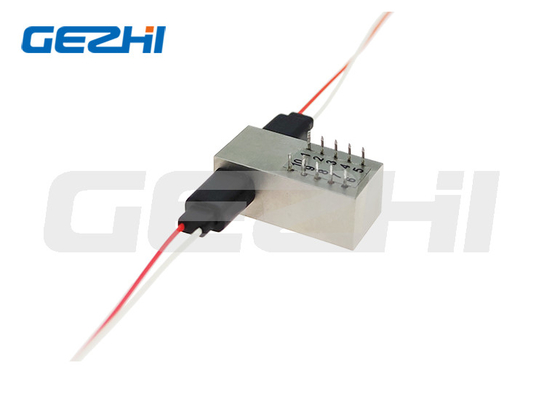

2x2 Full Optical Switches For Channel Blocking Through And Cross 2x2F Optical Switch 3



Feature

Low Insertion Loss

Fast Switching Time
High Stability & Reliability
Industrial Operating Temperature
(-40~+80℃ available)
Compact Size
Latching or Non-latching type

PRODUCT SPECIFICATIONS
Parameter
Unit
2x2F Optical Switch
Wavelength Range
nm
850±40/1300±40
1260~1650
Operating Wavelength
nm
850/1300
1310/1550
Insertion Loss
dB
<1.2
<1.2
Return Loss
dB
MM≥30 SM≥50
Crosstalk
dB
MM≥35 SM≥55
Polarization Dependent Loss
dB
0.05
WDL
dB
≤0.25
TDL
dB
≤0.25
Repeatability
dB
≤±0.02
Power Supply
V
3.0 or 5.0
Lifetime
times
≥107
Switch Time
ms
≤8
Optical Power
mW
≤500
Operating Temperature
-20~+75 (-40~+85 available)
Storage Temperature
-40~+85
Dimension
mm
(L)27.0×(W)12.0×(H)8.0



High Quality & Stability Material
2x2 Full Optical Switches For Channel Blocking Through And Cross 2x2F Optical Switch 4



Use Original New and Stable Panasonic Relay

2x2 Full Optical Switches For Channel Blocking Through And Cross 2x2F Optical Switch 5



Use High Reliable Prism

2x2 Full Optical Switches For Channel Blocking Through And Cross 2x2F Optical Switch 6

Use High Quality C-Lens and Collimator

FAQ
Q1:Can I have a sample order? What is your MOQ?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
