| Brand Name: | Gezhi or OEM |
| Model Number: | GZ-DWDM-8CH |
| MOQ: | 1 pieces |
| Price: | USD >= 1 pieces $30 |
| Delivery Time: | 7 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Product description

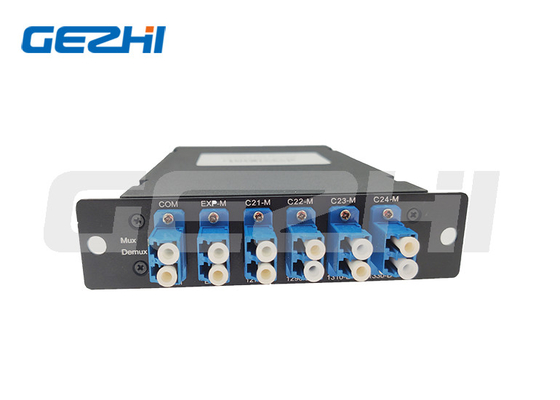

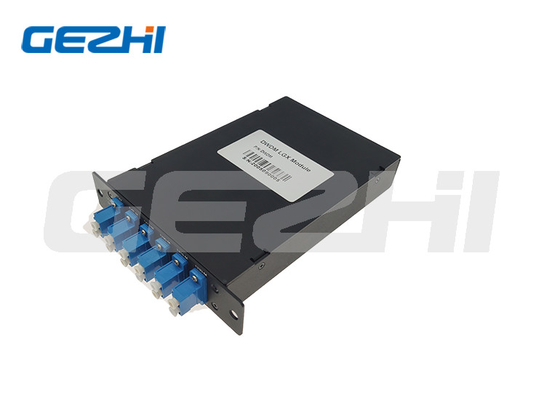

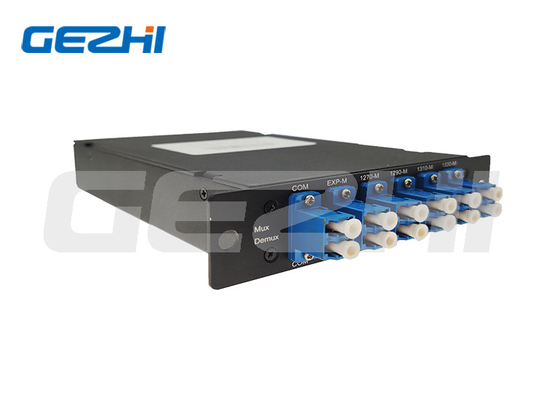

8CH DWDM Module Pluggable LGX Box Package DWDM Mux Demux Dual Fiber With LC UPC
DWDM (Dense Wavelength Division Multiplexer) Mux/Demux Module offers high stable and reliable bandwidth in a cost-effective and small package. It's used with10G 80km DWDM SFP+ Transceiver for Long-Haul transportion.
DWDM Mux/Demux ITU Wavelength provides the ability to consolidate your services over a single connection, whether voice, data, or Internet. Use fiber wavelength is unrestricted, allowing for increased control and scalability.
Features
* C Band
* 2-44 channels DWDM Mux/Demux (CH17-CH61)
* Channel spacing: 0.8nm(100GHz Grid)
* Com port is simplex
* Protocol transparent (10Mbps to 100Gbps)
* Low insertion loss
* Excellent channel isolation
* Epoxy-free optical path
* Compliant to G.657A1 standard
* ISO 9001 manufacturing facility
* Wide Operating Temperature: -20~+70℃
Applications
* Channel Add/Drop
* DWDM Network
* Wavelength Routing
* Fiber Optical Amplifier
* CATV System
Product specifications
| Parameters | |||||||
| Channel Space(GHz) | 100(standard) | 200 | |||||
| Channel Number | 1x4 | 1x8/1x16 | 1x40 | 1x4 | 1x8 | 1x16 | |
| Center Wavelength (nm) | ITU Grid | ||||||
| Center Wavelength Accuracy(nm) | -+0.05 | +-0.1 | |||||
| Channel Passband(@-0.5dB)(nm) | 0.22 | 0.5 | |||||
| Fiber Type | SMF-28e with 900um loose tube or customer specified | ||||||
| IL(dB) | 1.8 | 3.0 | 3.5 | 1.7 | 2.9 | 3.4 | |
| Passband Ripple(dB) | 0.35 | 0.4 | 0.5 | 0.35 | 0.4 | 0.5 | |
| Isolation(dB) | Adjacent Channel | 25 | 28 | ||||
| Non AdjacentChannel | 40 | ||||||
| PDL(dB) | 0.2 | ||||||
| PMD(ps) | 0.1 | ||||||
| RL(dB) | 45 | ||||||
| Directivity (dB) | 50 | ||||||
| Maximum Optical Power (mw) | 300 | ||||||
| Operating Temperature (°C) | -40~85 | ||||||
| Storage Temperature (°C) | -40~85 | ||||||
| BOX Package(mm) | 100*80*10 or140115*18 | ||||||
| LGX Package | 1U,2U | ||||||
| 19 Rack mount Package | 1U | ||||||
Order Information
| GZ | Channel Spacing | Channel Number | Configuration | 1st Channel | Fiber Type | Fiber Length | Connector |
| GEZHI |
1=100GHz 2=200GHZ |
4=4-Channel 8=8-Channel 16=16-Channel 32=32-Channel |
M=Mux D=Demux |
21=1560.61nm 22=1559.79nm 23=1558.98nm… |
1=Bare fiber 2=900um Jacket |
1=1 Meter 2=2 Meter
|
0=None 1=FC/APC 2=FC/UPC 3=SC/APC 4=SC/UPC 5=ST 6=LC |
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of Gezhi.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 5-8 days.
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
|
|
