8CH DWDM Module 2In1 Rack With Double Fiber DWDM Mux Passive Filters 8 Channel Demux Cwdm

Brand Name: Gezhi or OEM
Model Number: 8CH channel DWDM Moudule
MOQ: 1 pieces
Price: USD >= 1 pieces $280
Delivery Time: 7 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Application:
Metro Networks
Fiber Connector:
LC/UPC, FC/APC, SC/APC Etc.
Center Wavelength:
ITU Grid
Channel Spacing:
100GHz
Network:
TCP, Ip, POE, GPRS, Wifi
Warranty Time:
3 Years
Use:
CATV Fiber Optic Links
Packaging Details:
inner box,Carton
Supply Ability:
1000 Piece/Pieces per Day
Highlight:

8 channel demux cwdm

,

8CH DWDM module

,

2In1 Rack DWDM module

Product Description

Product decription



                8CH DWDM module 2In1 Rack with Double Fiber DWDM mux Passive filters 8 channel demux cwdm



DWDM (Dense Wavelength Division Multiplexing) is a combination of a set of optical wavelengths that can be transmitted with one fiber. This DWDM Module launched by GEZHI Photonics is based on the thin film coating technology. This is a laser technology used to increase bandwidth on existing fiber-optic backbones. It enables optical fiber networks to transmit signals of several wavelengths simultaneously.


GEZHI Photonics provide full range of DWDM Mux Demux with customized Channel, Wavelength, Power, Fiber type and connector type. Also Low insertion type is available

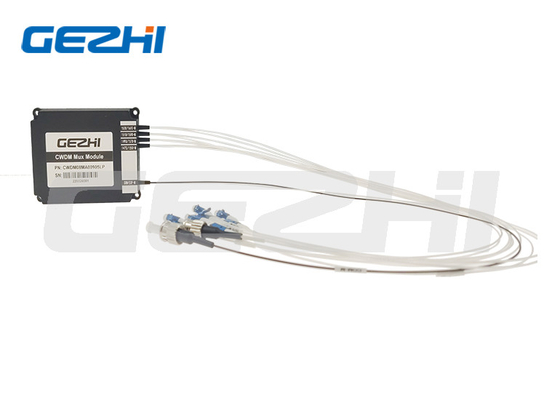

8CH DWDM Module 2In1 Rack With Double Fiber DWDM Mux Passive Filters 8 Channel Demux Cwdm 0
8CH DWDM Module 2In1 Rack With Double Fiber DWDM Mux Passive Filters 8 Channel Demux Cwdm 1
8CH DWDM Module 2In1 Rack With Double Fiber DWDM Mux Passive Filters 8 Channel Demux Cwdm 2

FEATURES AT A GLANCE
Low Insertion Loss
High Isolation
High Stability & Reliability
Industrial Operating Temperature
(-40~+80℃ available)
Customized Package type
Stainless Steel tube, ABS Box, ABS Plug-in Module, LGX Chassis, Rackmount

PRODUCT SPECIFICATIONS
Parameter
Unit
1x8 DWDM Mux Demux
Channel Number
--
1x8CH
Operation Wavelength
nm
C45~C52 +Upgrade Port
Channel Central Wavelength
nm
ITU-T Grid @DWDM
Isolation @Adjacent Channel
dB
>30
Isolation @Non-adjacent Channel
dB
>40
Isolation @Reflect Channel
dB
>15
Passband Ripple
dB
<0.5
Polarization Dependent Loss
dB
<0.15
Polarization Mode Dispersion
ps
<0.1
Directivity & Return Loss
dB
Directivity: >50 Return Loss:>45
Power Handling
mW
<500
Connector
--
LC/UPC
Fiber Type
--
SMF-28e or Customized
Operating Temperature
-20 ~ +70
Storage Temperature
-40 ~ +85



High Quality & Stability Material
8CH DWDM Module 2In1 Rack With Double Fiber DWDM Mux Passive Filters 8 Channel Demux Cwdm 3

Use Import Filter with High Reliable & Stable quality


8CH DWDM Module 2In1 Rack With Double Fiber DWDM Mux Passive Filters 8 Channel Demux Cwdm 4

Use Original EMI OPTOCAST 3410-VM Glue


8CH DWDM Module 2In1 Rack With Double Fiber DWDM Mux Passive Filters 8 Channel Demux Cwdm 5

Use High Quality G-Lens and Collimator

Product packaging
8CH DWDM Module 2In1 Rack With Double Fiber DWDM Mux Passive Filters 8 Channel Demux Cwdm 6
8CH DWDM Module 2In1 Rack With Double Fiber DWDM Mux Passive Filters 8 Channel Demux Cwdm 7
8CH DWDM Module 2In1 Rack With Double Fiber DWDM Mux Passive Filters 8 Channel Demux Cwdm 8
8CH DWDM Module 2In1 Rack With Double Fiber DWDM Mux Passive Filters 8 Channel Demux Cwdm 9
Finished Item
Inner Package
Inner Box
Carton



Test Enviroment
8CH DWDM Module 2In1 Rack With Double Fiber DWDM Mux Passive Filters 8 Channel Demux Cwdm 10
8CH DWDM Module 2In1 Rack With Double Fiber DWDM Mux Passive Filters 8 Channel Demux Cwdm 11
8CH DWDM Module 2In1 Rack With Double Fiber DWDM Mux Passive Filters 8 Channel Demux Cwdm 12
8CH DWDM Module 2In1 Rack With Double Fiber DWDM Mux Passive Filters 8 Channel Demux Cwdm 13
NO-dust workshop
High Temp. Ageing & High-Low Temperature cycling
100% Testing Before Shipment
Optical Spectrum Analysis



FAQ
Q1:Can I have a sample order? What is your MOQ?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
