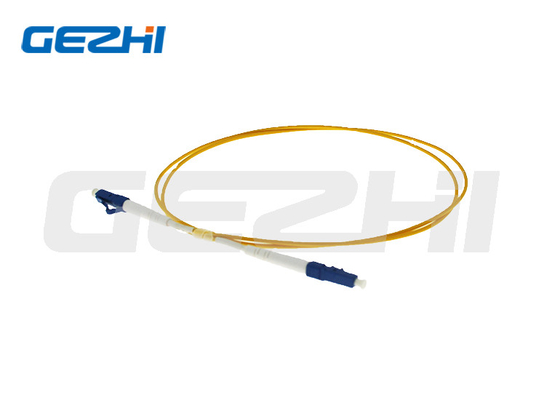

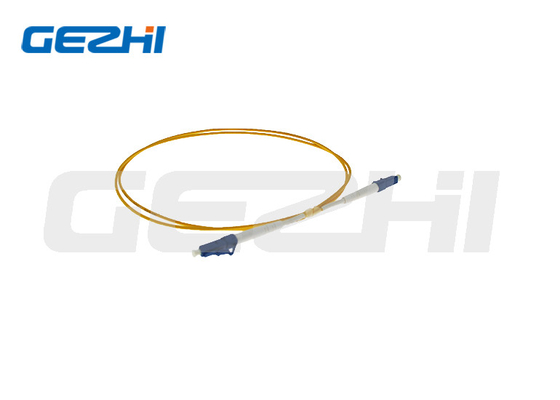

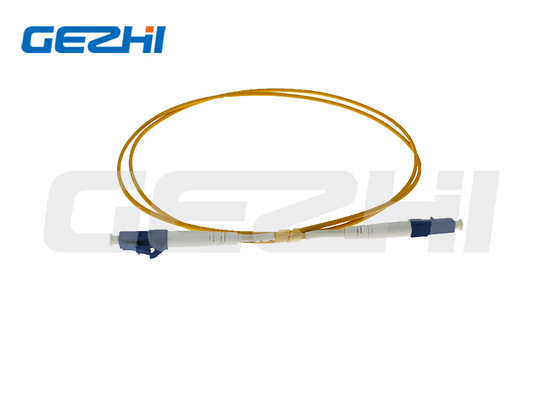

1m Fiber Optical Patch Cord Fiber Cable LC/UPC Single Optical Fiber Jumper

Brand Name: Gezhi or OEM
Model Number: Patch Cord fiber cable
MOQ: 1 pieces
Price: USD >= 1 pieces $1.99
Delivery Time: 7 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Test Wavelength:
1310nm, 1550nm
Return Loss:
SM/UPC≥50 DB MM/UPC≥35 DB
Wavelength:
1260nm-1650nm
Repeatability:
<=0.1
Warranty Time:
3 Year
Use:
FTTx Solutions
Connector Type:
PDLC-DLC; DLC-DLC
Packaging Details:
inner box,Carton
Supply Ability:
1000 Piece/Pieces per Day
Highlight:

1m Fiber Optical Patch Cord

,

LC/UPC Single Optical Fiber Jumper

,

LC/UPC Fiber Optical Patch Cord

Product Description

Product description



                             1m Fiber Optical Patch Cord fiber cable LC/UPC Single Optical Fiber Jumper

GEZHI Photonics' Single Mode Patch cable are all-glass fibers supporting single-mode ligth propagation for many wavelength ranges like 460nm 630nm 780nm 980nm 1060nm 1950nm etc. Its features with low insertion loss, High stability and reliability which widely used in Optical Sensor, Research, Medical application. We also provide Singlemode (SM) Patchcord/ optical jumper cord with customized spec.



1m  Fiber Optical Patch Cord Fiber Cable LC/UPC Single Optical Fiber Jumper 0

1m  Fiber Optical Patch Cord Fiber Cable LC/UPC Single Optical Fiber Jumper 1

1m  Fiber Optical Patch Cord Fiber Cable LC/UPC Single Optical Fiber Jumper 2

1m  Fiber Optical Patch Cord Fiber Cable LC/UPC Single Optical Fiber Jumper 3

Features:

High Stability & Reliability

Low Insertion
Loss Excellent Repeatability.


Applications

* Multi-purpose Outdoor
* For connection between BBU and RRU
* Deployment in Remote Radio Head cell tower applications

Specification
Specfication
Unit
Parameter
Fiber Type
/
460-HP
630-HP
780-HP
1060-HP
SM-1950
Operating Wavelength
nm
450~600
600~770
780~970
980~1600
1850~2200
Test Wavelength
nm
515
630
850
1060
1950
Cutoff Wavelength
nm
410~450
540~600
700~760
890~950
1640~1800
Insertion Loss
dB
≤1.8
≤1.0
≤0.8
≤0.8
≤0.8
Numerical aperture
NA
0.13
0.13
0.13
0.14
0.20
Mode Field Diameter
um
3.5±0.5
4.0±0.5
5.0±0.5
6.2±0.5
8.0
Cladding Diameter
um
125
125
125
125
125
Coating Diameter
um
245
245
245
245
245
Return Loss
PC
dB
≥45
APC
≥55
Optical Power
mW
≤300
Durability
times
≥1000
Operating Temperature
-40~+85
Storage Temperature
-40~+85
Our Certifications
1m  Fiber Optical Patch Cord Fiber Cable LC/UPC Single Optical Fiber Jumper 4
FAQ
Q1:Can I have a sample order? What is your MOQ?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: Can I negotiate the prices ?
A2: Yes, we can provide better discount for valued customers.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
