| Brand Name: | Gezhi or OEM |
| Model Number: | DOADM101XXX |
| MOQ: | 1 pieces |
| Price: | USD >= 1 pieces $36 |
| Delivery Time: | 7 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
zProduct description

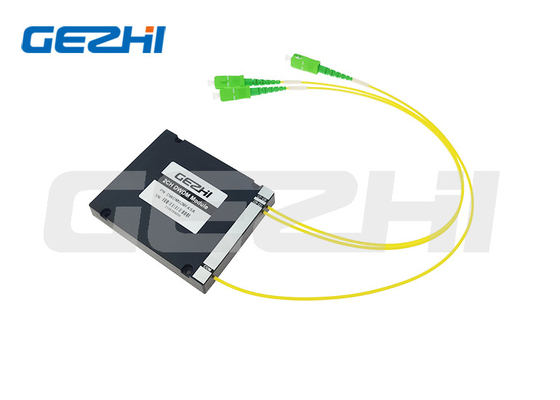

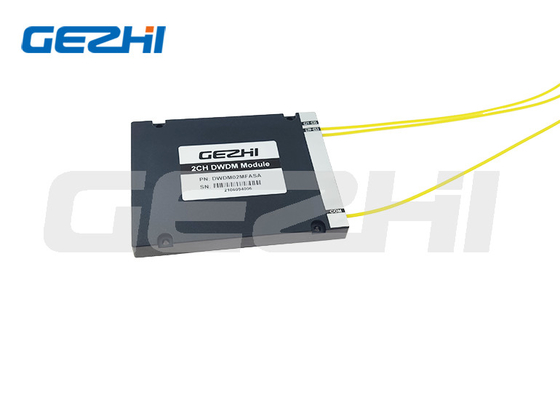

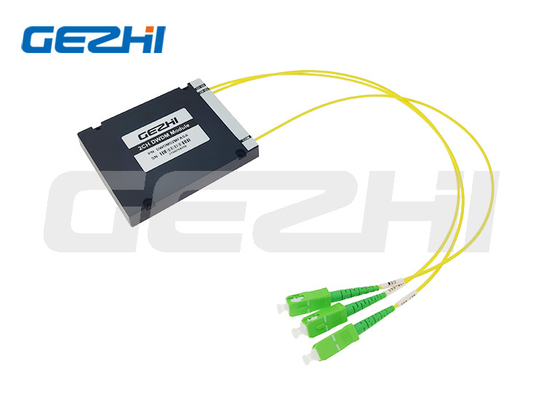

single fiber or dual fiber 2CH DWDM Add Drop ROADM Module
DWDM Optical Add/Drop multiplexer (OADM) is a passive optical device used in WDM networks for adding and dropping one/multiple 100GHz DWDM channels in the C-band into one or two fibers, while letting the rest of the wavelengths bypass to the needed destination. Using the DWDM technology can add effctively WDM capability to their existing and new networks, and extend the optical signals transmission distance.
We also can produce DWDM OADM modules which are available in single-sided (East or West) and dual-sided (East and West) configurations. With matchingnMUX/DeMUX units placed at each end of an optical link, multiple data channels can be combined and transmitted over a single-mode fiber trunk. The passive OADM modules can add or drop up to 4 data channels at any point along the trunk.
GEZHI Photonics DWDM OADM are device or modular, scalable and are perfectly suited to 10/1G Ethernet, 16/8/4/2/1G FC, SDH/SONET, Video, CATV, FTTx, applications.
Feature
Low Insertion LossSingle fiber or Dual fiber
West or East / West and East transmission
Customized Channel, Wavelength, Connector
Industrial Operating Temperature
(-40~+80℃ available)
Customized Package type
Stainless Steel tube, ABS Box, ABS Plug-in Module, LGX Chassis, Rackmount
|
|
