Send Message
Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Patch Cable Series
Created with Pixso. LC/UPC To LC/UPC Fibre Patch Cords Duplex Fiber Cable

LC/UPC To LC/UPC Fibre Patch Cords Duplex Fiber Cable

Brand Name: Gezhi or OEM
Model Number: Duplex Fiber Cable
MOQ: 1 pieces
Price: USD >= 1 pieces $1.99
Delivery Time: 7 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Wavelength:
1310/1550nm
Return Loss:
50dB
Operating Temperature:
-40-70°C
Insertion Loss:
≤0.3dB
Clean End Face:
100% Clean,no Dust, No Water,no Scratch
Use:
FTTH FTTX
Insertion Loss:
0.25dB
Type:
Duplex Fiber Cable
Packaging Details:
inner box,Carton
Supply Ability:
1000 Piece/Pieces per Day
Highlight:

LC/UPC Duplex Fiber Cable

,

LC/UPC Fibre Patch Cords

Product Description

Product description

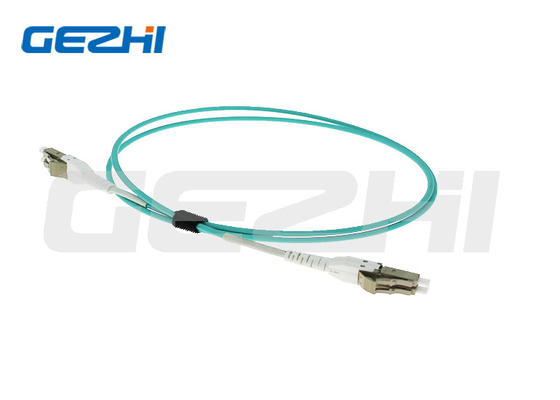

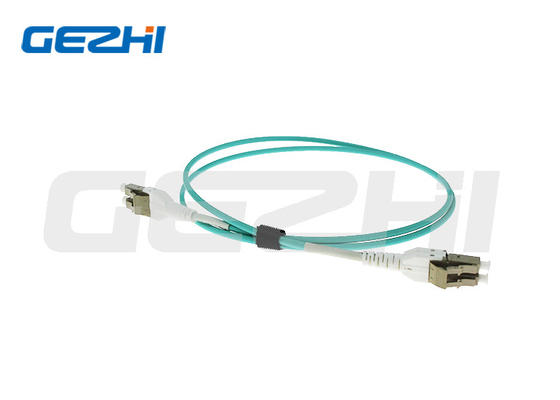

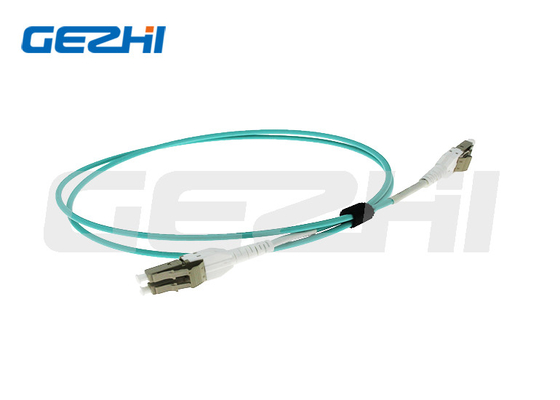

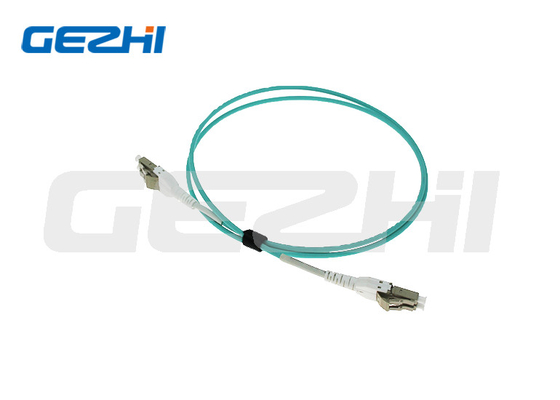

                                                    LC/UPC To LC/UPC Fibre Patch Cords Duplex Fiber Cable

GEZHI Photonics Patch cable are all-glass fibers supporting single-mode ligth propagation for many wavelength ranges like 460nm 630nm 780nm 980nm 1060nm 1950nm etc. Its features with low insertion loss, High stability and reliability which widely used in Optical Sensor, Research, Medical application.



LC/UPC To LC/UPC Fibre Patch Cords Duplex Fiber Cable 0LC/UPC To LC/UPC Fibre Patch Cords Duplex Fiber Cable 1

LC/UPC To LC/UPC Fibre Patch Cords Duplex Fiber Cable 2

LC/UPC To LC/UPC Fibre Patch Cords Duplex Fiber Cable 3



Features:

1, Good mechanical and environmental characteristics;
2, Flame retardant characteristics meet the requirements of relevant standards;
3, The mechanical characteristics of jacket meet the requirements of relevant standards;
4, Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;
5, Meet various requirements of market and clients


Applications:

◈ Telecommunications or Data communications
◈ Telecommunications, Military industry, Medical,
◈ CATV, LAN, MAN, WAN, Test & Measurement
◈ Systems Integration for Railway, Metro and Access Network
◈ Fiber to the Indoor (FTTX) Test

PRODUCT SPECIFICATIONS
Connector Type
LC/UPC-LC/UPC
Fiber Mode
OS2 9/125μm
Fiber Count
Duplex
Wavelength
1310/1550nm
Insertion Loss
≤0.25dB
Return Loss
UPC≥50dB
Cable Diameter
1.6mm
Cable Jacket
LSZH
Polarity
A to B
Operating Temperature
-40~75°C
Cable Parameters:
Fiber
Count
Cable
Dimensions
Weight
(kg/km)
Tension
Min. Bend Radius
Range of
Temperature
Long Term
Short Term
Dynamic
Static
1
1.7
6.8
80
150
20D
10D
-20 to +60

Ordering Information

Cable Diameter: 2.0mm,3.0mm
Connector: LC/SC/FC/ST/E2000/MTRJ/SMA
Polishing way: APC/UPC
Fiber type: SM 9/125, MM 50/125, 62.5/125, OM3,OM4
Sheath Material: PVC, LSZH
Length: XX Meter

FAQ
Q1:Can I have a sample order? What is your MOQ?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
