Fiber Optical Switches
Created with Pixso. Low Insertion Loss 1x4 T-Type Mechanical Optical Switch Fiber Optic Switch 1550nm Singlemode Non-latching LC/UPC
Low Insertion Loss 1x4 T-Type Mechanical Optical Switch Fiber Optic Switch 1550nm Singlemode Non-latching LC/UPC
  • name
  • name
  • name
  • name

Low Insertion Loss 1x4 T-Type Mechanical Optical Switch Fiber Optic Switch 1550nm Singlemode Non-latching LC/UPC

Brand Name: Gezhi or OEM
Model Number: 1x4T-SM-13/15-5AA
MOQ: 1 pieces
Price: USD >= 1 pieces $89
Delivery Time: 7 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Application:
Configurable OADM
Fiber Connector:
LC/UPC, LC/APC, SC/UPC Etc.
Control Type:
Latching Or Non-Latching
Voltage:
3V Or 5V
Port:
1x4T
Wavelength:
1260-1650nm
Packaging Details:
inner box,Carton
Supply Ability:
1000 Piece/Pieces per Day
Highlight:

1550nm Mechanical Optical Switch

,

Low Insertion Loss Mechanical Optical Switch

,

LC/UPC Fiber Optic Switch

Product Description

Product description



                              Low Insertion Loss 1x4 T-Type Mechanical Optical Switch Fiber Optic Switch



This 1x4 Mechanical Optical Switches has integrated electrical position sensor. Its based advanced design significantly which to reduce moving part position sensitivity, and with High stability, Reliability and low inserstion loss.

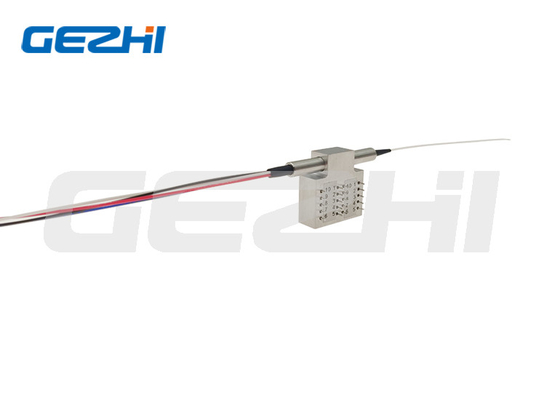

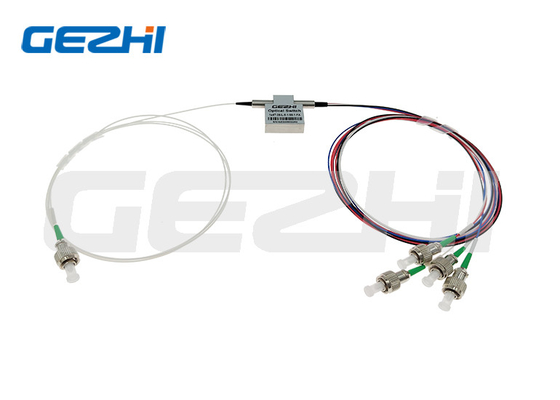

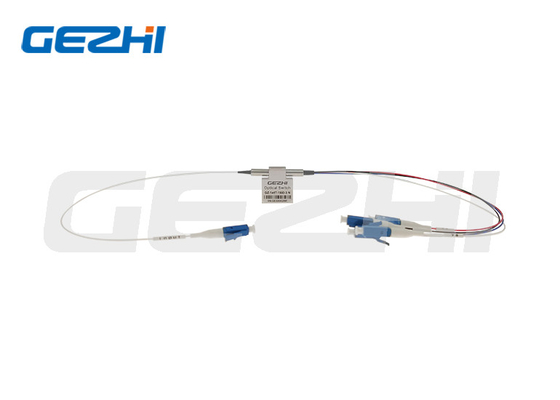

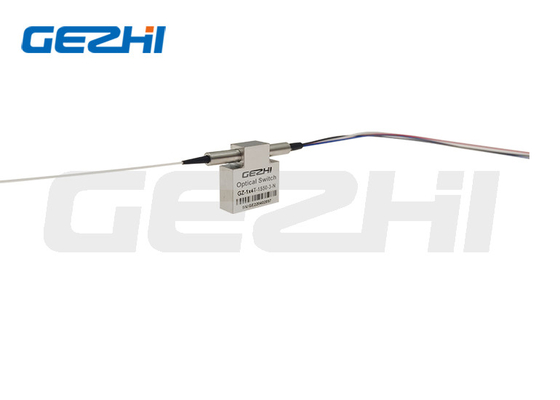

Low Insertion Loss 1x4 T-Type Mechanical Optical Switch Fiber Optic Switch 1550nm Singlemode Non-latching LC/UPC 0Low Insertion Loss 1x4 T-Type Mechanical Optical Switch Fiber Optic Switch 1550nm Singlemode Non-latching LC/UPC 1Low Insertion Loss 1x4 T-Type Mechanical Optical Switch Fiber Optic Switch 1550nm Singlemode Non-latching LC/UPC 2Low Insertion Loss 1x4 T-Type Mechanical Optical Switch Fiber Optic Switch 1550nm Singlemode Non-latching LC/UPC 3



Features



  • Low Insertion Loss

  • Low Optical Distortions

  • High Reliability

  • Epoxy-Free Optical Path

  • Application

  • Channel Blocking

  • System Monitoring

  • Configurable Add/Drop

  • Instrumentation

Performance

Electrical Driving

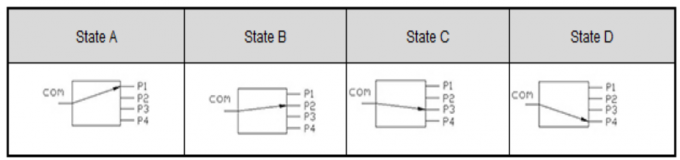

Type State Optical Route Electric Drive Status Sensor
Relay 1 (Pin) Relay 2 (Pin) Relay 1 (Pin) Relay 2 (Pin)
1 5 6 10 1 5 6 10 2-3 3-4 7-8 8-9 2-3 3-4 7-8 8-9
1x4 A COM-P1 Black - - GND V+ V+ GND - - close open open close open close clsoe open
Latching B COM-P2 Red V+ GND - - - - GND V+ open close close open close open open close
C COM-P3 Blue - - GND V+ - - GND V+ close open open close close open open close
D COM-P4 White V+ GND - - V+ GND - - open close close open open close close open
Non-Latching A COM-P1 Black - - - - V+ - - GND close open open close open close close open
B COM-P2 Red V+ - - GND - - - - open close close open close open open close
C COM-P3 Blue - - - - - - - - close open open close close open open close
D COM-P4 White V+ - - GND V+ - - GND open close close open open close close open





Route State

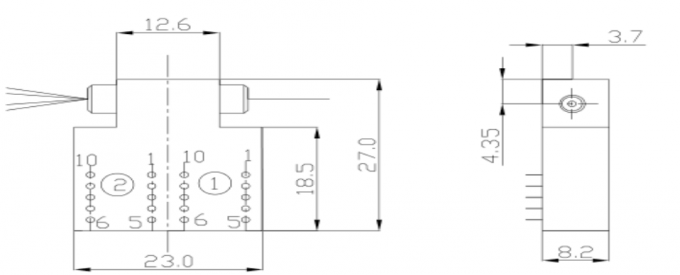

Dimension




1x4 T Type Switch Unit Typical
Operation Wavelength nm 850nm or 1310/1490/1550nm
Insertion Loss 1 dB <0.8
Wavelength Dependent Loss dB <0.2
Polarization Dependent Loss dB <0.2
Return Loss dB SM: >55 MM:>40
Cross Talk dB SM: >55 MM:>40
Switching Time ms Typical: 4 Max:10
Repeatability dB <±0.02
Durability Cycles >10 Million
Switching Type   Latching / Non-Latching
Optical Power Handling mW <500mW
Operating Voltage VDC 3V or 5V
Operating Temperature ℃ -5~+70
Storage Temperature ℃ -40~+85
Fiber Type / SM/MM Fiber
Package Dimension mm 27L x 23W x 8.2H



Ordering Information



Type Wavelength Control Model Volatage Power Fiber Type Fiber Diameter Fiber Length Connector
14T=1x4

780=780nm

980=980nm

850=850nm

1310=1310nm

1550=1550nm

13/15=1310/1550nm

S=Specify

L=Latching

N=Non-Latching

3=3V

5=5V

05=500mW

01=1W

02=2W

05=5W

10=10W

S=Specify

SM=SMF-28

M5= MM 50/125

M6=MM 62.5/125

S=Specify

25=250um

09=900um

S=Specify

05=0.5m

10=1m

15=1.5m

S=Specify

00=None

FP=FC/UPC

FA=FC/APC

SP=SC/UPC

SA=SC/APC

STP=ST/UPC

STA=ST/APC

LP=LC/UPC

LA=LC/APC

S=Specify

Q1:Can I have a sample order? What is your MOQ?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
