Product description

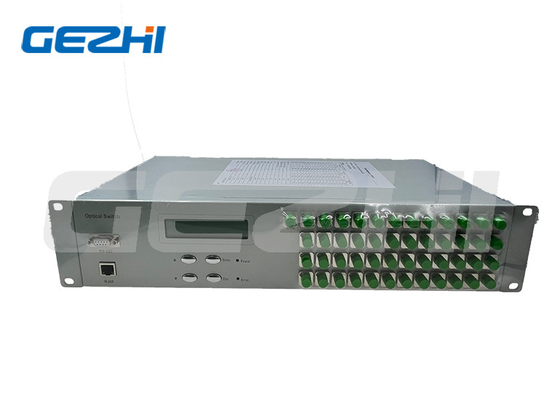

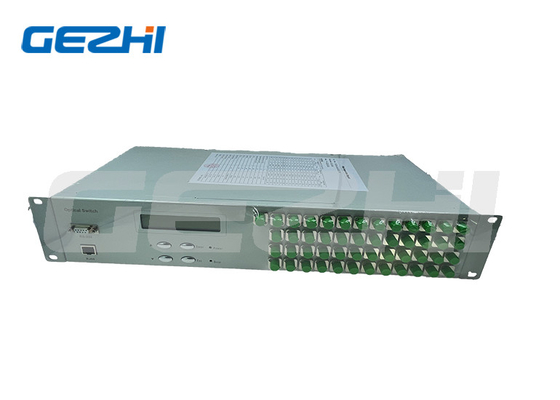

FSW 1x48 Fiber Optical Switch 19inch 2U Rackmount 1260~1650nm Single Mode
1x48 rack-mounted optical switch is a kind of optical path control device which has the function of optical path control and switch. it can choose working optical path switch manually with button and also control optical path switch or scan in frequency the optical switch which need to be monitored with rs 232 port and ethernet port.
Features
1.SerialNet, High Reliability, High Stability
2.LED display panel. Visual display, Convenient operation
3.RS232 Control and RJ45 Ethernet Remote Management
4.Channel and time interval of automatic scanning can be set up
5.Transparent transmission signal. High stability and reliability
Applications
1.FITL
2.Maintaining system
3.Automatic Measurement
4.Optical Network Remote Monitoring Cable Monitoring
Technical Index
| Parameter | Unit | 1x4 | 1x8 | 1x12 | 1x16 | 1x24 | 1x32 | 1x48 | 1x128 |
| Wavelength Range | nm | 1260~1650 or customized | |||||||
| Testing Wavelength | nm | 1310/1550 or customized | |||||||
| Insertion Loss (Max) | dB | ≤1.0 | ≤1.0 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤2.0 |
| Return Loss | dB | SM ≥ 50 | |||||||
| Crosstalk | dB | ≤-70 | |||||||
| PDL | dB | ≤0.05 | |||||||
| WDL | dB | ≤0.25 | |||||||
| TDL | dB | ≤0.20 | |||||||
| Repeatability | dB | ≤0.02 | |||||||
| Switching Time | ms | ≤10 (Adjacent Channel) | |||||||
| Optical Power | mW | ≤500 | |||||||
| Fiber Type | um | 9/125 | |||||||
| Connector | / | FC, SC, LC, ST, SMA or customized | |||||||
| Monitor Port | / | RJ45 & RS232 or customized | |||||||
| Working Power Supply (Plug Tyep) | V | AC:220V (50/60Hz) or DC:36V~72V | |||||||
| Operating Temperature | ℃ | -10~+60 | |||||||
| Storage Temperature | ℃ | -40~+85 | |||||||
| Rack mount Dimensions | mm | 1U L483XW230XH44.5 (Up to 16 channel) customization is available. | |||||||
|
2U L483XW230XH89 (Up to 36 channel) customization is available. 2U L483XW350XH89 (Up to 64 channel) customization is available. |
|||||||||
| 3U L483XW350XH133.5 (Up to 128 channel) customization is available. | |||||||||
| 4U L483XW350XH178 (Up to 256 channel) customization is available. | |||||||||
Panel Drawing
Front Panel

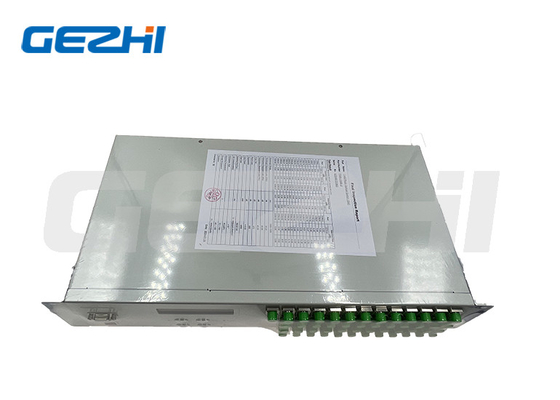

1xN≤16 Optical Switch 19”1U Rack mount
1xN≤36 Optical Switch 19”2U Rack mount

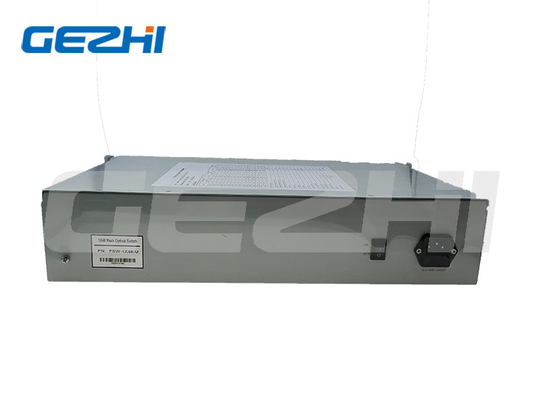

Back Panel
Ordering Information
OSW-XxX-X-XX-X-XX-XX-XX-XX
| OSW | Mode | Wavelength | Package | Fiber Type | Power Supply | Connector |
| 1x4 1x8 1x16 1x32 1x64 1x128 S=Specity |
S=SM M=MM |
85=850nm 13=1310nm 15=1550nm 85/13=850/1300 13/15=1310/1550nm 460nm 780nm 980nm S=Specify |
1U=1U Rackmount 2U=2U Rackmount 3U=3U Rackmount 4U=4U Rackmount S=Specify |
M5=50/125 M6=62.5/125 S9=9/125 S105/125 S200/240 S272/300 S365/400 S550/600 S=Specify |
AC=Single 85~265V +DC36~75V |
00=None FP=FC/UPC FA=FC/APC SP=SC/UPC SA=SC/APC LP=LC/UPC LA=LC/APC S=Specify |
