MxN Matrix Optical Switch Rackmount For Ring Network Testing Fiber Optical Component

Name: MxN Matrix Optical Switch Rackmount For Ring Network Testing Fiber Optical Component
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: GZ-MxN-MOS200x
Price: Negotiable USD
Availability: InStock

Brand Name:	Gezhi or OEM
Model Number:	GZ-MxN-MOS200x
MOQ:	1 pieces
Price:	USD >= 1 pieces $150
Delivery Time:	7 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Application:

Remote Monitoring

Connector:

SC/UPC ,LC/APC Or Customize

Switching Time:

≤8ms (Adjacent Channel)

Fiber Mode:

Singlemode Or Multimode

Wavelength:

1260~1650

Packaging Details:

inner box,Carton

Supply Ability:

1000 Piece/Pieces per Day

Highlight:

MxN Matrix Optical Switch

Ring network Testing Matrix Optical Switch

Product Description

Product description

MxN Matrix Optical Switch Rackmount for Ring network Testing of fiber optical component

MxN Matrix Optical Switch Rackmount,4x4, 8x8, 16x16, 32x32, Customized Wavelength, Fiber Type, LCD Display, RS232 Control and Ethernet Remote Management.

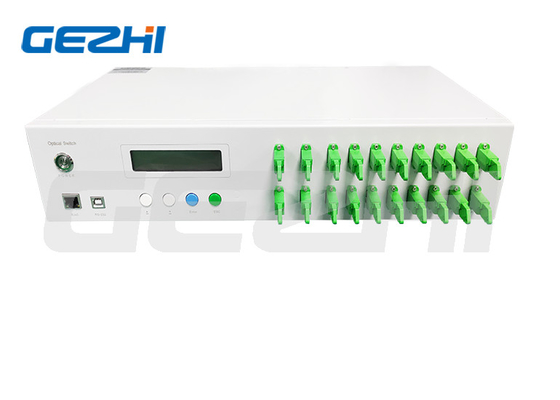

MxN Matrix Optical Switch Rackmount For Ring Network Testing Fiber Optical Component 0

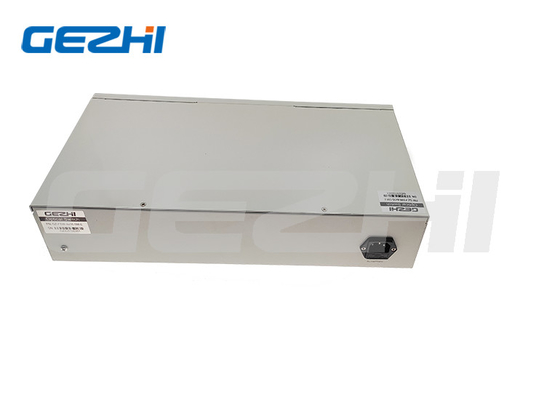

MxN Matrix Optical Switch Rackmount For Ring Network Testing Fiber Optical Component 1

Features

SerialNet, High Reliability, High Stability
LED display panel. Visual display, Convenient operation
Transparent transmission signal. High stability and reliability
Channel and time interval of automatic scanning can be set up
RS232 Control and RJ45 Ethernet Remote Management

Applications

FITL
Automatic Measurement
Optical Network Remote Monitoring Cable Monitoring and Maintaining system

Technical Index

Parameter	Unit	2x4	2x8	2x12	2x16	2x24	2x32	2x64	4x4	8x8	16x16
Wavelength Range	nm	1260~1650
Testing Wavelength	nm	1310/1550
Insertion Loss	dB	≤1.5	≤1.5	≤1.5	≤1.5	≤1.8	≤1.8	≤2.0	≤2.0	≤2.0	≤2.5
Return Loss	dB	SM ≥ 50
Crosstalk	dB	≤-55
PDL	dB	≤0.05
WDL	dB	≤0.25
TDL	dB	≤0.25
Repeatability	dB	≤0.02
Lifetime	times	>107
Switching Time	ms	≤8 (Adjacent Channel)
Optical Power	mW	≤500
Connector	/	FC, SC, LC, ST, SMA or customized
Monitor Port	/	RJ45 , RS232
Working Power Supply (Plug Tyep)	V	AC:220V (50/60Hz) or DC:36V~72V
Operating Temperature	℃	-10~+60
Storage Temperature	℃	-40~+85
Rackmount	mm	19”Rack mount 1U , 2U, 3U or 4U

Ordering Information OSW-XxX-X-XX-X-XX-XX-XX-XX

OSW

Mode

Wavelength

Package

Fiber Type

Fiber Diameter

Connector

2x4

2x8

2x64

4x16

16x16

20x20

S=Specity

S=SM

M=MM

85=850nm

13=1310nm

15=1550nm

85/13=850/1300

13/15=1310/1550nm

460nm

780nm

980nm

S=Specify

1U=1U Rackmount

2U=2U Rackmount

3U=3U Rackmount

4U=4U Rackmount

S=Specify

M5=50/125

M6=62.5/125

S9=9/125

S105/125

S200/240

S272/300

S365/400

S550/600

S=Specify

AC=Single 85~265V

DC=Single 36~72V

AA=Dual 85~265V

DD=Dual 36~72V

AD=AC85~265V+DC36~75V

00=None

FP=FC/UPC

FA=FC/APC

SP=SC/UPC

SA=SC/APC

LP=LC/UPC

LA=LC/APC

S=Specify

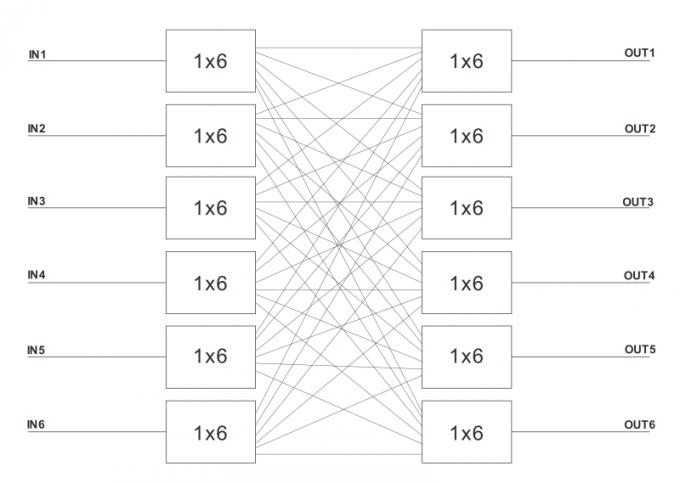

Sketch Map:


Q1:Can I have a sample order? What is your MOQ?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time?
A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
