Fiber Optic Line Protection OLP Module Optical Line Protection System OLP

Name: Fiber Optic Line Protection OLP Module Optical Line Protection System OLP
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: OLP-1:1-AA
Price: Negotiable USD
Availability: InStock

Brand Name:	Gezhi or OEM
Model Number:	OLP-1:1-AA
MOQ:	1 pieces
Price:	USD >= 1 pieces $10.00
Delivery Time:	7 Days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Network:

TCP, Ip, POE, GPRS, Wifi

Wavelength:

C-band Or Customized

Voltage:

3V Or 5V

Storage Temperature:

-40~+85(℃)

Control Type:

Latching Or Non-Latching

Packaging Details:

inner box,Carton

Supply Ability:

1000 Piece/Pieces per Day

Highlight:

Module Optical Line Protection system

Fiber Optic Line Protection OLP

Product Description

Production description

Fiber Optic Line Protection Olp Module Optical Line Protection System(OLP)

GEZHI provides 3 types of line protection: 1:1 line protection, 1+1 line protection and 1-1 line protection . Wavelengths and connectors can be customized to meet special control and applications.

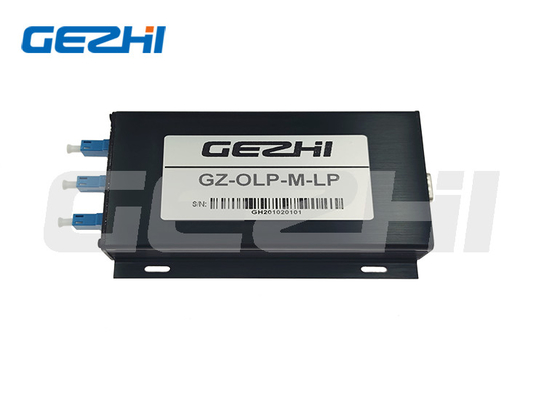

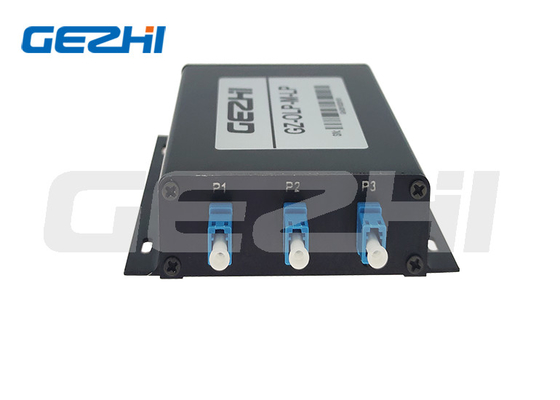

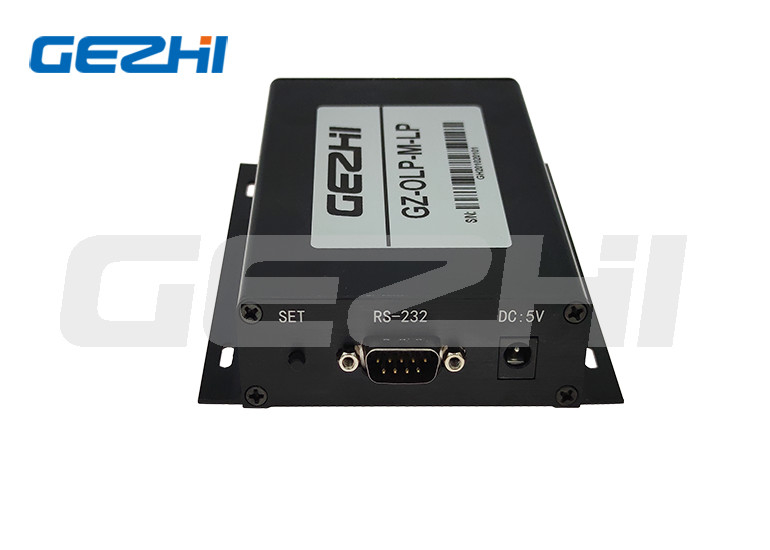

Fiber Optic Line Protection OLP Module Optical Line Protection System OLP 0 n

Features:

◆ Wide Wavelength Range

◆ Low Crosstalk

◆ High Stability, High Reliability

◆ Modularized Design

Specification

Technical Parameter

Parameters	Unit	OLP-1:1	OLP-1+1	OLP-1-1
Wavelength Range	nm	1260 ~ 1650
Test Wavelength	nm	1310 / 1550
Insertion Loss	dB	TX<1.2,RX<1.2	TX<4,RX<1.2	<1.2
Return Loss	dB	SM ≥ 45
Crosstalk	dB	SM ≥ 50
PDL	dB	≤ 0.20
WDL	dB	≤ 0.30
PD dark current	nA	＜1
PD responsivity	mA/W	24 ~ 40
PD report accuracy	dB	±0.5 (at -50 to 23 dBm)
Operating voltage	V	4.5 ~ 5.5
Operating current	mA	80 ~ 120
Operating Temperature	℃	-5 ~ +60
Storage Temperature	℃	-30 ~ +80
Dimension	mm	120×80×18

Odering information

Type

Fiber Type

Test Wavelength

Tube Type

Fiber Length
(Include connector)

Connector

Dimension

Optical Line Protection System Module
1:1 :OLP 1:1
1+1:OLP 1+1
1-1: OLP 1-1

X: Others

SM: SM, 9/125
X: Others

1310: 1310nm
1550: 1550nm
1310/1550:
1310/1550nm
X:Others

90:900um
X: Others

05: 0.5m±5cm
10: 1.0m±5cm
X: Others

OO:None
FP: FC/PC
FA: FC/APC
SP: SC/PC
SA: SC/APC
STP: ST/PC
STA: ST/APC
LP: LC/PC
LA: LC/APC
X: Others

01: 120×80×18(ABS)
X: Others

Q1:Can I have a sample order? What is your MOQ?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time
A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
