| Brand Name: | Gezhi or OEM |
| Model Number: | 48 CH-AAWG DWDM |
| MOQ: | 1 pieces |
| Price: | USD >= 1 pieces $10.00 |
| Delivery Time: | 7 Days |
Product description

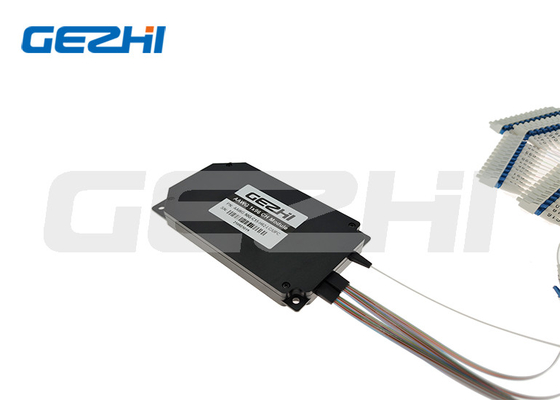

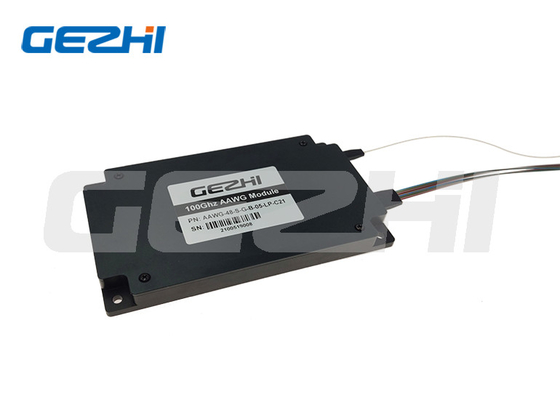

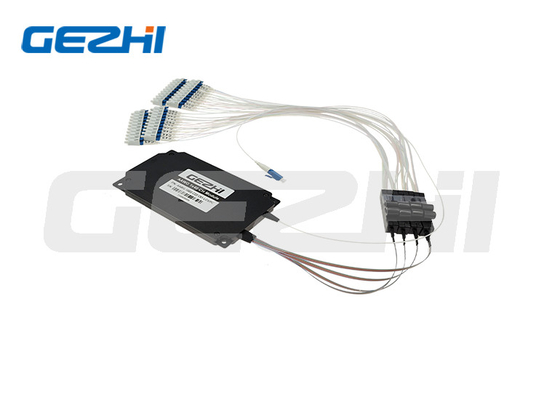

48CH 100g DWDM Athermal AWG Module for DWDM Networks
The AAWG DWDM (Athermal Arrayed Waveguide Grating Dense Wavelength Division Multiplexing) module is a fully passive WDMs based on silica-on-silicon planar technology that requires no electrical power and software. It operates at 50GHz or 100GHz channel spacing ITU Grid DWDM wavelengths from1526nmto 1565nm. The AAWG DWDM can be used to replace the filter-type DWDM Mux DeMux for cases wherenopower is available.
Feature
Low Insertion Loss and Low PDL
High isolation
Available up to 96 channels with compact design
High reliability and high stability
Telcordia GR-1209-CORE and GR-1221-CORE compliant
RoHS compliant
Technical Index
| Parameter | Unit | AAWG Module | ||||||||||
| Channel | CH | 32 | 40 | 48 | 80 | 96 | 32 | 40 | 48 | 80 | 96 | |
| Channel Spacing | GHz | 100 | 100 | 100 | 50 | 50 | 100 | 100 | 100 | 50 | 50 | |
| Chip Type | -- | Gaussian Type | Flat Top Type | |||||||||
| 1dB Channel Bandwidth | nm | >0.2 | >0.2 | >0.2 | >0.18 | >0.18 | >0.38 | >0.38 | >0.38 | >0.18 | >0.18 | |
| 3dB Channel Bandwidth | nm | >0.4 | >0.4 | >0.4 | >0.28 | >0.28 | >0.58 | >0.58 | >0.58 | >0.28 | >0.28 | |
| Insertion Loss | dB | <4.5 | <4.5 | <4.5 | <6.5 | <6.5 | <5.5 | <5.5 | <5.5 | <7.0 | <7.0 | |
| Adjacent Crosstalk | dB | >25 | >25 | >25 | >22 | >22 | >25 | >25 | >25 | >22 | >22 | |
| Non-adjacent Crosstalk | dB | >30 | >30 | >30 | >27 | >27 | >30 | >30 | >30 | >27 | >27 | |
| Total Crosstalk | dB | >22 | >22 | >22 | >20 | >20 | >22 | >22 | >22 | >20 | >20 | |
| Return Loss | dB | >40 | ||||||||||
| Ripple | dB | <0.7 | ||||||||||
| PDL | dB | <0.5 | ||||||||||
| PMD | ps | <0.5 | ||||||||||
| Chromatic Dispersion | Ps/nm | ±20 | ||||||||||
| Operating Temperature | ℃ | -5~+65 | ||||||||||
| Storage Temperature | ℃ | -40~+85 | ||||||||||
Chip type of Athermal AWG Module

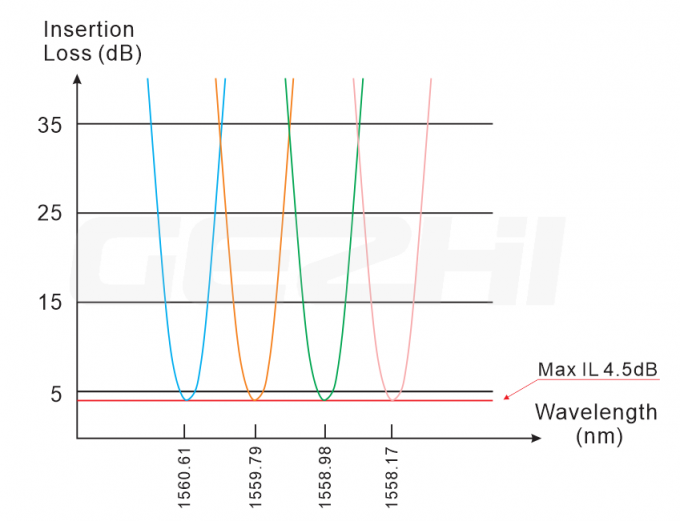

Gaussian Type
Low Insertion loss, High Isolation
Flat Top Type
Wide working band, High Signal Stability
Ordering Information AAWG-XXG-XX-X-X-X-XX-XXXX-XX-Customized Wavelength
| AAWG | Channel | Configuration | AWG Type | Package | COM Fiber Length |
Ribbon/Fan-out Fiber Length |
Connector |
|
050G 100G 200G |
32=32 CH 40=40 CH 48=48 CH 80=80 CH 96=96 CH S=Specify |
S=Single fiber D=Dual Fiber
|
F=Flat-top G=Gaussian |
B=Metal Box R=19”1U Rackmount S=Specify |
05=0.5m 10=1.0m S=Specify |
0505=0.5m/0.5m 1010=1.0m/1.0m |
00=none LP=LC/UPC LA=LC/APC SP=SC/UPC SA=SC/APC FP=FC/UPC FA=FC/APC S=Specify |
