| Brand Name: | GEZHI or OEM |
| Model Number: | patch OM3AA |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union |
GEZHI Photonics manufactures data center grade fiber optic MPO patch cords. The MPO connector uses a spring loaded sliding mechanism allowing the fiber patch cord to latch onto adapters providing a secure and reliable connection for network cabling in enterprise data centers, backbone, colocation facilities, server farms, cloud storage networks, and telecommunication rooms. Each assembly is 100% factory tested to meet IEC 61753-1 standard.

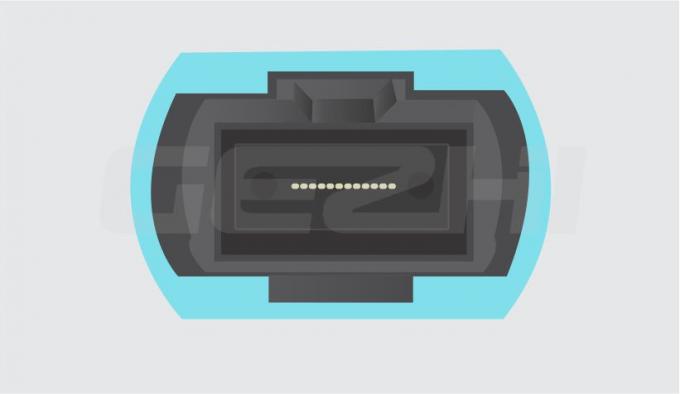

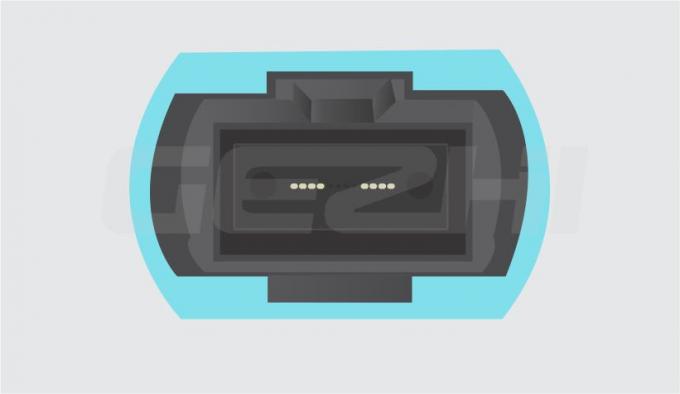

1. Custom Fiber Count
2. Custom Polarity
To properly send data over fiber cable, a link’s transmit signal (Tx) at one end of the cable must match the corresponding receiver (Rx) at the other end. And the role of polarity, which defines the direction that the signal travels, is to make sure that this correspondence is maintained. Fiber polarity is one area that seems to cause a lot of confusion in our industry – especially when it comes to multifiber MPO solutions used in parallel optic applications.
MPO connectors also include a key on the top side of the connector and a white dot on the side to indicate the location of Position 1. The orientation of the key is critical when it comes to polarity.
3. Custom Connectors
Specifications
Ordering information
| Type | Mode | Fiber Count | Polarity | Grad | Connector A | Connector B | Polishing | Length |
| PCMPO | 2=OS2 3=OM3 4=OM4 5=OM5 |
08=8 Fibers 12=12 Fibers 24=24 Fibers 36=3x12 Fibers 48=4x12 Fibers 96=8x12 Fibers 144=12x12 Fibers |
A=Type A B=Type B C=Type C |
S=Standard E=Elite |
M=Male F=Female |
M=Male F=Female |
P=UPC A=APC |
01=1M 02=2M 05=5M 10=10M S=Specify |
Packing
AFQ
Q1:Can I have a sample order? What is your MOQ?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
|
|
