| Brand Name: | GEZHI or OEM |
| Model Number: | GZ-Patch Cord |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

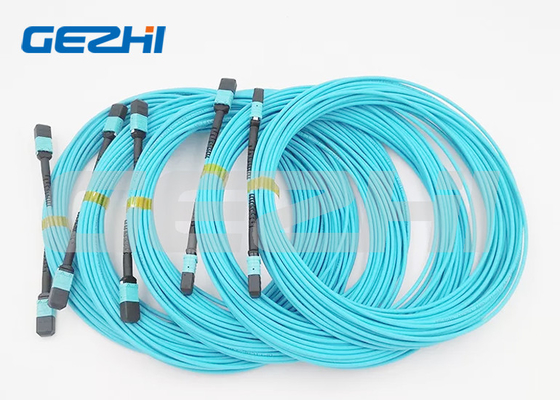

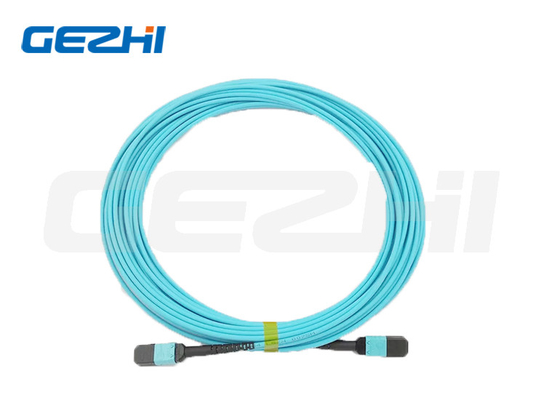

Gezhi MPO Cable 12 Fibers Type B Multimode OM4 Fiber Patch Cord
Product Description
Fiber optic patch cord is a fiber optic cable capped at both ends with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch or, optical transmitter, receiver, the terminal box, and other telecommunication equipment, featuring low insertion loss and high return loss.
Gezhi provides extensive range of fiber patch cable, simplex or duplex , terminated with state-of-the-art connectors and available in any combination of ST, SC, LC, FC and MPO/MTP with PC, UPC or APC polish types.
Features
1. Low insertion loss, high return loss
2. Excellent in repeatability and exchangeability
3. 100% Insertion, Return Loss, End Face and Interference inspection
4. Excellent mechanical endurance
5. High credibility and stability
6. Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard
7. LSZH or OFNR(Plenum) available
Application
1.CATV system and FTTX
2.Data Center
3.Optical fiber video transmission
4.Fiber multimedia system
5.Fiber Ethernet
Specification
|
Model
|
Single Mode (G652D,G657A1,G657A2,G657B3)
|
Multi Mode (OM1,OM2,OM3,OM4)
|
|
|
Polish
|
UPC
|
APC
|
UPC
|
|
Insertion Loss
|
≤0.30dB
|
≤0.20dB
|
≤0.20dB
|
|
Return Loss
|
≥50dB
|
≥60dB
|
≥30dB
|
|
Test Wavelength
|
1310/1550nm
|
850/1300nm
|
|
|
Durability(500 Matings)
|
≤0.2dB
|
||
|
Operating Temperature
|
-45℃~+70℃
|
||
|
Cable Diameter
|
2.0mm, 3.0mm
|
||
| Cable Length | 1m,2m,3m; Customized | ||
| Cable Jacket | PVC,LSZH,OFNR,OFNP | ||
Note: Maximum Bandwidths of Different Multimode Fibers
OM1 – 62.5/125um – 10GBit up to 33 meters (108 feet)
OM2 – 50/125um – 10GBit up to 82 meters (270 feet)
OM3 – 50/125um, Laser Optimized – 10GBit up to 300 meters (984 feet)
OM4 – 50/125um, Laser Optimized – 10GBit up to 550 meters (1805 feet)
|
|
