| Brand Name: | GEZHI or OEM |
| Model Number: | GZ-FSW-1x2-XM-FA |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

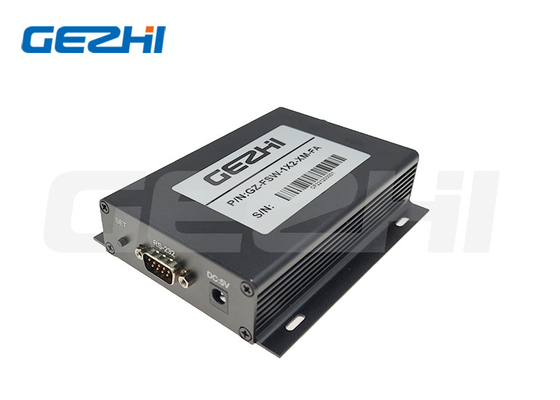

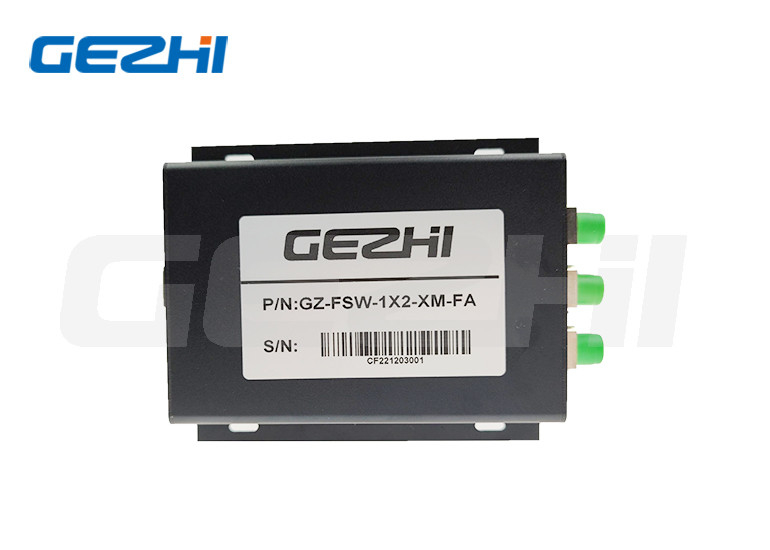

RS-232 control 1x2 Mechanical Optical Switch Module 850nm Latching Optic Switches
Product Description
Gezhi 1x2 mechanical optical switch Module is a kind of light path control equipment. It can realize multi-channel fiber optic light path switching. In the optical fiber transmission system, it is used for multi-channel fiber monitoring, multi light source/detector selection, and optical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and related component test, outdoor cable test and multi-spot optical sensors monitoring system.

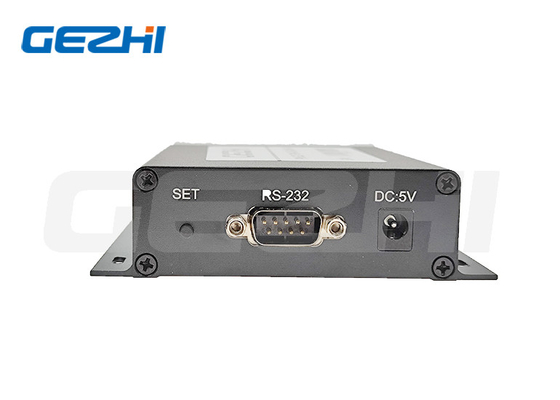

The module is controlled by buttons and RS-232 interface, and the module optical path can be selected by the software of host computer.
Applications
Features
Specification
| Parameters | GZ-FSW-1x2 | ||
| Wavelength Range | nm | 532~1064nm | 1260～1650 |
| Operating avelength | nm | 532/650/780/850/980 nm | 1310/1490/1550/1625 nm |
| Insertion Loss | dB | Typ:0.8 Max:1.2 | Typ:0.6 Max:0.8 |
| Return Loss | dB | MM≥30 SM≥50 | |
| Crosstalk | dB | MM≥35 SM≥55 | |
| PDL | dB | ≤0.05 | |
| WDL | dB | ≤0.25 | |
| TDL | dB | ≤0.25 | |
| Repeatability | dB | ≤±0.02 | |
| Power Supply | v | 5V / 500mA | |
| Control Mode | / | Button, RS232 | |
| Lifetime | times | ≥107 | |
| Switch Time | ms | ≤8 | |
| Transmission Power | mW | ≤500 | |
| Operating Temperature | ℃ | -20～+70 | |
| Storage Temperature | ℃ | -40～+85 | |
| Weight | g | 16 | |
| Dimension | mm | (L)104.0×(W)120.0×(H)28 | |
Order Information
GZ-FSW-1x2-x-xx-x-x-xx
| Mode | Wavelength | Control Model | Fiber Type | Connector |
|
S=SM M=MM |
85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm X=Others |
L=Latching N=Non- Latching |
5=50/125 6=62.5/125 9=9/125 X=Others |
FP=FC/PC FA=FC/APC X:Others |
