| Brand Name: | GEZHI or OEM |
| Model Number: | GZ-OLP |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

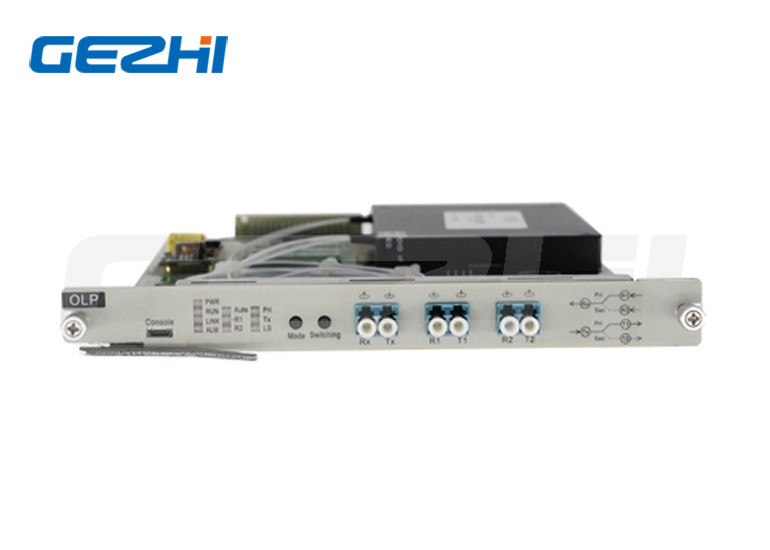

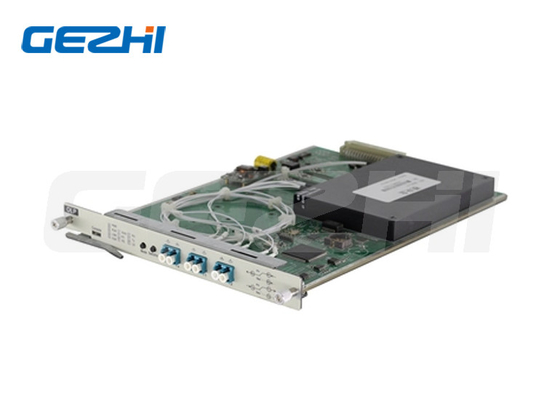

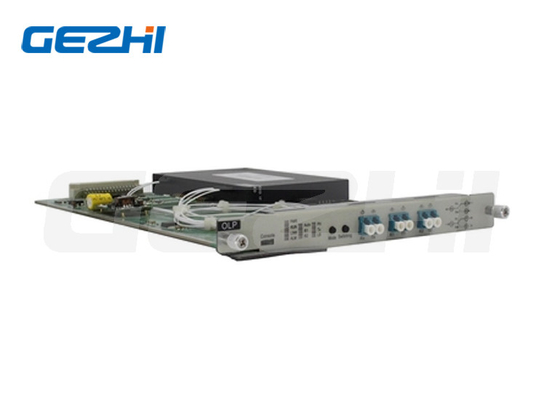

5W OLP Module Optical Line Protection System 30ms Auto Switch High Switch Speed
Product Description
Gezhi's Optical Line Protection (OLP) system is a new optical line protection subsystem developed with advanced technology of dynamic and synchronous optical switches. When communication quality is lower or equipment breaks down due to accidental fracture or bigger loss of optical fiber in the optical transmission line, the OLP system can switch the primary line to the secondary line within a short time, to ensure normal operation communication of line, which effectively prevent fiber or equipment fault and shorten the recovery time from hours to milliseconds.
Optical Line Protection switch provides both Manual and Automatic switching mode. In Manual mode, the system switches optical path only based on the commands from user.
In the Automatic mode, the system switches based on the power level detected and the preset threshold. Under automatic mode, the system can be set to be revertive or Non-revertive modes.
Under Revertive mode, the system switches back to the working pat.
Applications
* Optical line automatic switching protection
* Real-time power monitoring
* Support automatic switching of primary and secondary routes
Features
* Support automatic switching of primary and secondary routes
* Support manual and automatic switching modes
* Lowswitching time <30ms
* Low insertion loss: <5.5dB
* Support automatic return to the Primary
* Support manual, automatic working mode settings
* Support for switching threshold settings
Product Specification
|
Parameter |
1:1 |
1+1 |
Unit |
|
|---|---|---|---|---|
| Operating Wavelength | 1310±50nm, 1550±50nm | nm | ||
| Optical Power Range | ＋23～-50 | dbm | ||
| Accuracy of Optical Power | ±0.25 | db | ||
| Detection Light Power Resolution | ±0.01 | db | ||
| Return Loss | ≥55 | db | ||
| Polarization Dependent Loss | ≤0.05 | db | ||
| Wavelength Dependent Loss | ≤0.1 | db | ||
| Insertion Loss |
Tx≤1.2dB RX≤1.2dB |
Tx≤4dB RX≤1.2dB |
db | |
| Switch Speed | <30 | <15 | ms | |
| Dimension | 191 (W) x 253 (D) x 20 (H) | mm | ||
| Environment | Operating Temperature | -10℃～+60℃ | ℃ | |
| Storage Temperature | -40℃～+85℃ | |||
| Relative Humidity | 5%~95% Non-condensing | |||
| Power Consumption | ≤5 | W | ||
Video
|
|
