| Brand Name: | GEZHI or OEM |
| Model Number: | GZ-1x1-13/15LL |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union |

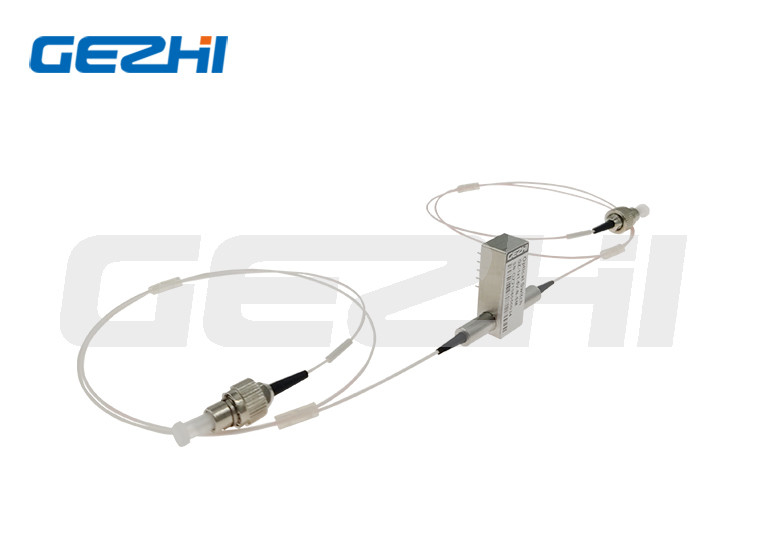

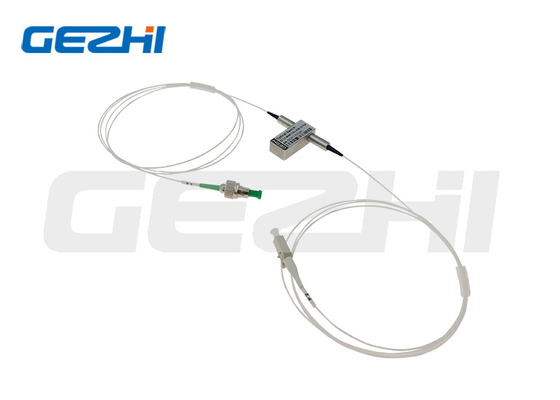

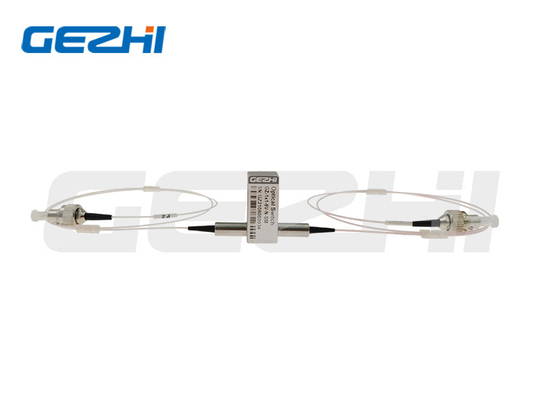

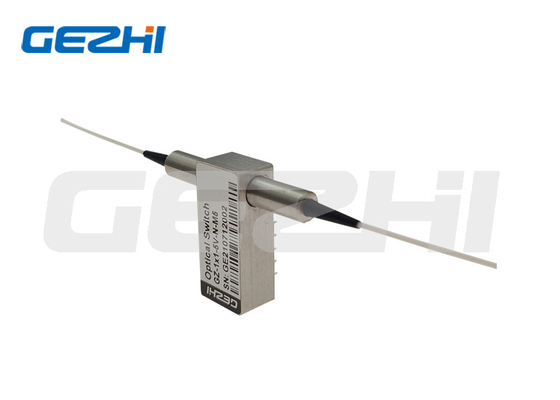

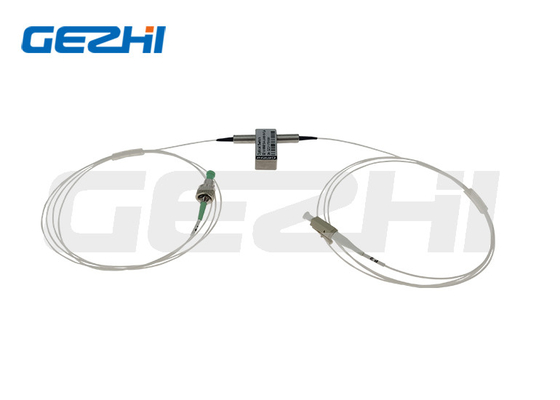

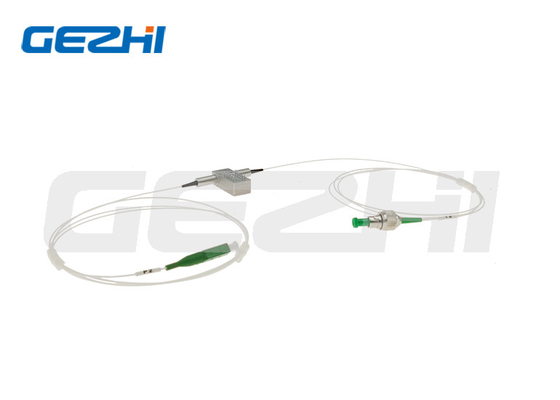

1625/1650nm Mechanical Optical Switch Low Crosstalk 1x1 FC APC
1x1 Optical Switches
1x1 Mechanical Optical Switch is used to turn on and turn off optical signal. The 1x1 Mechanical Optical Switch is based on Advanced Optoelectronic Integrated Technology. With the development of optical communication, Optical Switch device is the key to a new generation of all-optical network in near future.
|
Features Highly Stable & Reliable
Short switching time Compact design, Miniature size Low Insertion Loss Wide operating wavelength Range Fail-Safe Latching and Non-latching Single mode or Multimode optional |
Applications System Monitor |
Specification
|
|
Pins
| Type | Optical Route | Electric Drive | State Sensor | ||||||
| 1×1 | Pin 1 | Pin 5 | Pin 6 | Pin 10 | Pin 2-3 | Pin 3-4 | Pin 7-8 | Pin 8-9 | |
| Non-Latching | CUT | -- | -- | -- | -- | Close | Open | Open | Close |
| P1-P2 | V＋ | -- | -- | GND | Open | Close | Close | Open | |
| Latching | CUT | -- | -- | GND | -- | Close | Open | Open | Close |
| P1-P2 | V＋ | GND | -- | -- | Open | Close | Close | Open | |
Order Information
GZ-1×1-13/15
| Mode | Wavelength | Voltage Type | Control Model | Fiber Type | Fiber Diameter | Fiber Length | Connector |
| S=SM M=MM |
85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm X=Others |
3=3V 5=5V |
L=Latching N=Non- Latching |
5=50/125 6=62.5/125 9=9/125 X=Others |
25=250um 90=900um 20=2.0mm 30=3.0mm X=Others |
1=1m 2=1.5m X=Others |
0=None X=Others |
Optical Route
Mechanical Drawing
Our Certificates
FAQ
Video
|
|
