| Brand Name: | GEZHI or OEM |
| Model Number: | GZ-MC-10/100/1000BASE-DF |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

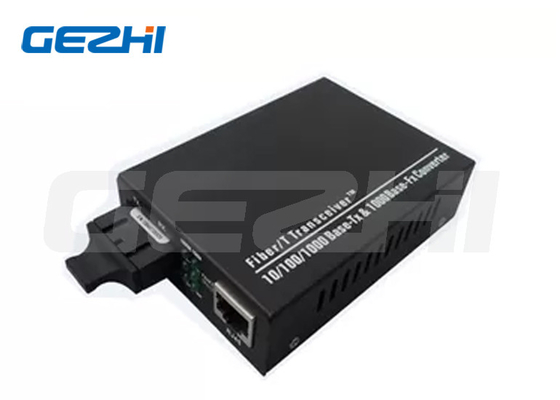

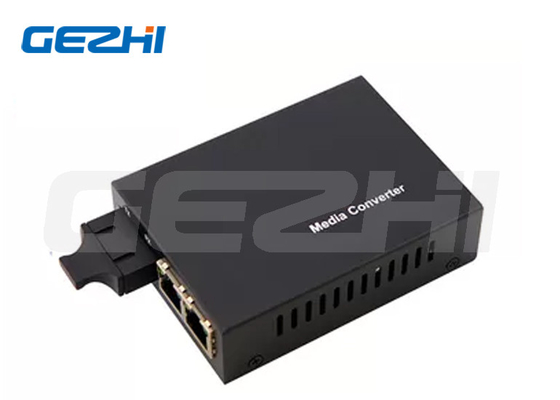

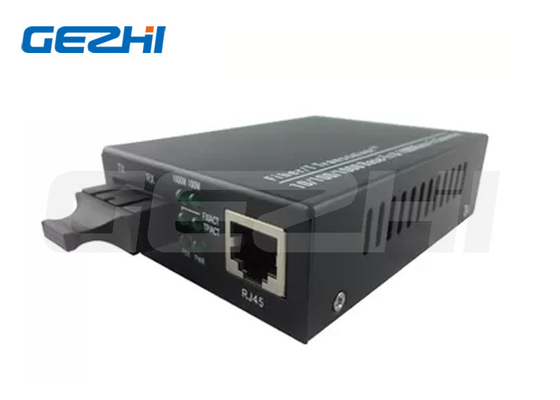

10 100 1000Base TX To 1000Base FX Media Converter , SM Duplex SC Media Converter
DESCRIPTION
10M/100M/1000M Auto-Negotiation TX to FX Fiber Opitc Media Converter with SC Connector for Singlemode Duplex fiber, 1310 nm, 20km range, with external Power Supply, Standalone.
| FEATURES |
Half or full duplex auto-negotiation. 10/100/1000 Mbps auto-negotiation for copper port. Auto MDI/MDI-X on copper port. Plug-and-play installation. Extend network distance up to 100 km. SC/FC/ST fiber port optional External power supply. 6 Easy-to-view LED Indicators Build in 14slot media converter chassis. |
| APPLICATION |
Local Area Networks (LAN). Enterprise Networks. Campus Networks. Fiber to the Building (FTTB). Fiber to the Curb (FTTC). Point-to-point fiber networks. |
MORE SPECIFICATION
| Distance | 2km | 20km |
| Connector | SC/ST | SC |
| Fiber Type | Multi-mode | Single-mode |
| Wavelength | 850/1310nm | 1310nm |
| Max TX PWR(dBm) | ≥-10 | ≥-10 |
| Sensitivity(dBm) | ≤-24 | ≤-25 |
| Link Budget(dBm) | ≥11 | ≥25 |
SHIPMENT & DELIVERY
1.International Express: DHL, Fedex, UPS, EMS, UPS, TNT and etc.
2.Payment: T / T, Western Union, Paypal and so on.
3.Packing Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.
GUARANTEE
1. Brand new.
2.OEM/ODM is available.
3.100% through quality test and aging test.
4.3 years warranty(From the date of shipment)
|
|
| Brand Name: | GEZHI or OEM |
| Model Number: | GZ-MC-10/100/1000BASE-DF |
| MOQ: | 1pc |
| Price: | Negotiable |
| Packaging Details: | Paper box |
| Payment Terms: | T/T, Western Union |
10 100 1000Base TX To 1000Base FX Media Converter , SM Duplex SC Media Converter
DESCRIPTION
10M/100M/1000M Auto-Negotiation TX to FX Fiber Opitc Media Converter with SC Connector for Singlemode Duplex fiber, 1310 nm, 20km range, with external Power Supply, Standalone.
| FEATURES |
Half or full duplex auto-negotiation. 10/100/1000 Mbps auto-negotiation for copper port. Auto MDI/MDI-X on copper port. Plug-and-play installation. Extend network distance up to 100 km. SC/FC/ST fiber port optional External power supply. 6 Easy-to-view LED Indicators Build in 14slot media converter chassis. |
| APPLICATION |
Local Area Networks (LAN). Enterprise Networks. Campus Networks. Fiber to the Building (FTTB). Fiber to the Curb (FTTC). Point-to-point fiber networks. |
MORE SPECIFICATION
| Distance | 2km | 20km |
| Connector | SC/ST | SC |
| Fiber Type | Multi-mode | Single-mode |
| Wavelength | 850/1310nm | 1310nm |
| Max TX PWR(dBm) | ≥-10 | ≥-10 |
| Sensitivity(dBm) | ≤-24 | ≤-25 |
| Link Budget(dBm) | ≥11 | ≥25 |
SHIPMENT & DELIVERY
1.International Express: DHL, Fedex, UPS, EMS, UPS, TNT and etc.
2.Payment: T / T, Western Union, Paypal and so on.
3.Packing Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.
GUARANTEE
1. Brand new.
2.OEM/ODM is available.
3.100% through quality test and aging test.
4.3 years warranty(From the date of shipment)
