| Brand Name: | GEZHI or OEM |
| Model Number: | GZ-CW-SFP-80KM |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

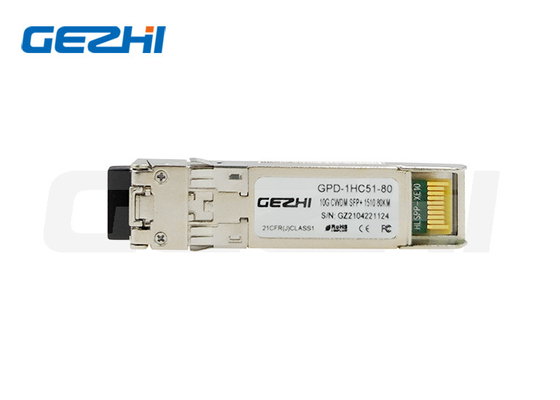

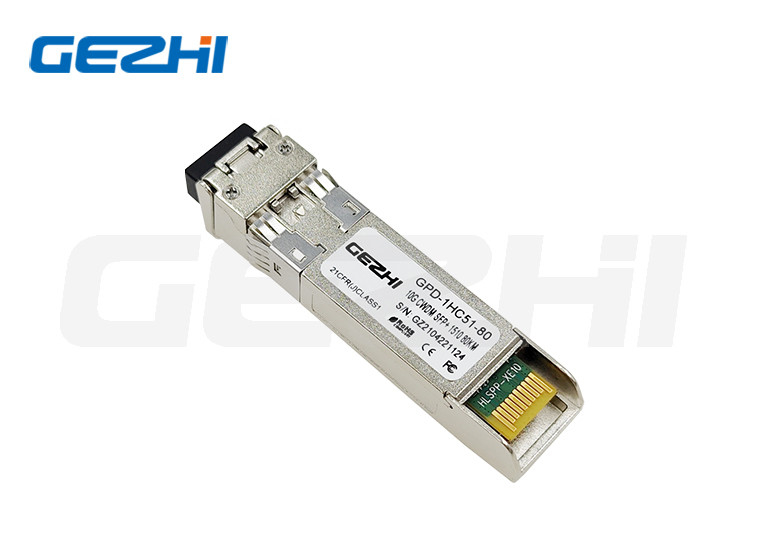

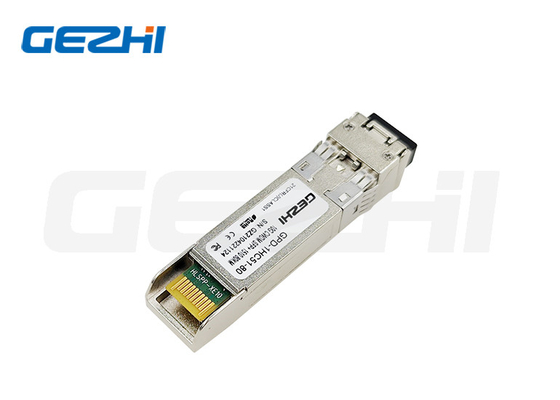

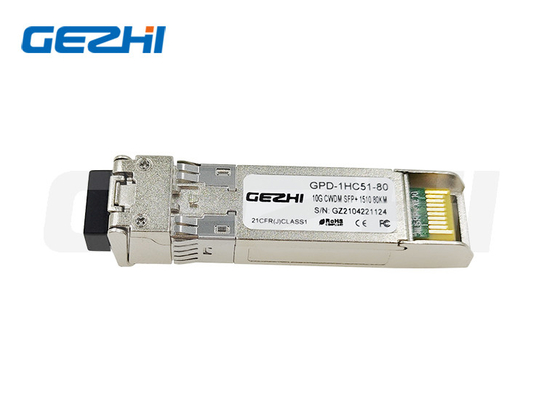

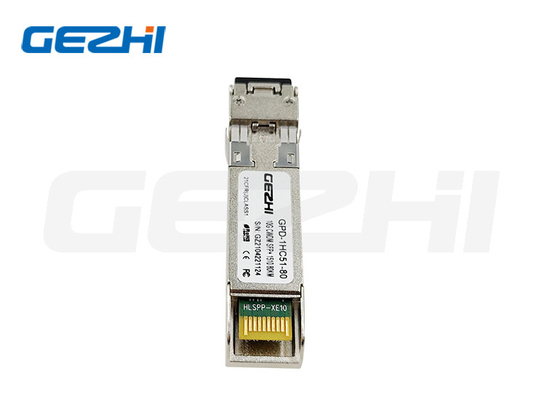

10G CWDM SFP Transceiver Module 1410 - 1610nm 10GBASE 80KM LC/UPC Connector
Product Description
Gezhi CWDM 10Gbps SFP+ transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 40km. This transceiver consists of two sections: The transmitter section incorporates a CWDM EML laser. And the receiver section consists of a APD photodiode integrated with a TIA.
Product Feature
Application
CWDM Transceiver
| CWDM SFP | ||||
| CWDM SFP 1G/2G | (1270nm-1610nm) | 40/80/120km | CWDM SFP | 0-70℃ |
| CWDM SFP 4.25G | (1270nm-1610nm) | 40km& 80km | CWDM SFP | 0-70℃ |
| CWDM SFP+(10G) | ||||
| CWDM SFP 10G LR | (1270-1330nm) | 10km | CWDM SFP+ | 0-70℃ |
| CWDM SFP ER | (1470-1610nm) | 40km | CWDM SFP+ | 0-70℃ |
| CWDM SFP ZR | (1470-1610nm) | 80km | CWDM SFP+ | 0-70℃ |
Optical Characteristics
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | λ-7.5nm | λ | λ+7.5nm | nm | 1 |
| Ave. output power (Enabled) | PAVE | 0 | 4 | dBm | 2 | |
| Side-Mode Suppression Ratio | SMSR | 30 | dB | |||
| Extinction Ratio | ER | 9 | dB | |||
| RMSspectral width | Δλ | 1 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 50 | ps | |||
| Dispersion penalty | TDP | 3 | dB | |||
| Relative Intensity Noise | RIN | -128 | dB/Hz | |||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | λ | 1260 | 1620 | nm | ||
| Receiver Sensitivity | PSEN1 | -24 | dBm | 3 | ||
| Sensitivityover 80Km fiber | PSEN2 | -20 | dBm | 3 | ||
| Overload | PAVE | -7 | dBm | |||
| LOS Assert | Pa | -35 | dBm | |||
| LOS De-assert | Pd | -26 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1.The wavelength λ=1470nm~1610nm, Total 8 wavelengths,20nm spacing
2. Measured at 10.3125b/s with PRBS 231 – 1 NRZ test pattern.
3.Under the ER worst =9, measured at 10.3125 Gb/s with PRBS 231 - 1 NRZ test pattern for BER < 1x10-12
Package Dimensions
|
|
