| Brand Name: | GEZHI or OEM |
| Model Number: | GZ-SFP+ AOC |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

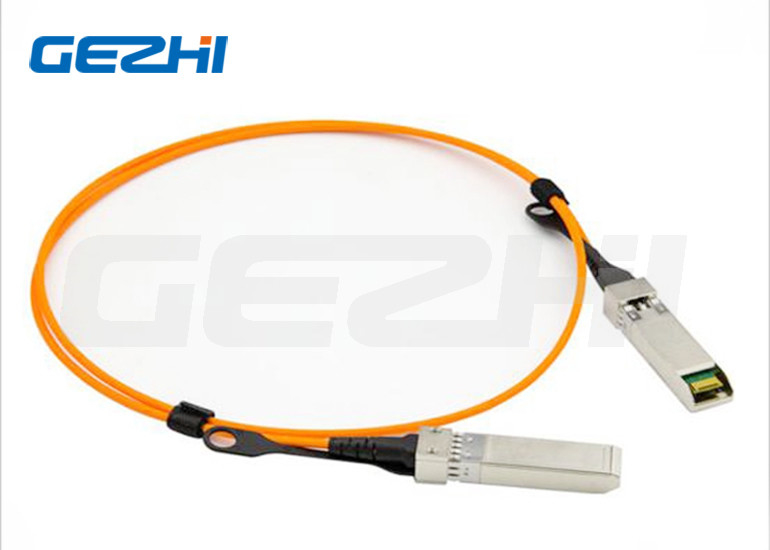

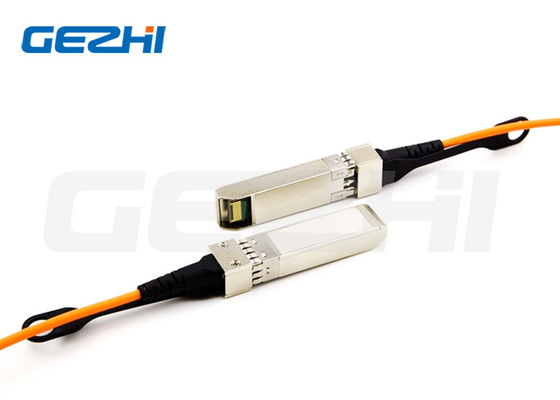

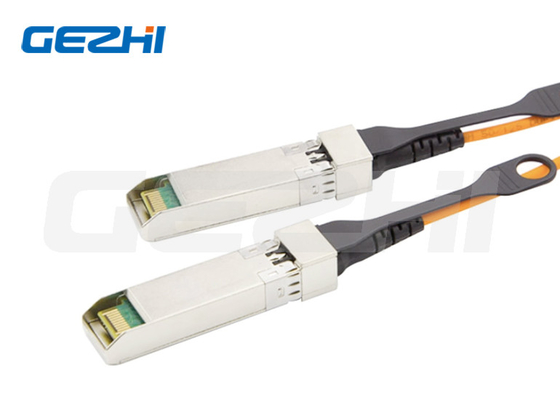

Hot Pluggable 10G SFP+ AOC Cable Active Optical Cable OM2 Cable Length 1m
Product Description
GEZHI-AA18MX-XXX SFP+ Active Optical Cable (AOC) is a 10Gbps solution that allows you to connect to 10G Ethernet and data centers. With support of MMF, this integrated cable can transmit 10Gbps data in each direction over distances up to 100m. In addition, this AOC is compliant with SFP+ MSA, and it provides low power consumption and lightweight feature.
Features
Performance Specifications
These values represent the damage threshold of the module. Stress in excess of any of the individual Absolute Maximum Ratings can cause immediate catastrophic damage to the module even if all other parameters are within Recommended Operating Conditions.
Technical Indexes
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
| Average Output Power | Po | -5 | -1 | dBm | ||
| Disable Power | Poff | -40 | dBm | |||
| Extinction Ratio | ER | 3.5 | dB | |||
| Output Centre Wavelength | λc | 840 | 860 | nm |
| Parameter | Symbol | Min | Typical | Max | Unit | |
| Data Input Swing Differential | VIN | 200 | 700 | mV | ||
| Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | |
| Transmit Disable Input | High | VIH | 2.0 | Vcc+0.3 | V | |
| Low | VIL | 0 | 0.8 | V | ||
| Parameter | Symbol | Min | Typical | Max | Unit | note |
| Centre Wavelength | λc | 840 | 850 | 860 | nm | |
| Receiver Sensitivity | Sen | -11 | dBm | 1 | ||
| Receiver Overload | Psat | 0.5 | dBm | 1 | ||
| LOS De-Assert | LOSD | -15 | dBm | |||
| LOS Assert | LOSA | -30 | dBm | |||
| LOS Hysteresis | 0.5 | 4 | dB | |||
| Receiver Reflectance | Rrx | -12 | dB |
| Parameter | Symbol | Min | Typical | Max | Unit | note |
| Data Output Swing Differential | Vout | 300 | 800 | mV | ||
| Rx-Los Fault | Vlf | 2.0 | VccHOST | V | ||
| Rx-Los Normal | Vln | 0 | 0+0.8 | V | ||
| Output rise and fall time | Tr, Tf | 28 | ps |
FAQ
1.How can I get the price?
-We usually quote within 24 hours after we get your inquiry (Except weekend and holidays). If you are very urgent to get the price, please Email us or contact us in other ways so that we can offer you a quote.
2.Can I buy samples before placing orders?
-Yes. Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order. Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
4.What is your payment term?
-T/T, Western Union, Money Gram, and PayPal. This is negotiable.
5.What is the shipping method?
-It could be shipped by sea, by air or by express (EMS, UPS, DHL,TNT, FedEx and etc). Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-a. We keep good quality and competitive price to ensure our customers' benefit;
-b. We respect every customer as our friend; we do business sincerely and make friend.
|
|
