1x8t Industrial Oem Fiber Network Switch For System Monitor

Name: 1x8t Industrial Oem Fiber Network Switch For System Monitor
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: GZ-1x8T
Price: Negotiable USD
Availability: InStock

Brand Name:	Gezhi or OEM
Model Number:	GZ-1x8T
MOQ:	1 pieces
Price:	USD >= 1 pieces $21
Delivery Time:	7 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Model Number:

1x8T-SM-13/15-5N

Place Of Origin:

Guangdong, China

Brand Name:

GEZHI Or OEM

Use:

System Monitor

Warranty Time:

3 Years

Wavelength:

1260-1650nm

Packaging Details:

inner box,Carton

Supply Ability:

1000 Piece/Pieces per Day

Highlight:

OEM fiber network switch

system monitor fiber network switch

OEM fiber ethernet switch

Product Description

product review

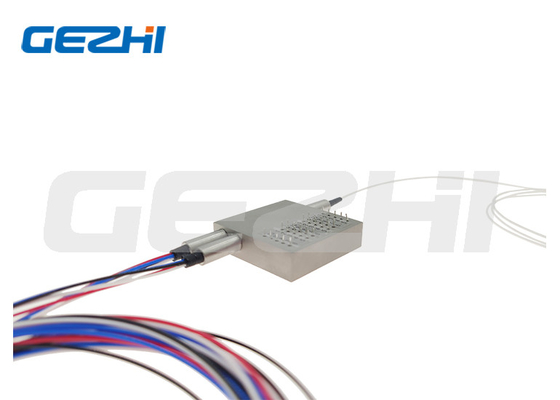

1x8T Optical Switches

GEZHI ’ 1x8 Opto-Mechanical Optical Switch (1×8 Fiber Optic Switch) support all wavelength at 1260nm~1650nm or 850nm Multimode wavelength, Its mini type with size 35x35x9mm. it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance. The optical switches are widely used for Transmitter and Receiver Protection,Protection, Optical Network,Network Test System and Instrumentations.

FEATURES AT A GLANCE

Low Insertion Loss

Fast Switching Time

High Stability & Reliability

Industrial Operating Temperature

(-40~+80℃ available)

Compact Size

Latching or Non-latching type

PRODUCT SPECIFICATIONS

Parameter	Unit	1x8T Optical Switch
Wavelength Range	nm	850±40/1300±40	1260~1650
Operating Wavelength	nm	850/1300	1310/1550
Insertion Loss	dB	<1.5	<1.5
Return Loss	dB	MM≥30 SM≥50
Crosstalk	dB	MM≥35 SM≥55
Polarization Dependent Loss	dB	0.05
WDL	dB	≤0.25
TDL	dB	≤0.25
Repeatability	dB	≤±0.02
Power Supply	V	3.0 or 5.0
Lifetime	times	≥107
Switch Time	ms	≤8
Optical Power	mW	≤500
Operating Temperature	℃	-20~+75 (-40~+85 available)
Storage Temperature	℃	-40~+85
Dimension	mm	(L)27.0×(W)12.0×(H)8.2

Test Enviroment

Our certificate

FAQ

Q1:Can I have a sample order? What is your MOQ?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time
A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
