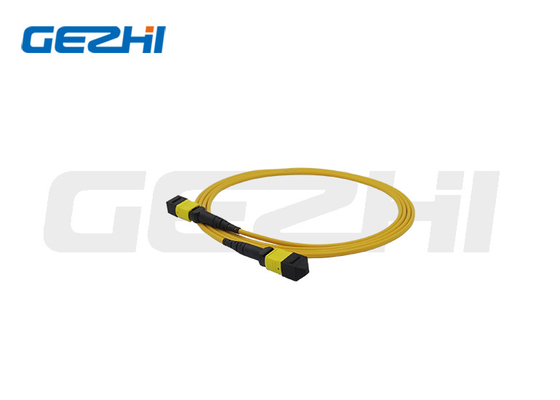

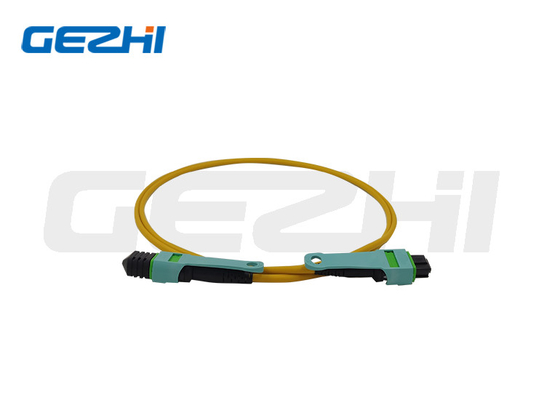

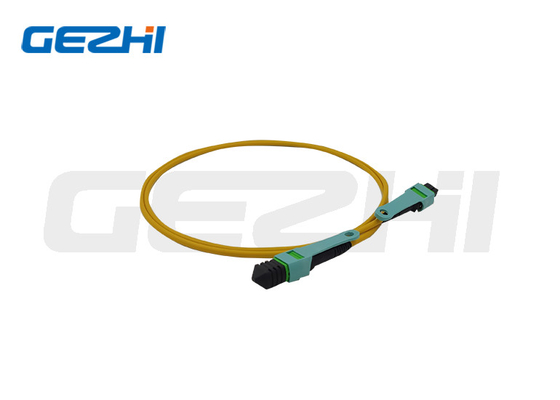

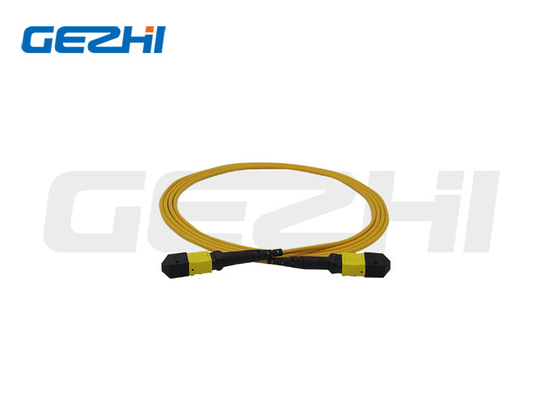

FTTX MTP MPO Trunk Multimode Fiber Patch Cable 12 - 144 Cores OS2

Name: FTTX MTP MPO Trunk Multimode Fiber Patch Cable 12 - 144 Cores OS2
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: patch OS2 XX
Price: Negotiable USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	patch OS2 XX
MOQ:	1pc
Price:	Negotiable
Delivery Time:	2-7 work days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Model Number:

MPO Patch Cord

Use:

FTTX

Length:

Customized Lengths(1m/2m/3m...+1

Connector:

MPO

Insertion Loss:

IL<0.2db

Certification:

RoHS

Warranty Time:

12 Months

Outer Jacket:

LSZH,OFNP ,OFNR

Return Loss:

≥50dB

Packaging Details:

2pcs in a foam with plastic Box

Supply Ability:

50000pcs per month

Highlight:

FTTX multimode fiber patch cable

OS2 multimode fiber patch cable

Product Description

MTP/MPO Trunk Cabe 12 cores/24cores/48 cores/72cores/96 cores/144cores OS2 Optical Fiber Patch Cord

Multimode 8/12/24 Core MPO/MTP OM3/OM4 MPO to LC Fiber Optic Patch Cord

MTP/MPO are used to interconnect cassettes, panels, or fan outs, it offered in fiber typs in standard 8 , 12 ,24 ,or 48 cores versions using a compact and rugged microcables structre. The compact cable optimize cableway use and improve airflow.These MPO/MTP cable are build with the highest quality components , Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical.

Features

1; The connectors are comply with IEC, Telcordia-GR-326-Core standards;

2; Different size & color boot option;

3; Low insertion loss; High return loss;

4; 100% interferometer measurement available;

Specification

Mechanical Properties
Item		Criteria	Conformance
IL After 50 Matings	MPO/MTP	≤0.3dB	GR-1435
IL After 500 Matings	LC/SC/FC/ST	≤0.2dB	IEC 61300-2-2
Min Bend Radius (Dynamic)		20*OD (Cable Diameter)
Min Bend Radius (Static )		15*OD (Cable Diameter)

Connector type	MTP/MPO-SC/LC	Fiber type	SM MM
Jacket material	PVC/LSZH	No. of Fiber	12 core, or customized
Cable length	1m,2m,5m,Customized	Application	FTTH FTTX

Manufacturing

Packing & Shipping

FTTX MTP MPO Trunk Multimode Fiber Patch Cable 12 - 144 Cores OS2 6
