| Brand Name: | GEZHI or OEM |
| Model Number: | 9/125μm OS2 single mode Fiber Optic Patch Cable |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

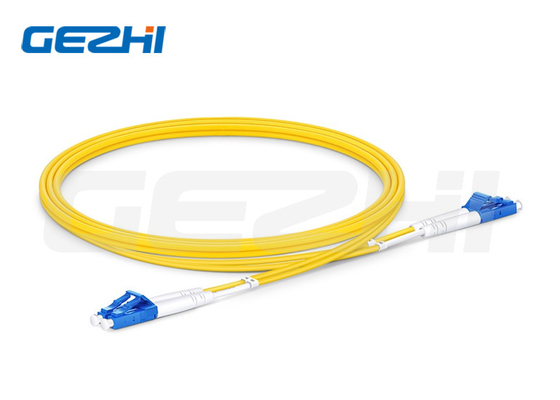

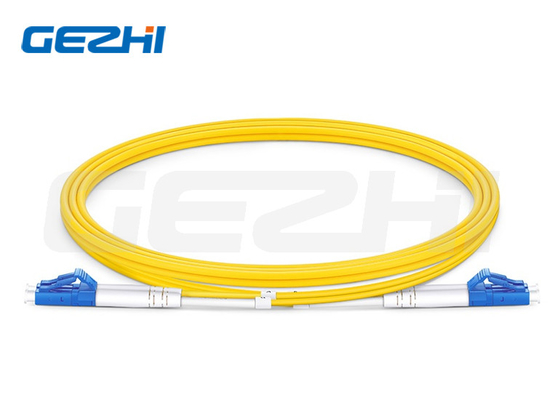

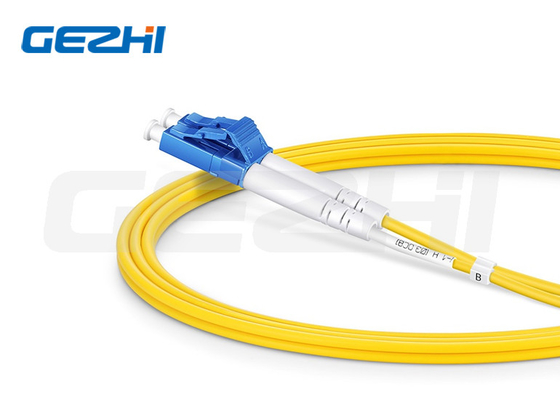

Good Price LC UPC to LC UPC Duplex OS2 9/125μm Single Mode PVC 2.0mm Tight-Buffered Fiber Optic Patch Cable
Product Description
The 9/125μm OS2 single mode bend insensitive fiber optic cable has less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high-density cabling in data centers, enterprise networks, telecom roomss, server farms, cloud storage networks, and interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas.
This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
Product Highlights
1.PVC (Riser) Flame-retardant Jacket

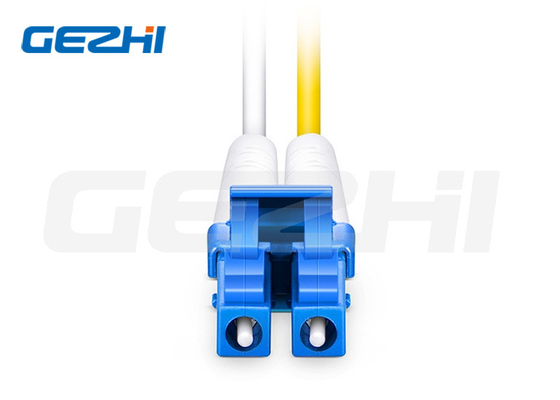

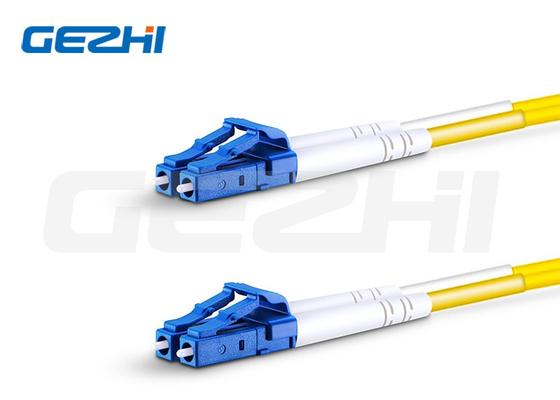

2.Precision Zirconia Ferrule Connectors Ensure Low Loss
3.Duplex Zipcord Enhances Mechanical Performance and Reduces Crimping Risk
4.G.657.A1 Bend Insensitive Fiber & 10mm Min. Bend Radius
5.Optical Testing Ensures Network Performance
6.Suits Aerial, Direct Buried, Duct Installation
Specifications
| Connector Type | LC UPC to LC UPC | Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
| Min. Bend Radius(Fiber Core) | 10mm | Min. Bend Radius (Fiber Cable) |
10/5D (Dynamic/Static) |
| Attenuation at 1310 nm | 0.36 dB/km | Attenuation at 1550 nm | 0.22 dB/km |
| Fiber Count | Duplex | Cable Diameter | 2.0mm |
| Cable Jacket | PVC | Polarity | A (Tx) to B (Rx) |
| Operating Temperature | -20~70°C | Storage Temperature | -40~80°C |
Features
1.Build a Stable and Robust Fiber Optic Network
High-quality tight-buffered cable protects the fiber optic core, and increases the strength and durability of the fiber.
2.Carrier-grade Cable Ensures Transmission Quality
Superior cable assemblies reduce light loss and easily meet your diverse cabling requirements.
3.Spine-Leaf Architecture Achieve Larger Network Scale
Reduce latency times of east-west traffic and provide a redundant path.
4.Meet the Various Indoor Installation Needs
Ideal for network cabinet connection, ceiling wiring and under-floor wiring in the data center.
Similar Products
FAQ
Q1:Can I have a sample order? What is your MOQ ?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales
representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time?
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
|
|
