| Brand Name: | GEZHI or OEM |
| Model Number: | 18 Channels CWDM Mux Demux |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

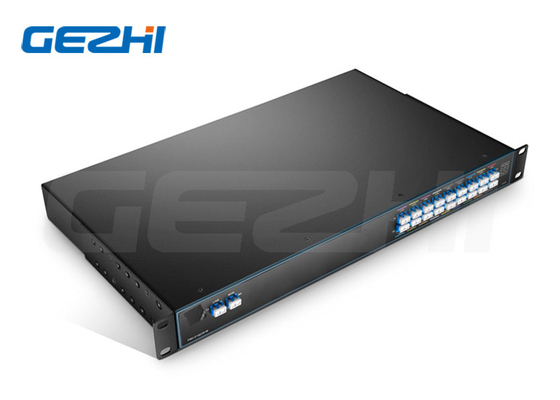

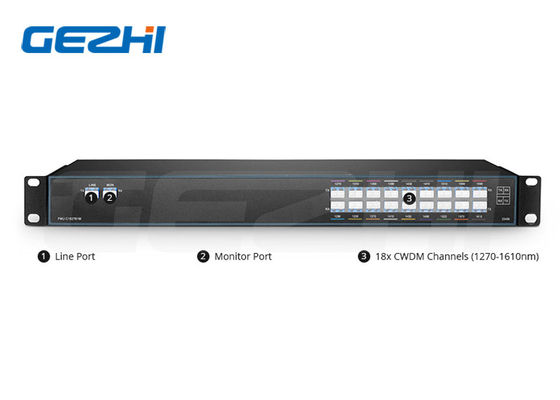

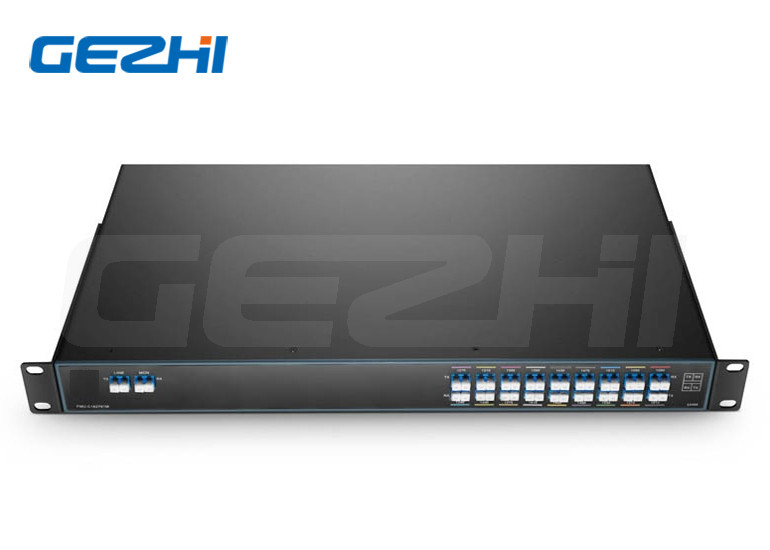

18 Channels CWDM Mux Demux, 1270-1610nm, with Monitor Port, 5.0dB Typical IL, LC/UPC, Dual Fiber, 1U Rack Mount
Specifications
The 18CH Mux Demux is a cost-effective, flexible, and suitable for short-distance transmission passive CWDM device based on TFF (Thin Film Filter). This unit can be used as either a multiplexer or de-multiplexer (mux/demux). In accordance with the ITU-T G.694.2, it maximizes the capacity of the C-band range.
In conjunction with Gezhi Photonics CWDM optical transceivers and OADM, etc., this Mux Demux supports a wide range of architectures from simple point-to-point to amplified ring configurations.
Product Highlights
Features
1.Data Center Interconnect for CWDM Network
Mux Demux interconnect seamlessly with transponder, muxponder, and third-party WDM products, to form cost-effective high-capacity CWDM tailored solutions.
2.Hybrid CWDM-DWDM System for Network Expansion
By using the 1530nm and 1550nm CWDM channels, it becomes possible to transmit multiple DWDM channels within a single CWDM channel, providing a solution that is both cost-effective and easily expandable.
Specifications
| Wavelength | 18 Channels 1270-1610nm | Channel Spacing | 20nm |
| Passband Ripple | ≤ 0.5dB | Center Wavelength Accuracy | ± 0.05nm |
| Channel Passband | ± 6.5nm | Technology | TFF (Thin Film Filter) |
| Insertion Loss | ≤ 5.5dB, 5.0dB Typical | Insertion Loss @ 1% Mon | ≤ 24.5dB |
| Return Loss | ≥ 45dB | Directivity | ≥ 50dB |
| Polarization Dependent Loss | ≤ 0.3dB | Polarization Mode Dispersion | ≤ 0.1ps |
| Channel Isolation | Adjacent ≥ 30dB | Non-adjacent ≥ 40dB | Operating -40 to 85°C (-40 to 185°F) Storage -40 to 85°C (-40 to 185°F) |
| Power Handling | ≤ 500mW | Dimensions (HxWxD) | 1.73"x19"x10.28" (44x481.8x261.2mm) |
FAQ
Q1: What's the Lead time?
A1: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales
representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q2: What is your warranty time?
A2: 3 years' warranty.
Q3:Can I have a sample order? What is your MOQ ?
A3:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q4: Could I use our own logo, label and package?
A4: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
Q5: What are the payment terms?
A5: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
|
|
