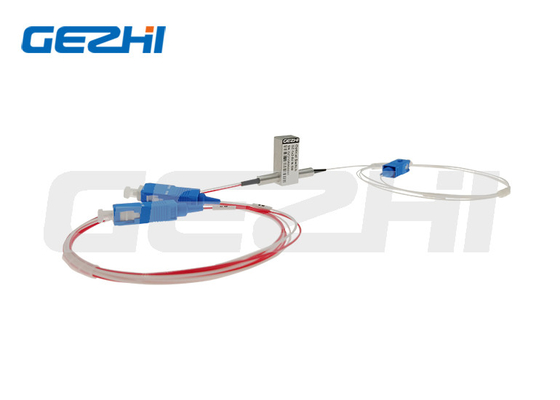

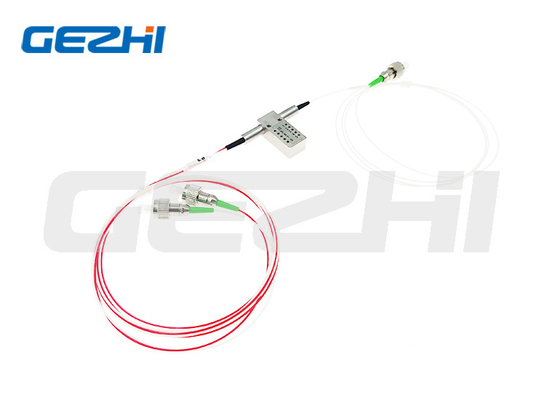

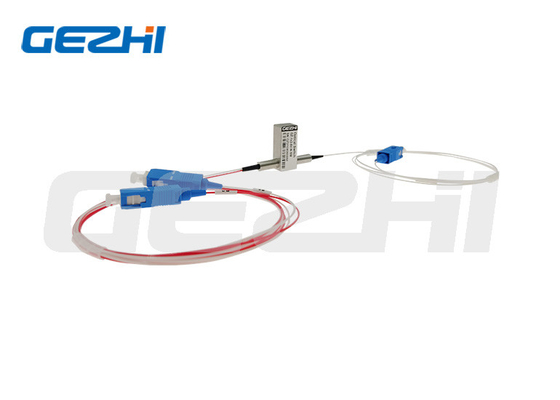

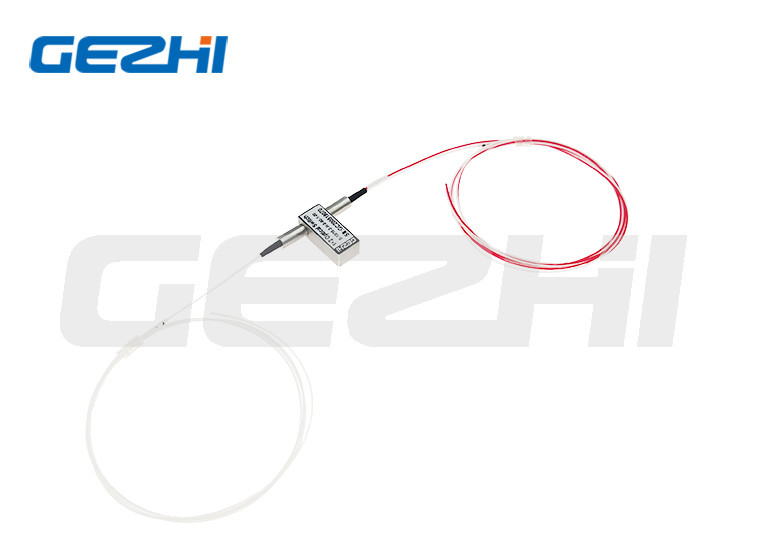

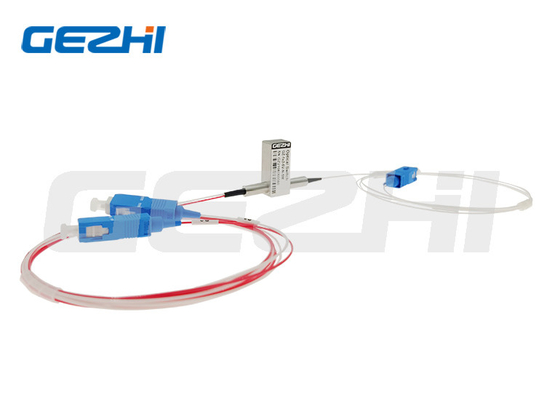

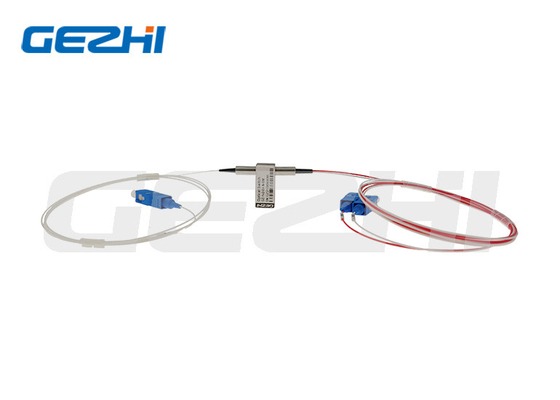

1*2 850/1260nm Mechanical Fiber Optic Switch Module
1x2 Optical Switches
This Optical switch configurate by 1x2 type with Three fibers and two states which connects optical channels by redirecting an incoming optical signal into a selected output fiber. Its working with Singlemode wavelength 1260~1650nm or Multimode 850/1310nm. This is using a opto-mechanical proprietary configuration and activated via an electrical control signal. GEZHI 1x2 mechanical Fiber Optical Switch offers ultra-high reliability and fast switching speed as well as bi-directional performance. The 1x2 mechanical Fiber Optical Switch are true switching solution for optical networking applications.
|
Features Fail-Safe Latching
Unmatched Low Cost
Low Optical Distortions Epoxy-Free Optical Path
High Reliability
|
Applications Channel Blocking Configurable Add/Drop
System Monitoring
Instrumentation
|
Specification
| Parameters | Specifications | Unit |
| Operating Wavelength | 1260~1620(SM) | nm |
| Insertion Loss | ≤1.0 | dB |
| Wavelength Dependent Loss | ≤0.25 | dB |
| Polarization Dependent Loss | ≤0.05 | dB |
| Temperature Dependent Loss | ≤0.20 | dB |
| Return Loss | SM≥50 | dB |
| Cross Talk | SM≥55 | dB |
| Switch Time | ≤8 | ms |
| Repeatability | ≤±0.02 | dB |
| Durability | ≥107 | times |
| Operating Voltage | 3 or 5 | V |
| Switch Type | Non-Latching/Latching | |
| Operating Temperature | －20~＋70 | ℃ |
| Storage Temperature | －40~＋85 | ℃ |
| Optical Power | ≤500 | mW |
| Dimension | 27.0L×12.5W×8.4H | mm |
Pins
| Type | Optical Route | Electric Drive | State Sensor | ||||||
| 1×2 | Pin 1 | Pin 5 | Pin 6 | Pin 10 | Pin 2-3 | Pin 3-4 | Pin 7-8 | Pin 8-9 | |
| Non-Latching | CUT | -- | -- | -- | -- | Close | Open | Open | Close |
| P1-P2 | V＋ | -- | -- | GND | Open | Close | Close | Open | |
| Latching | CUT | -- | -- | GND | -- | Close | Open | Open | Close |
| P1-P2 | V＋ | GND | -- | -- | Open | Close | Close | Open | |
Order Information
GZ-1×2-13/15
| Mode | Wavelength | Voltage Type | Control Model | Fiber Type | Fiber Diameter | Fiber Length | Connector |
| S=SM M=MM |
85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm X=Others |
3=3V 5=5V |
L=Latching N=Non- Latching |
5=50/125 6=62.5/125 9=9/125 X=Others |
25=250um 90=900um 20=2.0mm 30=3.0mm X=Others |
1=1m 2=1.5m X=Others |
0=None X=Others |
