8F MPO(Female) To 4 LC Duplex Staggered Harness Cables

Name: 8F MPO(Female) To 4 LC Duplex Staggered Harness Cables
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 8F MPO(Female) - LC Staggered Harness Cables
Price: Negotiable USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	8F MPO(Female) - LC Staggered Harness Cables
MOQ:	1pc
Price:	Negotiable
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Product Name:

8F MPO(Female) - LC Staggered Harness Cables

Connector:

MPO(Female) To LC

Fiber Cores:

Certification:

Telcordia GR-1435-CORE Compliant

Application:

Data Center,The Optical Fiber To The Building,Fiber Equipment,Etc

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

4 LC Duplex Staggered Harness Cables

4 LC Duplex MPO Harness Cables

Product Description

8F MPO(Female) To 4 LC Duplex Staggered Harness Cables

Product Description

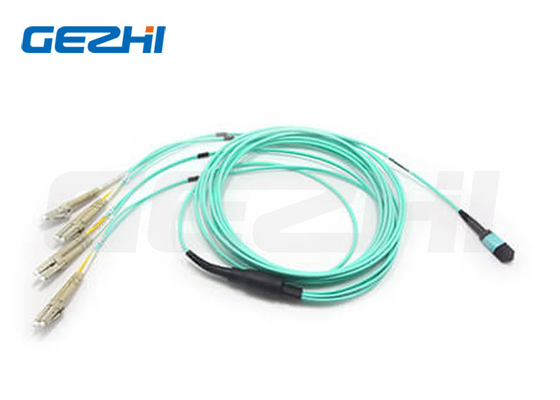

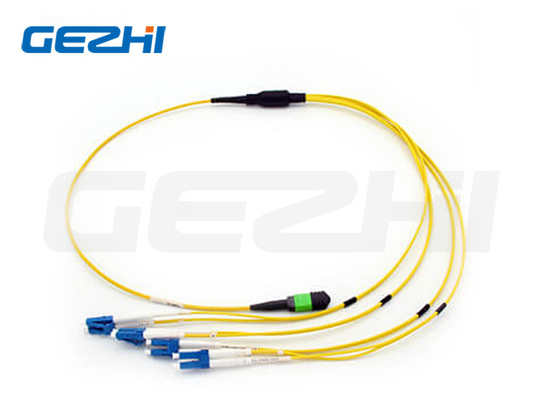

8 Cores MPO Female to 4 LC Duplex( 4xLC uniboot;8 LC Simplex) Staggered harness Cables assemblies.MPO- LC/SC/FC/ST Staggered harness Cables are terminated with MPO and LC/SC/FC/ST connector on both ends. Those fanout cables come with step length(staggered 30mm) according to application demand. The 8pcs(4pcs for LC uniboot;8 LC Simplex) fanout cables are optimized for 40G QSFP+ PLR4 to 10G SFP+ LR optics direct connection and high-density data center applications. have same length. It's specifically designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

Specification

8F MPO- LC Staggered harness Cables’s Specification:

Spec items.	Single mode (APC 8-degree polished)	Multimode (PC Flat polish)
Insertion loss (MPO) (IEC 61300-3-34)	Standard loss:≤0.75dB(max), ≤0.35dB(Typical) Super Low loss:≤0.35dB(max), ≤0.20dB(Typical)	Standard loss:≤0.6dB(max), ≤0.35(Typical) Super Low loss:≤0.35dB(max) , ≤0.20dB(Typical)
Insertion loss (LC) (IEC 61300-3-6)	≤0.3dB	≤0.3dB
Return loss(MPO)	≥60dB(8degree polishing)	≥25dB
Return loss(LC)	APC≥60dB; UPC≥50dB	≥35dB
Durability	<0.3dBtypical change, 200 matings
Interchangeability	≤0.2dB
Tensile strength	>70N
Operating Temperature	-40 to + 85°C

MPO Connector's Details:

Connector	Fiber Channel

MPO Female Connectors	8 Fibers
Note: Female connector need to connect with male connector type.

Connector

Reference

Housing Details

MPO Single Mode

IEC 61754-7

SM APC: Green connectors+black boot (Standard Loss MPO)

SM APC: Yellow connectors+black boot (Super low loss MPO)

MPO Multimode

IEC 61754-7

OM1&OM2 PC: Beige connectors+black boot (Standard Loss MPO)

OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MPO)

OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MPO)

· Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant

· Structured cabling per TIA-568-C

· 10G Fiber Channel Compliant

· 40G and 100G IEEE 802.3

Other connectors’ Industrial Standard:

SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.

LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.

FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973

ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973 Etc.

E2000: IEC61754-15

Available for

G657A1 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000

G657A2/B2 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000

G657B3 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000

OM1 62.5/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000

OM2 50/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000

OM3 50/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000

OM4 50/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000

OM5 50/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000

MPO End-Face 3D Interference Index

Item (IEC-61300-3-30)			Minimum	Maximum
Radius of curvature (mm)	ROC-X(ABS)		2000
	ROC-Y(ABS)		50mm
Angle	Angle-X		-0.2°	-0.2°
	Angle-Y	APC	7.85°	8.15°
		PC	-0.2°	-0.2°
Fiber height (nm)			1000nm	3500nm
Max.DH.All Fiber:			-300nm	300nm
DH.Adj:			-300nm	300nm
DH.Ave Fiber:			-300nm	300nm
Core Dip:	SM		N/A	N/A
	MM		-200nm	300nm

LC End-Face Geometry 3D Interference Index

Items	Connector	PC End-face	APC End-face
Radius of Curvature	SC/FC/ST	10~25 mm	5~12 mm
	LC/MU	7~25 mm	5~15 mm
Apex Offset		≤50 um
Fiber Spherical Height		+/- 100 nm
Angular Offset		------	8°± 0.5°

LC End-face Quality (SM)

Zone	Range (μm)	Scratches	Defects	Reference
A: Core	0 to 25	None	None	IEC 61300-3-35:2015
B: Cladding	25 to 115	None	None
C: Adhesive	115 to 135	None	None
D: Contact	135 to 250	None	None
E: Rest of ferrule		None	None

LC End-face Quality (MM)

Zone	Range (μm)	Scratches	Defects	Reference
A: Core	0 to 65	None	None	IEC 61300-3-35:2015
B: Cladding	65 to 115	None	None
C: Adhesive	115 to 135	None	None
D: Contact	135 to 250	None	None
E: Rest of ferrule		None	None

Cable Drawing

Tags:

Products Details

Home Products

Patch Cable Series

8F MPO(Female) To 4 LC Duplex Staggered Harness Cables

All Category

8F MPO(Female) To 4 LC Duplex Staggered Harness Cables

Brand Name:	GEZHI or OEM
Model Number:	8F MPO(Female) - LC Staggered Harness Cables
MOQ:	1pc
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

GEZHI or OEM

Certification:

CE RoHS,ISO9001

Model Number:

8F MPO(Female) - LC Staggered Harness Cables

Product Name:

8F MPO(Female) - LC Staggered Harness Cables

Connector:

MPO(Female) To LC

Fiber Cores:

Certification:

Telcordia GR-1435-CORE Compliant

Application:

Data Center,The Optical Fiber To The Building,Fiber Equipment,Etc

Minimum Order Quantity:

1pc

Price:

Negotiable

Packaging Details:

Paper box

Payment Terms:

T/T, Western Union

Supply Ability:

5000pcs per month

Highlight:

4 LC Duplex Staggered Harness Cables

4 LC Duplex MPO Harness Cables

Product Description

8F MPO(Female) To 4 LC Duplex Staggered Harness Cables

Product Description

Specification

8F MPO- LC Staggered harness Cables’s Specification:

Spec items.	Single mode (APC 8-degree polished)	Multimode (PC Flat polish)
Insertion loss (MPO) (IEC 61300-3-34)	Standard loss:≤0.75dB(max), ≤0.35dB(Typical) Super Low loss:≤0.35dB(max), ≤0.20dB(Typical)	Standard loss:≤0.6dB(max), ≤0.35(Typical) Super Low loss:≤0.35dB(max) , ≤0.20dB(Typical)
Insertion loss (LC) (IEC 61300-3-6)	≤0.3dB	≤0.3dB
Return loss(MPO)	≥60dB(8degree polishing)	≥25dB
Return loss(LC)	APC≥60dB; UPC≥50dB	≥35dB
Durability	<0.3dBtypical change, 200 matings
Interchangeability	≤0.2dB
Tensile strength	>70N
Operating Temperature	-40 to + 85°C

MPO Connector's Details:

Connector	Fiber Channel

MPO Female Connectors	8 Fibers
Note: Female connector need to connect with male connector type.

Connector

Reference

Housing Details

MPO Single Mode

IEC 61754-7

SM APC: Green connectors+black boot (Standard Loss MPO)

SM APC: Yellow connectors+black boot (Super low loss MPO)

MPO Multimode

IEC 61754-7

OM1&OM2 PC: Beige connectors+black boot (Standard Loss MPO)

OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MPO)

OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MPO)

· Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant

· Structured cabling per TIA-568-C

· 10G Fiber Channel Compliant

· 40G and 100G IEEE 802.3

Other connectors’ Industrial Standard:

SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.

LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.

FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973

ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973 Etc.

E2000: IEC61754-15

Available for

G657A1 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000

G657A2/B2 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000

G657B3 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000

OM1 62.5/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000

OM2 50/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000

OM3 50/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000

OM4 50/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000

OM5 50/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000

MPO End-Face 3D Interference Index

Item (IEC-61300-3-30)			Minimum	Maximum
Radius of curvature (mm)	ROC-X(ABS)		2000
	ROC-Y(ABS)		50mm
Angle	Angle-X		-0.2°	-0.2°
	Angle-Y	APC	7.85°	8.15°
		PC	-0.2°	-0.2°
Fiber height (nm)			1000nm	3500nm
Max.DH.All Fiber:			-300nm	300nm
DH.Adj:			-300nm	300nm
DH.Ave Fiber:			-300nm	300nm
Core Dip:	SM		N/A	N/A
	MM		-200nm	300nm

LC End-Face Geometry 3D Interference Index

Items	Connector	PC End-face	APC End-face
Radius of Curvature	SC/FC/ST	10~25 mm	5~12 mm
	LC/MU	7~25 mm	5~15 mm
Apex Offset		≤50 um
Fiber Spherical Height		+/- 100 nm
Angular Offset		------	8°± 0.5°

LC End-face Quality (SM)

Zone	Range (μm)	Scratches	Defects	Reference
A: Core	0 to 25	None	None	IEC 61300-3-35:2015
B: Cladding	25 to 115	None	None
C: Adhesive	115 to 135	None	None
D: Contact	135 to 250	None	None
E: Rest of ferrule		None	None

LC End-face Quality (MM)

Zone	Range (μm)	Scratches	Defects	Reference
A: Core	0 to 65	None	None	IEC 61300-3-35:2015
B: Cladding	65 to 115	None	None
C: Adhesive	115 to 135	None	None
D: Contact	135 to 250	None	None
E: Rest of ferrule		None	None

Cable Drawing
