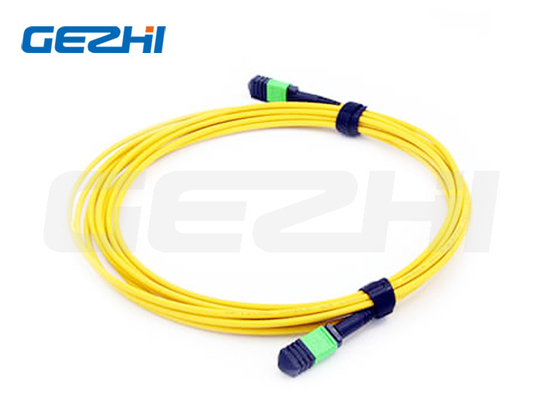

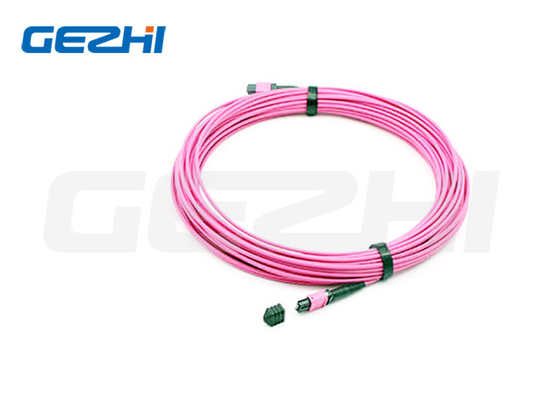

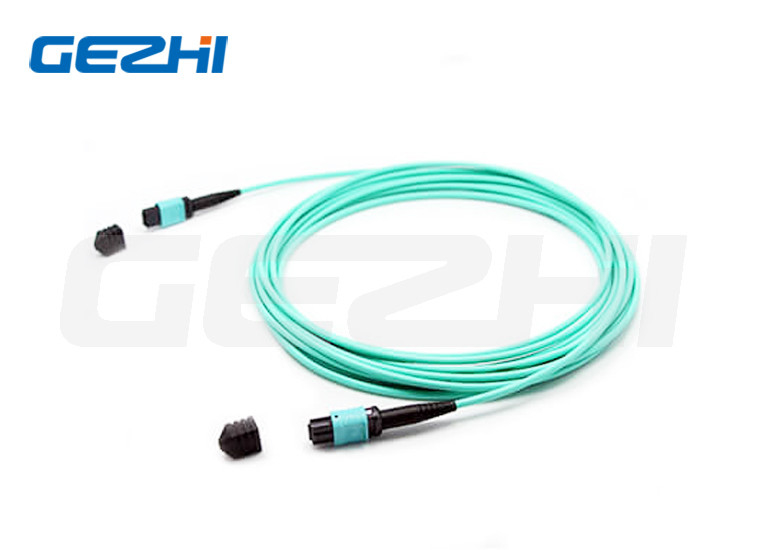

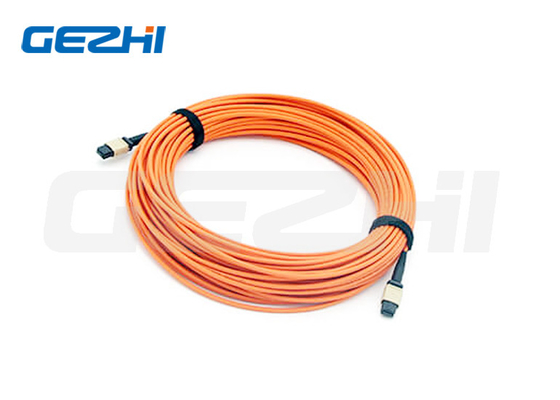

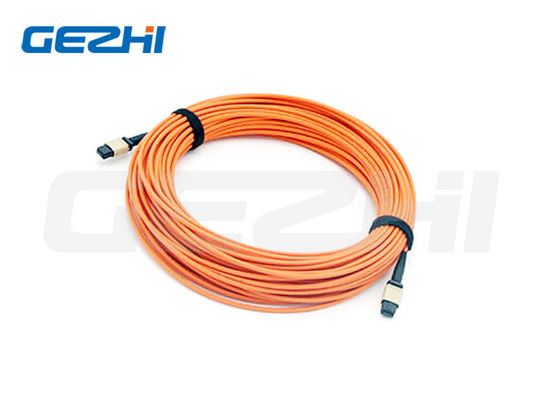

12F MPO(Female) - MPO(Female) 3.0mm LSZH Fiber Patch Cable / Trunk Cable
Product Description
MPO connector on both ends. MPO Patch cable/trunk cables connect MPO modules together as a permanent link. The Patch cable/trunk cables are available with 12, 24, 48,60,72 ,96,144fibers. Support speeds up to 10/40/100Gbps data center solutions. They are typically adopted to interconnect cassettes, panels or ruggedized MPO fan-outs, and to facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments. Besides, MPO also provides much flexibility and convenience once you have to change the connector style in the patch panels. Instead of changing the connector on the cable trunk, just installing a new cassette with the new connector style on the cross-connect side of the patch panel.
Features
1.Low insertion loss, high return loss
2.MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
3.Economical solution for mass-termination of fiber
4.Designed for low loss and standard loss SM and MM applications
5.Ruggedized round cable, oval cable and bare ribbon options available
6.Color coded housings available to differentiate fiber type, polish type and/or connector grade
7.Good in repeatability and exchangeability
Application
1.Data communication network.
2.Optical System Access network.
3.Storage area networking fiber channel.
4.High density architectures.
Specification
| Spec items. | Single mode (APC 8-degree polished) | Multimode (PC Flat polish) |
|
Insertion loss (MPO) (IEC 61300-3-34) |
Standard loss:≤0.75dB(max), ≤0.35dB(Typical) Super Low loss:≤0.35dB(max), ≤0.20dB(Typical) |
Standard loss:≤0.6dB(max), ≤0.35(Typical) Super Low loss:≤0.35dB(max) , ≤0.20dB(Typical) |
| Return loss(MPO) | ≥60dB(8degree polishing) | ≥25dB |
| Durability | <0.3dBtypical change, 200 matings | |
| Interchangeability | ≤0.2dB | |
| Tensile strength | >70N | |
| Operating Temperature | -40 to + 85°C | |
MPO Connector Types
| Connector | Fiber Channel |
| MPO Female Connectors | 12 Fibers |
| Note: Female connector need to connect with male connector type. | |
MPO products’ Details& Standard
| Connector | Reference | Housing Details |
| MPO Single Mode | IEC 61754-7 |
SM APC: Green connectors+black boot (Standard Loss MPO) SM APC: Yellow connectors+black boot (Super low loss MPO) |
| MPO Multimode | IEC 61754-7 |
OM1&OM2 PC: Beige connectors+black boot (Standard Loss MPO) OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MPO) OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MPO) |
· Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
· Structured cabling per TIA-568-C
· 10G Fiber Channel Compliant
· 40G and 100G IEEE 802.3
| Fiber Count | OD(mm) |
Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load(N/100mm) |
Minimum Bending Radius(MM) |
| 12 | 3.0±0.15 |
Short-term: 180； Long-term: 90 |
Short-term: 500； Long-term: 150 |
Static:10D Dynamic:20D |
MPO End-Face 3D Interference Index
| Item (IEC-61300-3-30) | Minimum | Maximum | ||
| Radius of curvature (mm) | ROC-X(ABS) | 2000 | ||
| ROC-Y(ABS) | 50mm | |||
| Angle | Angle-X | -0.2° | -0.2° | |
| Angle-Y | APC | 7.85° | 8.15° | |
| PC | -0.2° | -0.2° | ||
| Fiber height (nm) | 1000nm | 3500nm | ||
| Max.DH.All Fiber: | -300nm | 300nm | ||
| DH.Adj: | -300nm | 300nm | ||
| DH.Ave Fiber: | -300nm | 300nm | ||
| Core Dip: | SM | N/A | N/A | |
| MM | -200nm | 300nm | ||
Cable Drawing
Length Tolerance
| Overall Length(L)(m) | length of tolerance(cm) |
| 0<L<1 | +5/-0 |
| 1<L<10 | +10/-0 |
| 10<L<40 | +15/-0 |
| 40<L | +0.5% x L/-0 |
Pre-terminated MPO Technology-Polarity
AVAILABILITY
1.Ribbon and bundle cable available;
2.Patch cord, pigtail cable assemblies available.
3.MT-MT ribbon patch cord is available.
4.MPO Loopback available
5.HD Data center cabling connection.
|
|
