| Brand Name: | GEZHI or OEM |
| Model Number: | CWDM 10G SFP+ ZR 80km |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

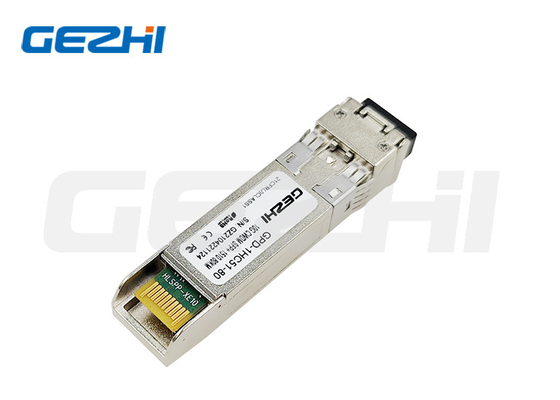

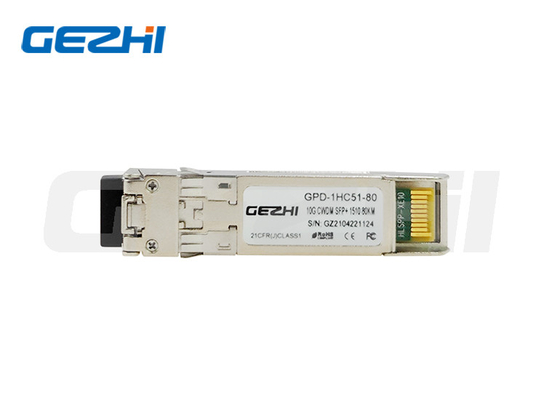

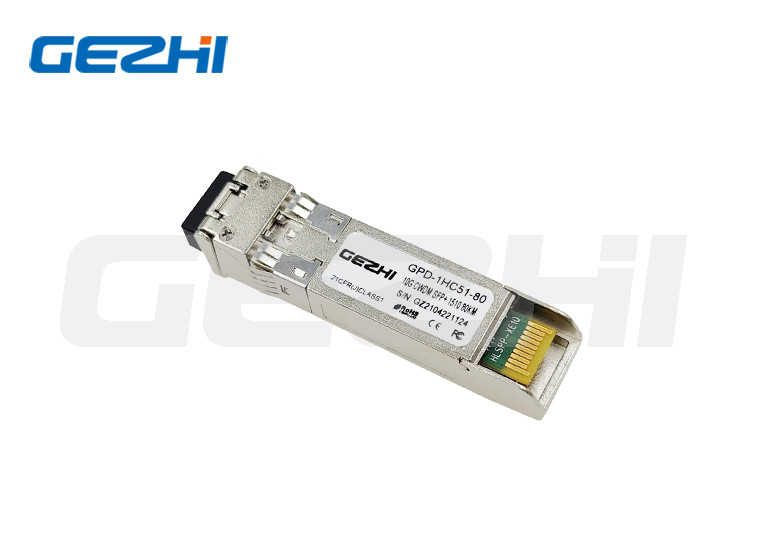

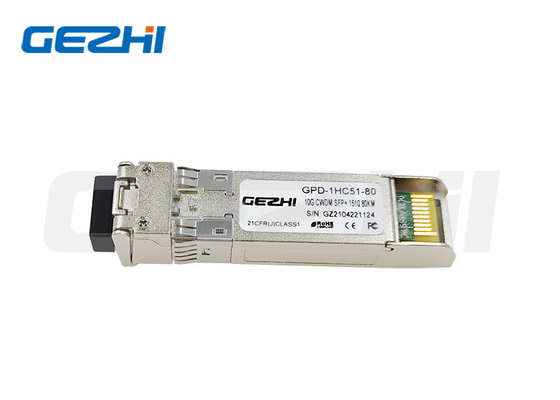

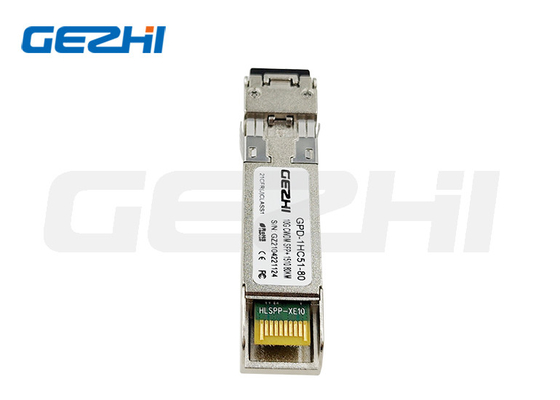

Data-rate of 10Gbps CWDM SFP+ ZR 80km 1490nm SFP Optical Connector Module EML LD
Description
The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 80km transmission distance with SMF.
The transceiver consists of three sections: an uncooled CWDM DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.
Features
Data-rate of 11.3Gbps operation
9 CWDM DFB wavelengths laser and PIN photodetector for80km transmission
Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Digital Diagnostic Monitoring:Internal Calibration or External Calibration
Compatible with SONET OC-24-LR-1
Compatible with RoHS
+3.3V single power supply
Operating case temperature:Standard : 0 to +70°C
Application
Gigabit Ethernet
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems
Dimension
Ordering Information
| P/N | Product Description | Date Rate | Reach | Wavelength | Transmitter | Receiver |
| GPD-1HCxx-40 | SFP+ CWDM | 10G | 40km | 1470~1610 | EML | PIN |
| GPD-1HCxx-80 | SFP+ CWDM | 10G | 80km | 1470~1610 | EML | APD |
| GPD-1HCxx-T1 | SFP+ CWDM | 10G | 100km | 1470~1610 | EML | APD |
| GPD-1HCxx-10 | SFP+ CWDM | 10G | 10km | 1270~1610 | DFB | PIN |
| GPD-1HCxx-40 | SFP+ CWDM | 10G | 40km | 1270~1370 | DFB | PIN |
| GPD-1HCxx-60 | SFP+ CWDM | 10G | 60km | 1270~1330 | DFB | APD |
|
|
