| Brand Name: | GEZHI or OEM |
| Model Number: | MPO 100G 850nm SR |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

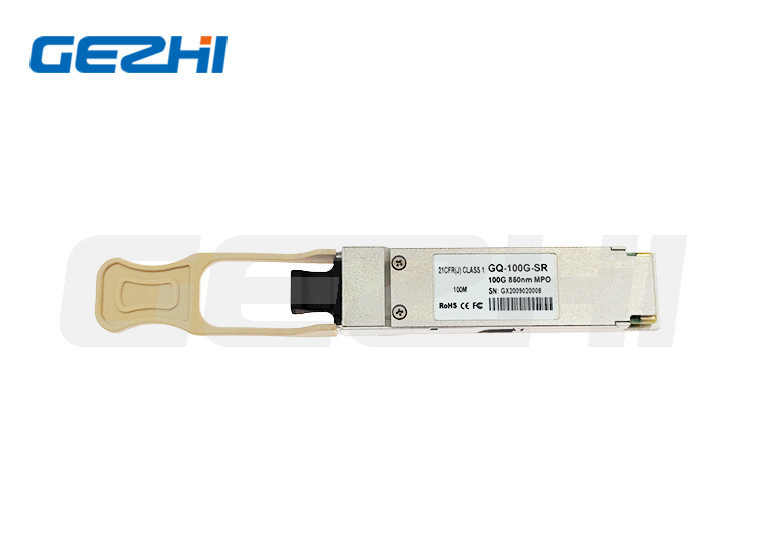

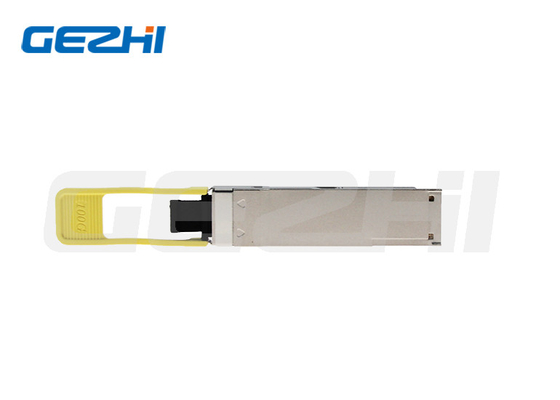

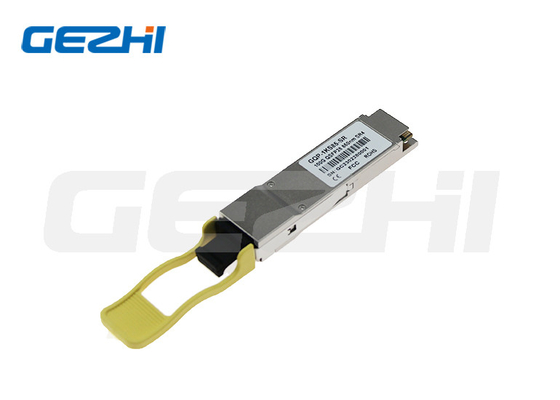

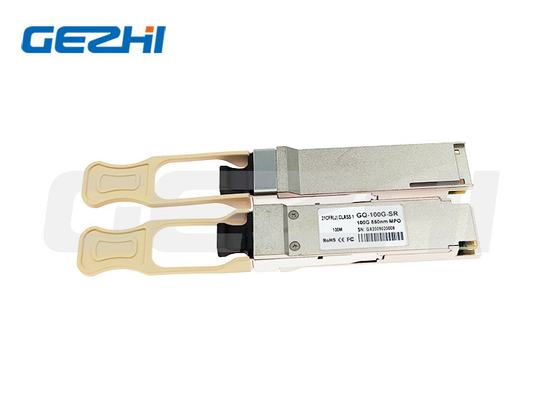

MPO 100G 850nm SR Optical Transceiver Module DDM 100M QSFP28 support OEM
Product Description
The QSFP+ module adopts 12 Fibers MTP/MPO Male connectors, reaching a link up to 150m over OM4 MMF (100m over OM3). This transceiver is compliant with QSFP+ MSA, IEEE 802.3ba 40GBASE-SR4 and breakout to 4x10GBASE-SR standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, campus and computing networks, interconnections within and between switches, routers, NICs and transport equipment.
QSFP-40G-SR4 Compatible 40GBASE-SR4 QSFP+ Optical Transceiver Module (MMF, 850nm, 150m, MTP/MPO, DOM)
Product Features
MTP/MP0 optical connector
Single +3.3V power supply
Hot-pluggable QSFP28 MSA form factor
Up to 100m OM4 MMF Distance
4x28G Electrical Serial Interface (CEI-28G-VSR)
AC coupling of CML signals
Low power dissipation(Max:3.5W)
Built in digital diagnostic function
Operating case temperature range:0℃ to 70℃
Compliant with 100GBASE-SR4
I2C Communication Interface
Applications
100GBASE-SR4
Infiniband QDR/DDR/SDR
100G Datacom connections
GZ-QSFP-40G-SR4
|
Item |
Description |
|---|---|
| Transceiver form factor | QSFP28 |
| Transmission speed | 100GE |
| Center wavelength (nm) | 850 |
| Standards compliance | 100GBASE-SR4 |
| Connector type | MPO/PC (8-strand or 12-strand, type B, female connector) |
| Applicable cable and maximum transmission distance |
|
| Transmit power (dBm) | -7.6 to +2.4 |
| Maximum receiver sensitivity (dBm) | -5.4 |
| Overload power (dBm) | 2.4 |
| Extinction ratio (dB) | 3.0 |
| Operating temperature | 0°C to 70°C (32°F to 158°F) |
| Part number | GZ-QSFP28-100G-SR4 |
OEM and ODM
OEM/ODM order is available.
Guarantee
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
What we supply
We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with most of brands. If more details, please contact us.
|
|
