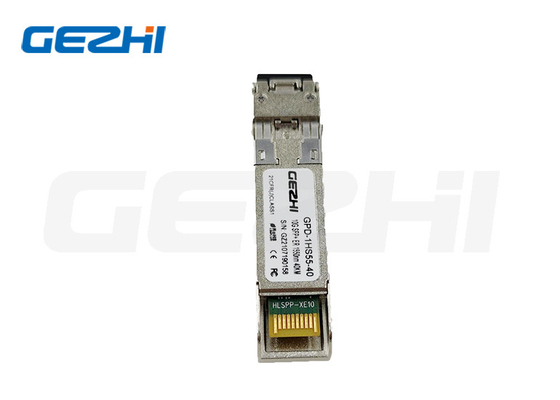

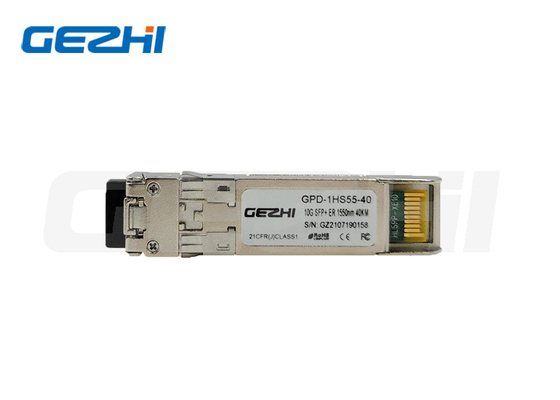

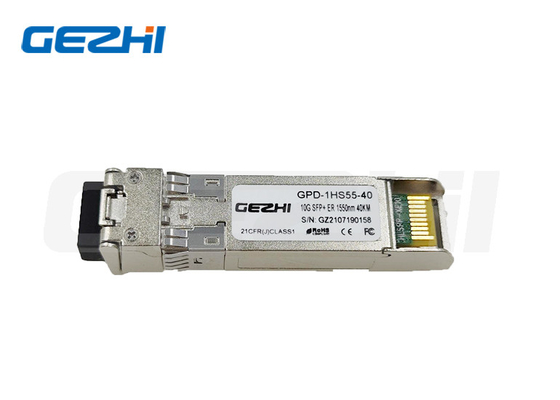

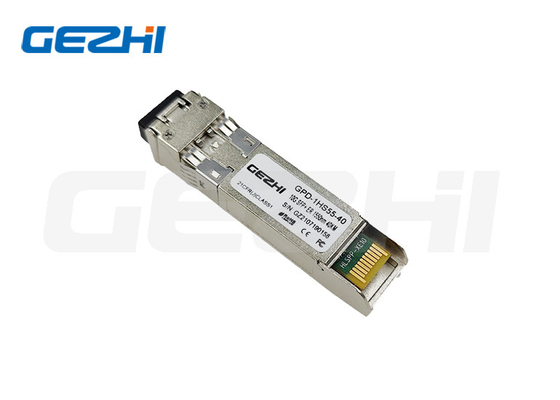

SFP-10G-ER40 Single Mode 10G 40km SFP Transceiver Module 10G SFP+ 1550nm 40km
Product Description
SFP+ ER 40KM fiber optic transceiver is designed for use in 10-Gigabit Ethernet links up to 40km over single mode fiber. The module consists of 1550 EML Laser, InGaAs PIN and Preamplifier in a high-integrated optical sub-assembly. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF¬8472. The module data link up to 40km in 9/125um single mode fiber.
Features
Up to 11.1Gbps Data Links
Up to 40km transmission on SMF
EML transmitter and PIN receiver
Metal enclosure, for lower EMI
2-wire interface with integrated Digital Diagnostic monitoring
Hot-pluggable SFP+ footprint
Specifications compliant with SFF 8472
Compliant with SFP+ MSA with LC connector
Single 3.3V power supply
Case operating temperature range:0°C to 70°C
Power dissipation < 1.5 W
Application
10G Ethernet with FEC
10Gbps SONET/SDH ITU-T G.959.1 P1L1-2D2
10Gbps SONET/SDH ITU-T G.709
10G BASE-ZR/ZW
SFP footprint 80km 10G Fiber Channel
Product Specifications
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 1530 | 1570 | nm | ||
| Ave. output power (Enabled) | PAVE | -2 | 4 | dBm | 1 | |
| Side-Mode Suppression Ratio | SMSR | 30 | dB | |||
| Extinction Ratio | ER | 4 | dB | |||
| RMS spectral width | Δλ | 1 | nm | |||
| Dispersion penalty | TDP | 4 | dB | |||
| Relative Intensity Noise | RIN | -128 | dB/Hz | |||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | 1260 | 1600 | nm | |||
| Receiver Sensitivity @10.3G | -16 | dBm | 2 | |||
| Path Penalty | PP | 2 | dB | |||
| Overload | PAVE | +0.5 | dBm | |||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -18 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Measured with worst ER=5dB
2. PRBS 231 – 1 and BER<10-12
|
|
