| Brand Name: | GEZHI or OEM |
| Model Number: | GZ-10-SR |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

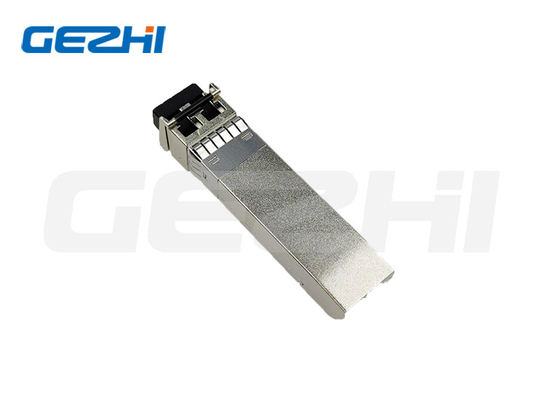

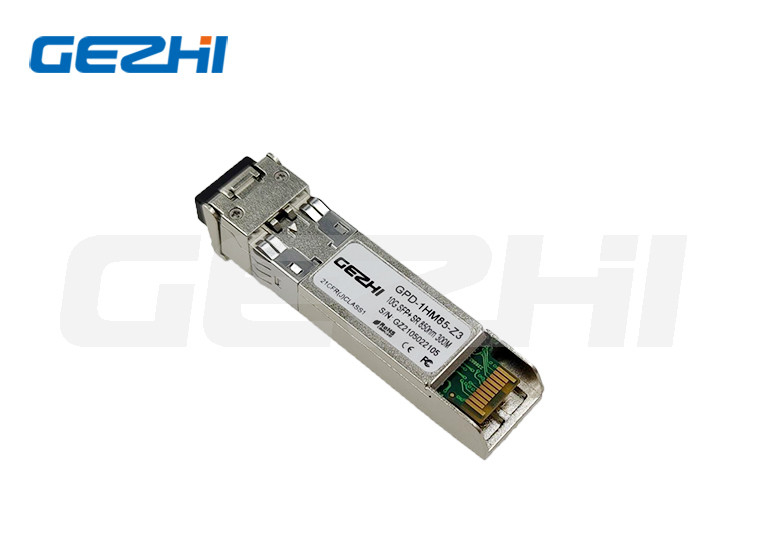

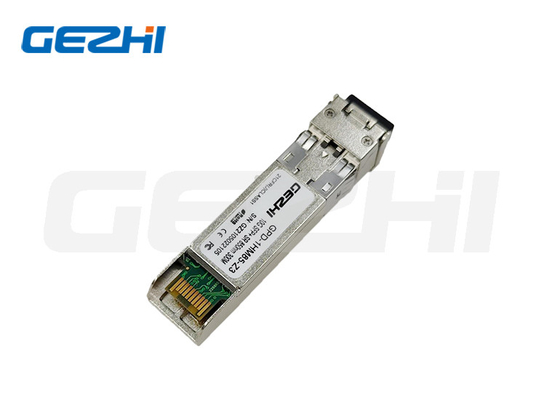

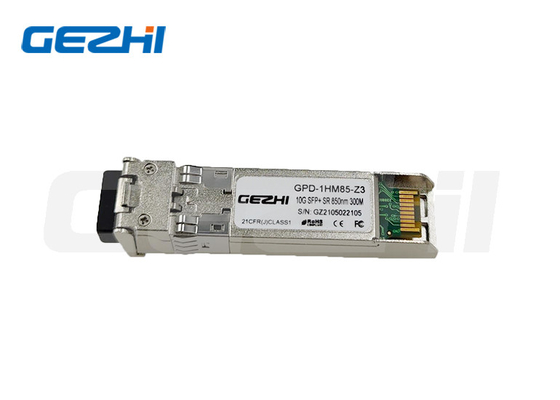

SFP-10G-SR Multimode fiber MMF 10G 850nm 300m SR SFP+ Transceiver
Product Description
SFP+ SR is specifically designed for the high performance integrated duplex data transmission over multi mode optical fiber.
This transceiver module is compliant with the Small Form-factor Pluggable Plus (SFP+) Multisource Agreement (SFF-8431 Rev4.1). This transceiver type is specifically optimized for transport of serial data at up to 10.3125 Gbps, with link characteristics complied with 10-Gigabit Ethernet 10GBASE-SR/SW base IEEE 802.3ae and 10G Fibre Channel.
Features
850nm VCSEL Transmitter
Data transfer rate: 10.3Gbps
Distance up to 300m
Single 3.3V Power supply and TTL Logic Interface
Duplex LC Connector
Compliant with MSA SFF-8431, IEEE 802.3ae
Power Dissipation: SFP+< 1W
Digital Diagnostic Monitoring Function
Operating Temperature: 0-70 Temp
Applications
10GBASE-SW/SR
10G Fiber Channel
Other Optical Link
10G SFP+ Transceiver
| Part Number | Application | Data Rate | Wavelength | Distance | Connector Type |
| GZ-SFP-10G-SR | SFP+ 10GBASE-SR | 10G | 850nm | 300m | LC |
| GZ-SFP-10G-LR | SFP+ 10GBASE-LR | 10G | 1310nm | 10km | LC |
| GZ-SFP-10G-LRM | SFP+ 10GBASE-LRM | 10G | 1310nm | 220m | LC |
| GZ-SFP-10G-ER | SFP+ 10GBASE-ER | 10G | 1550nm | 40km | LC |
| GZ-SFP-10G-ZR | SFP+ 10GBASE-ZR | 10G | 1550nm | 80km | LC |
Drawing
FAQ
Q1:Can I have a sample order? What is your MOQ?
|
|
