High Quality LC UPC Uniboot Connector With Switch Polarity ISO9001

Name: High Quality LC UPC Uniboot Connector With Switch Polarity ISO9001
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: GZ-LCCxxxx
Price: Negotiable USD
Availability: InStock

Brand Name:	GEZHI
Model Number:	GZ-LCCxxxx

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Fiber Count:

Duplex

Cable Diameter:

2.0mm

Insertion Loss:

≤0.25dB

Polish Type:

UPC

Durability:

>1000times

Operating Temp:

-40~85°C

Highlight:

LC UPC Uniboot Connector

Uniboot Connector With Switch Polarity

Product Description

Product Description:

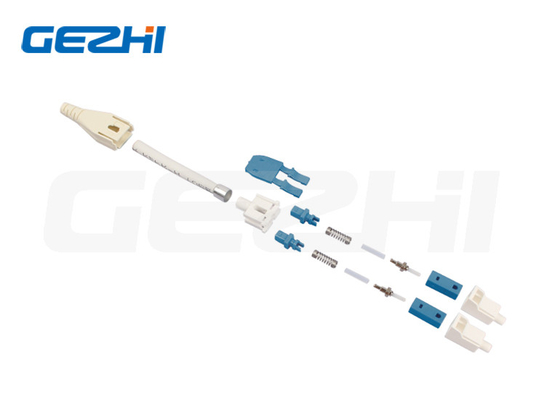

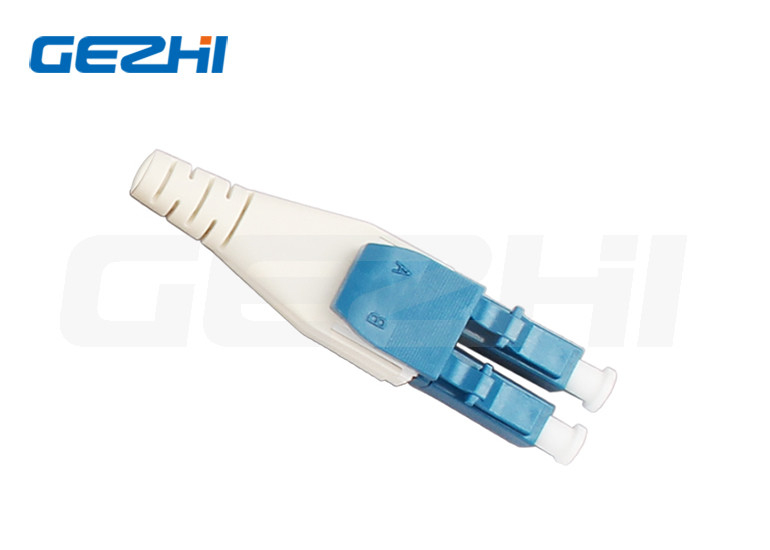

High quality LC/UPC Uniboot Connector With Switch Polarity

Uniboot Connector

We produce various of kinds of Single Mode and Multi-mode fiber optic connectors for ST, SC, FC, LC, E2000, MPO, MU and MTRJ applications. Both pre-assembled connector and connector kits are available. Each fiber optic connector is functionally tested before shipping.We can customize products according to your specifications you needed.

Features

◆Low insertion loss
◆Excellent mechanical capability
◆ High Stability Reliability
◆100% inspected for optical characteristics before shipment

Applications

◆Test Equipment
◆Telecommunication Networks
◆Local Area Networks (LANs)
◆Data Processing Networks
◆Premise Installations
◆Wide Area Networks (WANs)

Technical Parameters

Parameter	LC Uniboot Connector
	SM			MM
	PC	UPC	APC	PC
Insertion loss	≤0.25dB	≤0.25dB	≤0.25dB	≤0.25dB
Return loss	≥50dB	≥55dB	≥60dB	/
Operating wavelength	1310nm, 1550nm			850nm, 1300nm
Ferrule Concentricity	≤1um			≤4um

High Quality LC UPC Uniboot Connector With Switch Polarity ISO9001 0

FAQ

Q1:Can I have a sample order? What is your of LC/UPC Uniboot Connector?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms of LC/UPC Uniboot Connector?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time of LC/UPC Uniboot Connector?

A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?

A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
