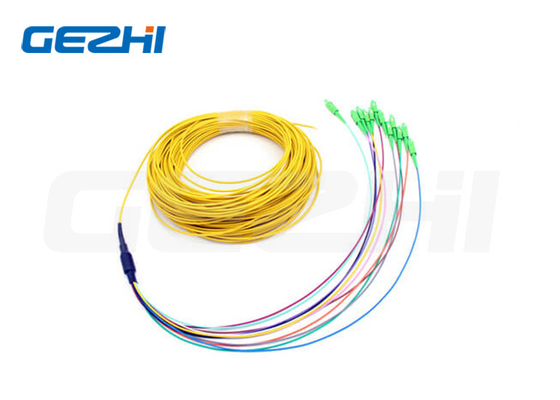

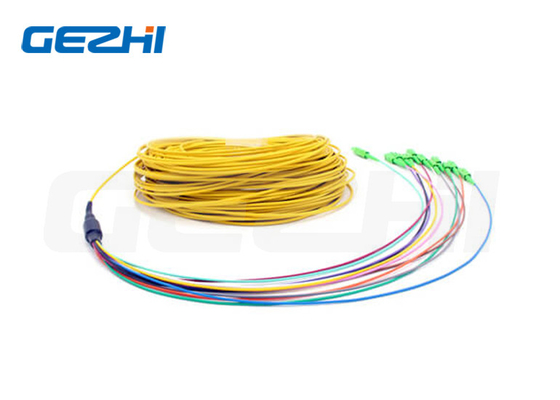

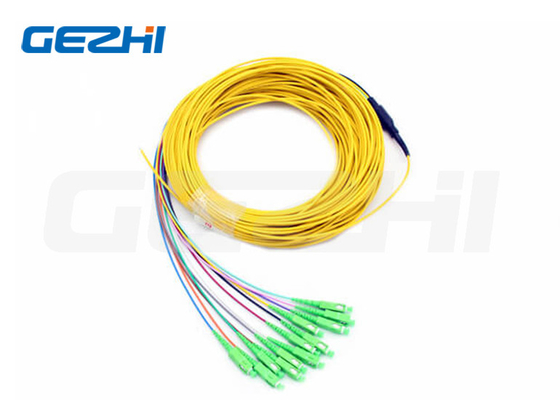

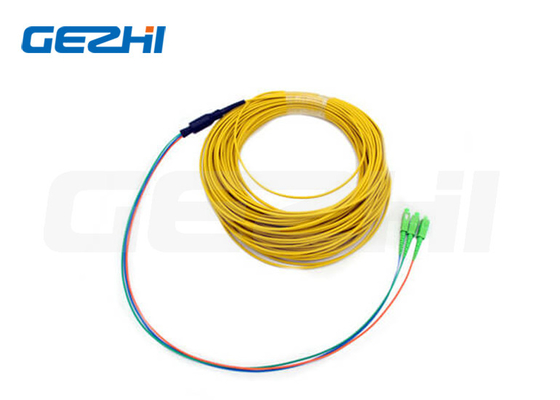

3 - 144F Pre - terminated Fanout Micro Fiber Optic Pigtails 850/1300nm Duplex Port

Name: 3 - 144F Pre - terminated Fanout Micro Fiber Optic Pigtails 850/1300nm Duplex Port
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: GZ-Pigtailsxxxx
Price: Negotiable USD
Availability: InStock

Brand Name:	GEZHI
Model Number:	GZ-Pigtailsxxxx

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Port:

Duplex

Wavelength:

850/1300nm

Connetor:

SC UPC To SC UPC

Fiber Grade:

G.651

Cable Jacket:

PVC

Application:

CATV Network

Highlight:

Micro Fiber Optic Pigtails

Pre - terminated Fiber Optic Pigtails

Product Description

Product Description:

3 - 144F Pre - terminated Fanout Micro Fiber Optic Pigtails

Fiber Pigtails

The 62.5/125μm OM1 multimode fiber optic cable is suitable for fast Ethernet, gigabit Ethernet and fiber channel applications, such as in data center, telecom room, server farms, cloud storage networks, and any place fiber jumper cables are needed.

This 62.5/125 OM1 multimode fiber optic cable is ideal for connecting 100/1000BASE-SX transceivers etc. for fast Ethernet, gigabit Ethernet and fiber channel applications.

Features

◆Low insertion loss
◆Excellent mechanical capability
◆ PVC jacket as default
◆100% inspected for optical characteristics before shipment

Applications

◆10G/40G/100G Ethernet connections
◆connect 10G SR, 10G LRM, SFP+ transceivers
◆connect 1000BASE-SX, SFP transceivers etc.

◆gigabit Ether- net and fiber channel applications.

Technical Parameters

Pramaters	Specifications
Insertion loss	≤0.3dB Mean (Standard)	Interchangeability	≤0.2dB
Return loss	SM UPC≥50dB SM APC≥60dB MM PC≥35dB	Vibration	≤0.2dB
Polarity	A(Tx) to B(Rx)	Maximum pulling force	100N

3 - 144F Pre - terminated Fanout Micro Fiber Optic Pigtails 850/1300nm Duplex Port 0

FAQ

Q1:Can I have a sample order? What is your of Fanout Pigtails?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms of Fanout Pigtails?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time of Fanout Pigtails?

A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?

A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
